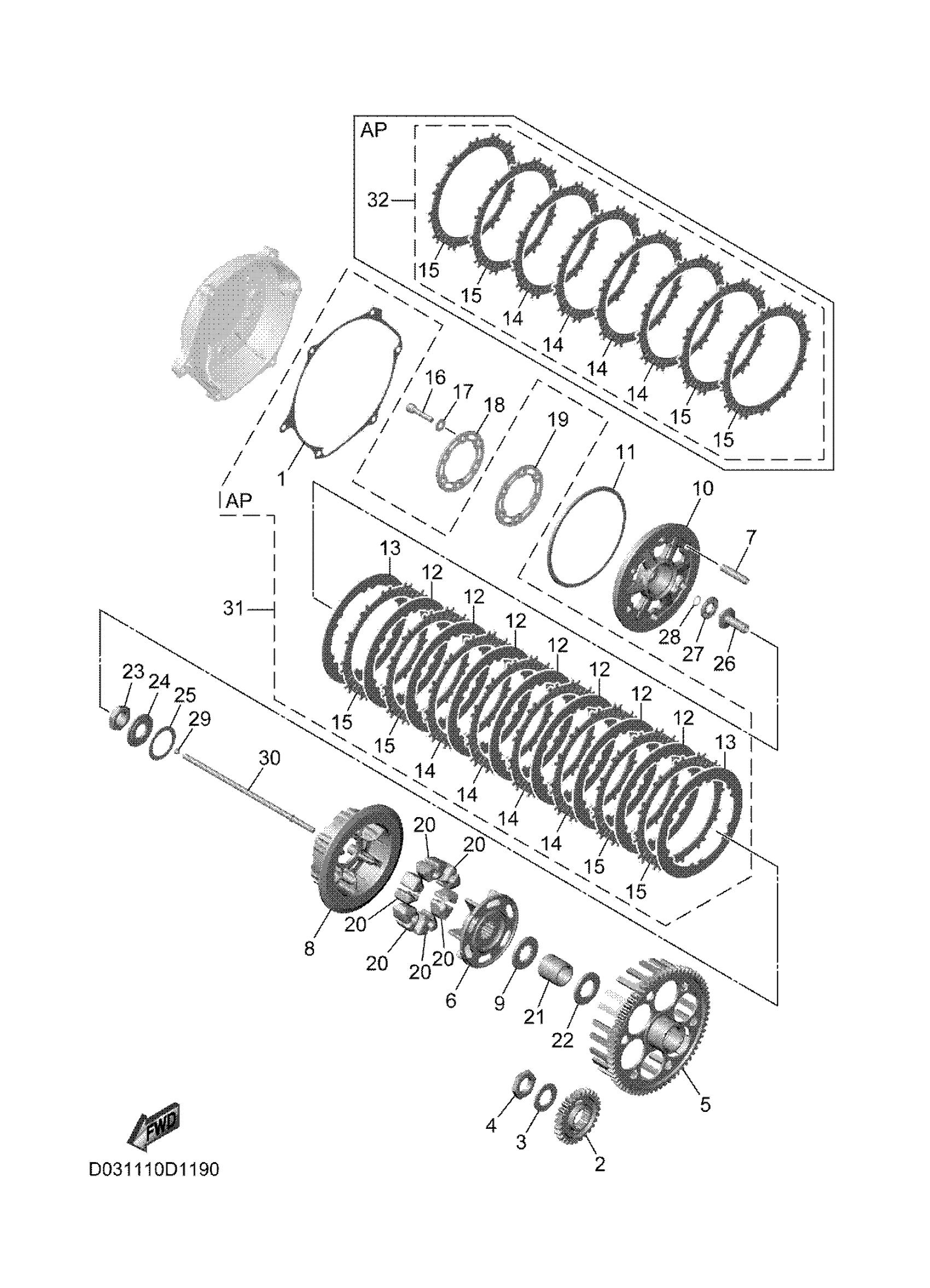

Yamaha YZ450FTSE (YZ450F 70TH ANNIVERSARY) D036 2026 CLUTCH Diagram

#

Description
Price

1

GASKET

BHR-15453-00-00

$15.99

2

GEAR, PRIMARY DRIVE

BHR-16111-00-00

$116.99

3

WASHER, PLATE(1HX)

90201-204K8-00

$10.49

4

NUT

90170-20014-00

$14.99

5

GEAR, PRIMARY DRIVEN

BHR-16151-00-00

$834.99

6

BOSS, CLUTCH

BHR-16371-00-00

$119.99

7

COLLAR

90387-0514T-00

$16.99

8

SLEEVE

D03-16172-00-00

Unavailable

9

WASHER

BHR-16144-00-00

$10.49

10

PLATE, PRESSURE 1

BHR-16351-00-00

$83.99

11

HOUSING, SPRING

D03-16335-00-00

Unavailable

12

PLATE, CLUTCH 1

BHR-16324-00-00

$9.49

13

PLATE, CLUTCH 2

BHR-16325-00-00

$10.49

14

PLATE, FRICTION 1

BHR-16320-00-00

$26.99

15

PLATE, FRICTION 2

BHR-16331-00-00

$26.99

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

RING,PRESSURE

D03-16718-00-00

Unavailable

19

SPRING, CLUTCH 2

D03-16334-00-00

Unavailable

20

ABSORBER

D02-16165-00-00

Unavailable

21

COLLAR 1

BHR-16116-00-00

Unavailable

22

WASHER, THRUST 1

BHR-16113-00-00

Unavailable

23

NUT

90179-18010-00

Unavailable

24

SPACER 3

D02-16183-00-00

Unavailable

25

WASHER, PLATE (2J2)

90201-32673-00

Unavailable

26

ROD, PUSH 1

BHR-16356-00-00

Unavailable

27

BEARING, THRUST(2FL)

93340-21209-00

Unavailable

28

CIRCLIP (4G0)

93440-10085-00

Unavailable

29

BALL

93501-04011-00

Unavailable

30

ROD, PUSH 2

D03-16357-00-00

Unavailable

31

CLUTCH PLATE KIT

D03-W001G-00-00

Unavailable

32

FRICTION PLATE KIT

BHR-W001M-00-00

Unavailable
