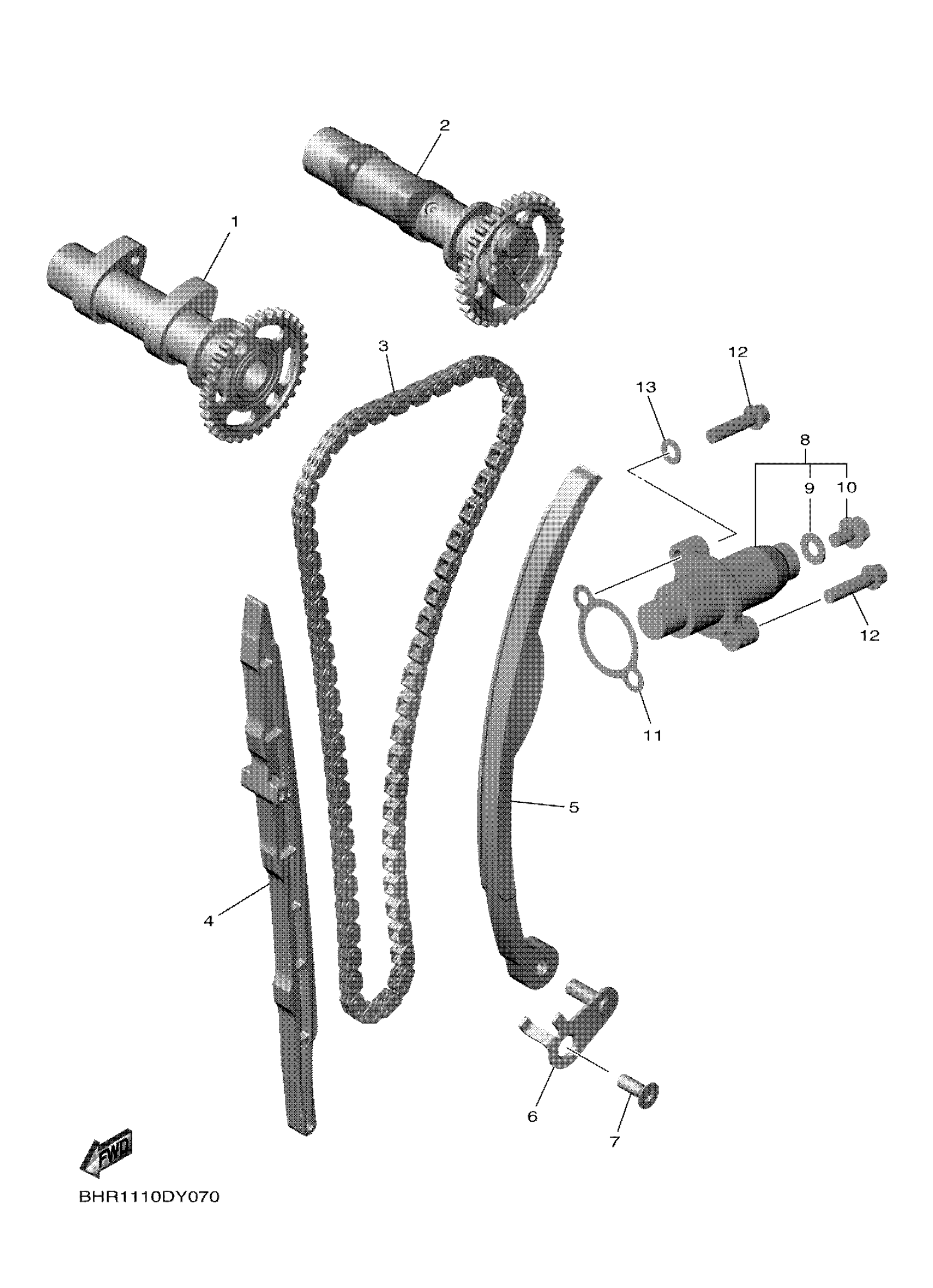

Yamaha YZ450FTSE (YZ450F 70TH ANNIVERSARY) D036 2026 CAMSHAFT & CHAIN Diagram

CAMSHAFT ASSY 1

BHR-12170-00-00

$336.99

CAMSHAFT ASSY 2

D03-12180-00-00

Unavailable

CHAIN

94591-79118-00

$47.99

DAMPER, CHAIN 1

B2W-12251-00-00

$20.99

DAMPER, CHAIN 2

33D-12252-01-00

Unavailable

PLATE, GUIDE STOPPER 1

1SL-12233-00-00

$32.99

SCREW, COUNTERSUNK

90151-06023-00

$8.49

TENSIONER ASSY, CAM CHAIN

B7B-12210-11-00

$143.99

GASKET

5SL-12214-00-00

$7.99

BOLT

5EL-12228-00-00

$5.49

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

GASKET 256113960000

90430-06014-00

Unavailable
