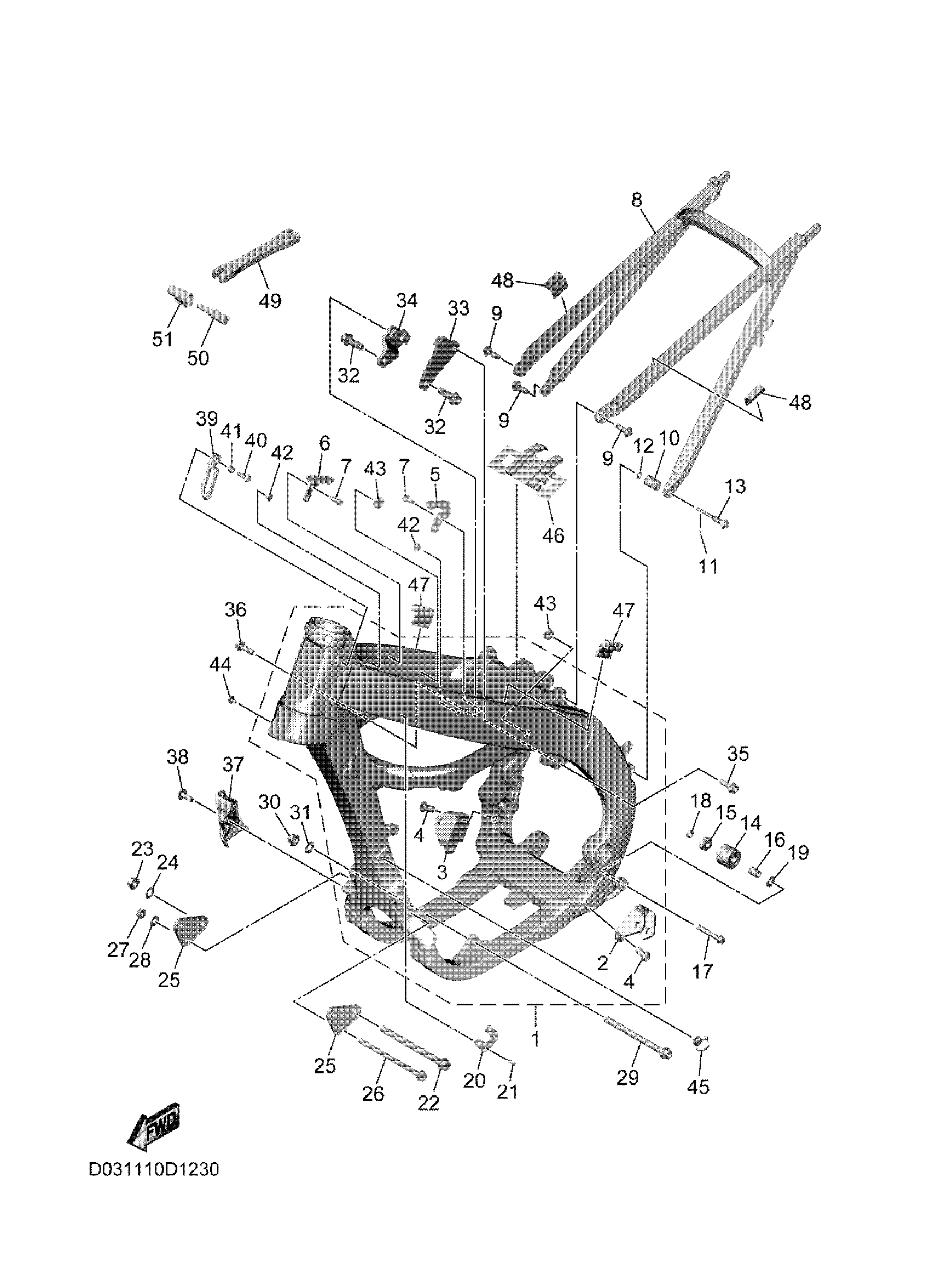

Yamaha YZ450FTL (YZ450F) D031 2026 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

D03-21101-00-00

Unavailable

2

BRACKET, FOOTREST

D02-21447-00-00

$70.99

3

BRACKET, FOOTREST

D02-21448-00-00

$70.99

4

SCREW

90149-10033-00

$5.60

5

BRACKET, AIR CLEAN

BHR-21147-00-00

$29.99

6

BRACKET, AIR CLEAN

BHR-21148-00-00

$29.99

7

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60

8

REAR FRAME COMP.

D03-21190-00-00

Unavailable

9

BOLT, FLANGE

90105-08230-00

$4.29

10

TENSIONER

D03-22178-00-00

Unavailable

11

PIN. COTTER

91490-16010-00

Unavailable

12

WASHER, PLATE(3GM)

90201-050T4-00

$4.77

13

BOLT

D03-21531-00-00

Unavailable

14

TENSIONER

BR9-22178-00-00

$36.99

15

BEARING (3X3)

93300-60804-00

$12.49

16

COLLAR(1NL)

90387-086N4-00

Unavailable

17

BOLT, FLANGE

90105-08232-00

Unavailable

18

NUT, U

95617-08100-00

Unavailable

19

WASHER, PLATE

90201-08043-00

Unavailable

20

BRACKET 1

BHR-23591-00-00

Unavailable

21

RIVET, BLIND (2YK)

90267-32146-00

Unavailable

22

BOLT, FLANGE

90105-10502-00

Unavailable

23

NUT(4KG)

90179-10658-00

Unavailable

24

WASHER, PLATE

90201-10045-00

Unavailable

25

BRACKET, FRONT LOWER 1

D03-21417-00-00

Unavailable

26

BOLT, FLANGE

90105-08299-00

Unavailable

27

NUT(4KM)

90179-08674-00

Unavailable

28

WASHER, PLATE

90201-08043-00

Unavailable

29

BOLT, FLANGE

90105-10176-00

Unavailable

30

NUT(4KG)

90179-10658-00

Unavailable

31

WASHER, PLATE

90201-10045-00

Unavailable

32

BOLT, FLANGE

90105-10189-00

Unavailable

33

BRACKET, REAR UPPER 1

D03-21425-00-00

Unavailable

34

BRACKET, REAR UPPER 2

D03-21426-00-00

Unavailable

35

BOLT, FLANGE

90105-08226-00

Unavailable

36

BOLT, FLANGE

90105-08143-00

Unavailable

37

PROTECTOR, ENGINE

BHR-21471-00-00

Unavailable

38

BOLT, FLANGE

90105-06170-00

Unavailable

39

HOLDER, WIRE

D03-21163-00-00

Unavailable

40

BOLT, FLANGE

90105-06219-00

Unavailable

41

COLLAR (8H6)

90387-07573-00

Unavailable

42

PLUG 288833190000

90338-07043-00

Unavailable

43

GROMMET

90480-12M25-00

Unavailable

44

BOLT(3DM)

90111-06009-00

Unavailable

45

CLAMP

90464-31002-00

Unavailable

46

DAMPER, LOCATING 1

BHR-24181-00-00

Unavailable

47

DAMPER, LOCATING 2

BR9-24182-00-00

Unavailable

48

DAMPER, LOCATING 3

BHR-24183-00-00

Unavailable

49

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable

50

CAP

18P-2467E-00-00

Unavailable

51

CASE, CAP

18P-2464V-01-00

Unavailable
