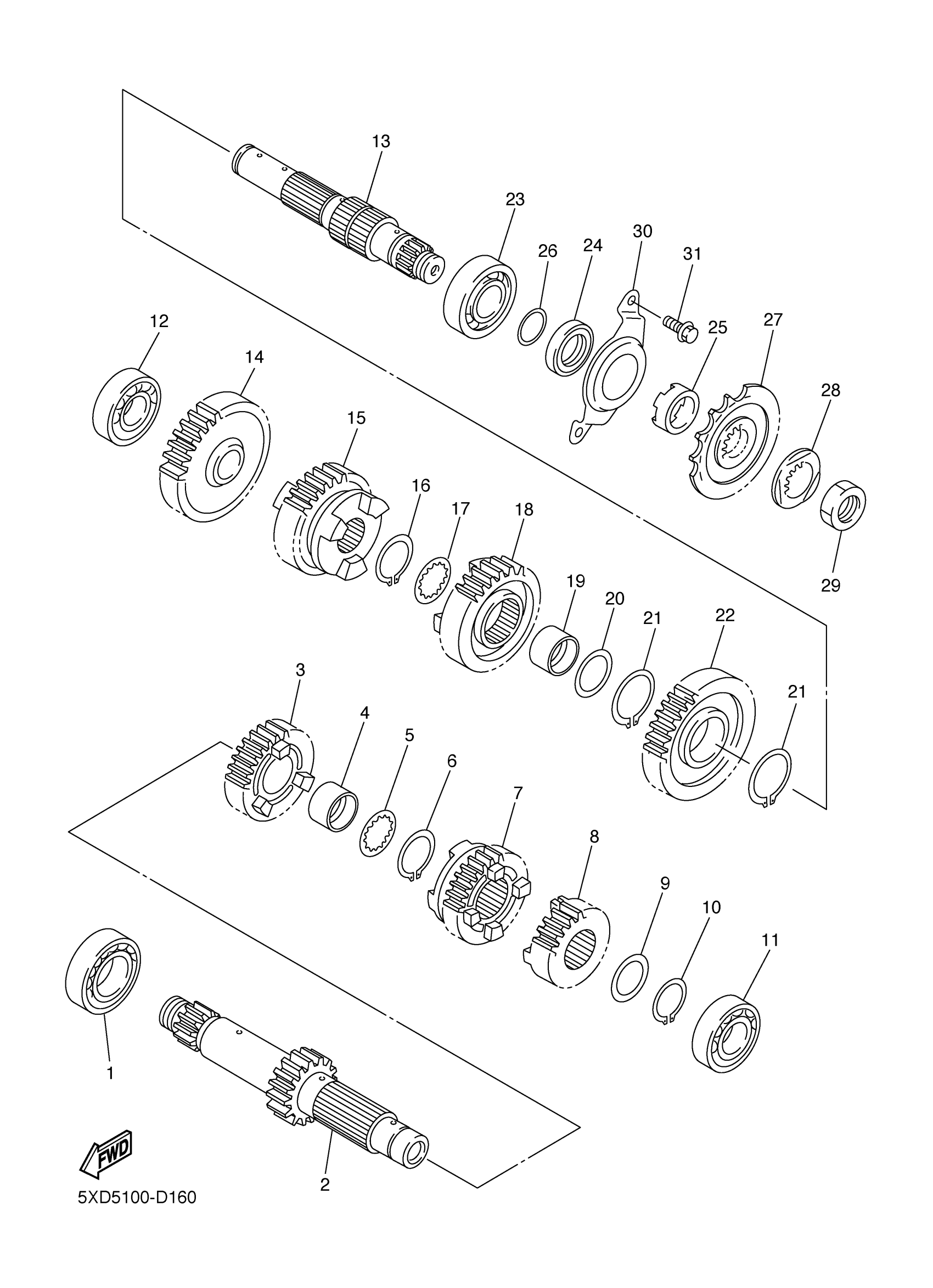

Yamaha YZ450FT (YZ450F) 5XD5 2005 TRANSMISSION Diagram

#

Description
Price

1

BEARING

93306-20532-00

$66.99

2

AXLE, MAIN

5TA-17411-20-00

Unavailable

3

GEAR, 4TH PINION

5TA-17141-20-00

Unavailable

4

COLLAR

90387-25008-00

$33.99

5

WASHER(3VD)

90209-21332-00

$7.49

6

CIRCLIP (4L0)

93440-25084-00

$5.60

7

GEAR, 3RD PINION

5TA-17131-20-00

$126.99

8

GEAR, 2ND PINION

5TA-17121-10-00

$79.99

9

WASHER, PLATE(2XJ)

90201-206L6-00

$8.49

10

CIRCLIP(1AR)

99009-20400-00

$8.49

11

BEARING (34L)

93306-00431-00

$41.99

12

BEARING (5Y1)

93306-00426-00

$42.99

13

DRIVE AXLE ASSY

5TA-17402-10-00

Unavailable

14

GEAR, 1ST WHEEL (27T)

5TA-17211-10-00

Unavailable

15

GEAR, 4TH WHEEL

5TA-17241-10-00

$140.99

16

CIRCLIP (4L0)

93440-25084-00

$5.60

17

WASHER(3VD)

90209-21332-00

$7.49

18

GEAR, 3RD WHEEL

5TA-17231-10-00

Unavailable

19

COLLAR

90387-25013-00

Unavailable

20

WASHER, PLATE

90201-253G3-00

Unavailable

21

CIRCLIP (3J3)

93440-30077-00

Unavailable

22

GEAR, 2ND WHEEL (25T)

5TA-17221-10-00

Unavailable

23

BEARING

93306-20593-00

Unavailable

24

OIL SEAL

93102-32480-00

Unavailable

25

COLLAR

90387-2513F-00

Unavailable

26

O-RING

93210-22298-00

Unavailable

27

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

28

WASHER, LOCK

90215-21003-00

Unavailable

29

NUT

90179-20001-00

Unavailable

30

PLATE, COVER

5GR-17471-10-00

Unavailable

31

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
