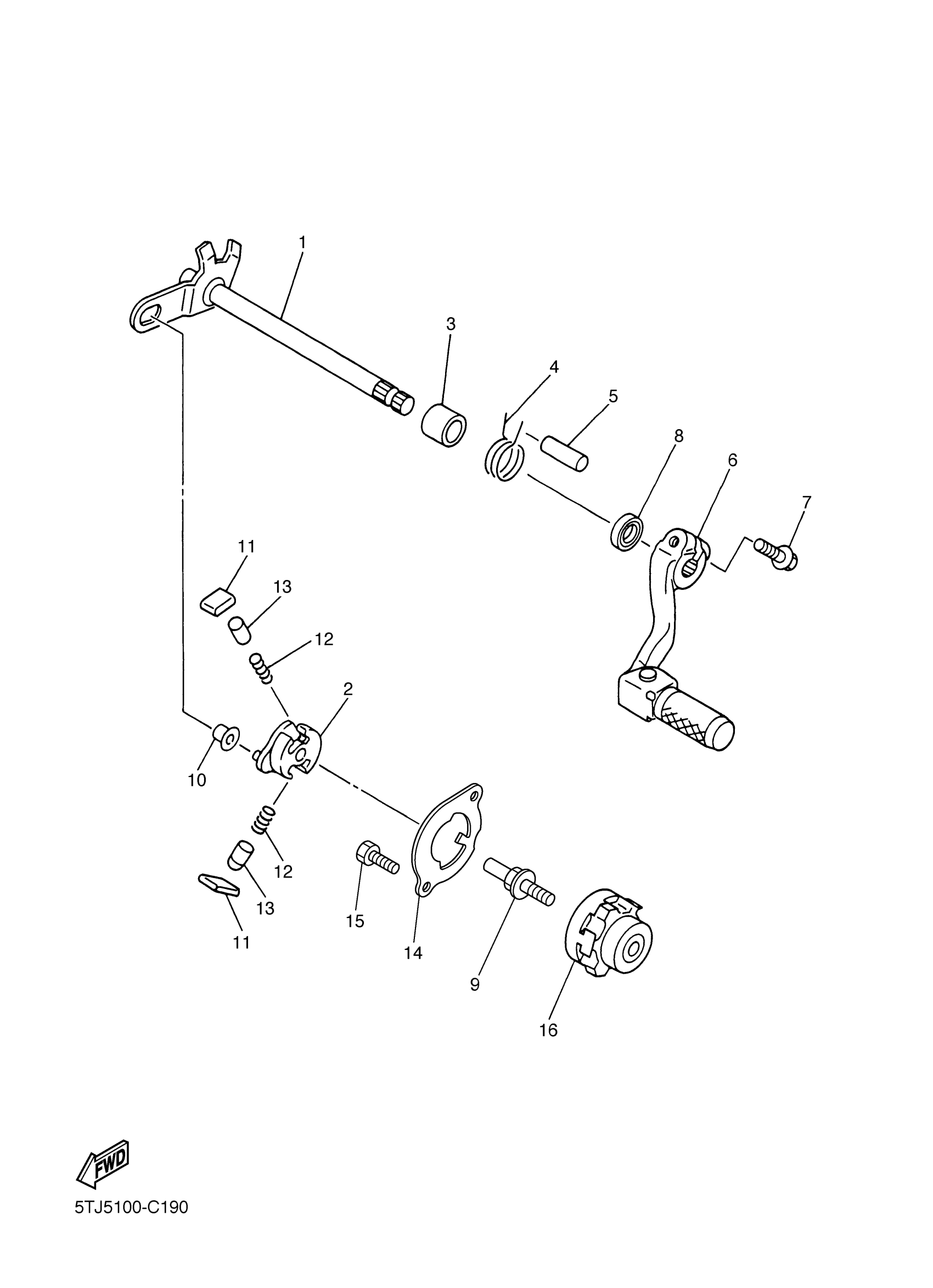

Yamaha YZ450FT (YZ450F) 5XD5 2005 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

5TJ-18101-00-00

Unavailable

2

LEVER, SHIFT 2

5MW-18122-01-00

$85.99

3

COLLAR

90387-12033-00

$7.49

4

SPRING, TORSION(4DA)

90508-291A8-00

$9.49

5

PIN, DOWEL

93608-33002-00

$15.99

6

SHIFT PEDAL ASSY

5TA-18110-00-00

$149.99

7

. BOLT, FLANGE

95027-06020-00

Unavailable

8

OIL SEAL (4G0)

93102-12224-00

$10.49

9

PIN, SHIFT

3XJ-18173-10-00

$19.99

10

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

11

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

12

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

13

PIN, PAWL

3XJ-18184-00-00

$15.49

14

GUIDE, SHIFT

5TJ-18172-00-00

$16.49

15

BOLT

90101-06042-00

$5.60

16

SEGMENT

4EW-18185-00-00

Unavailable
