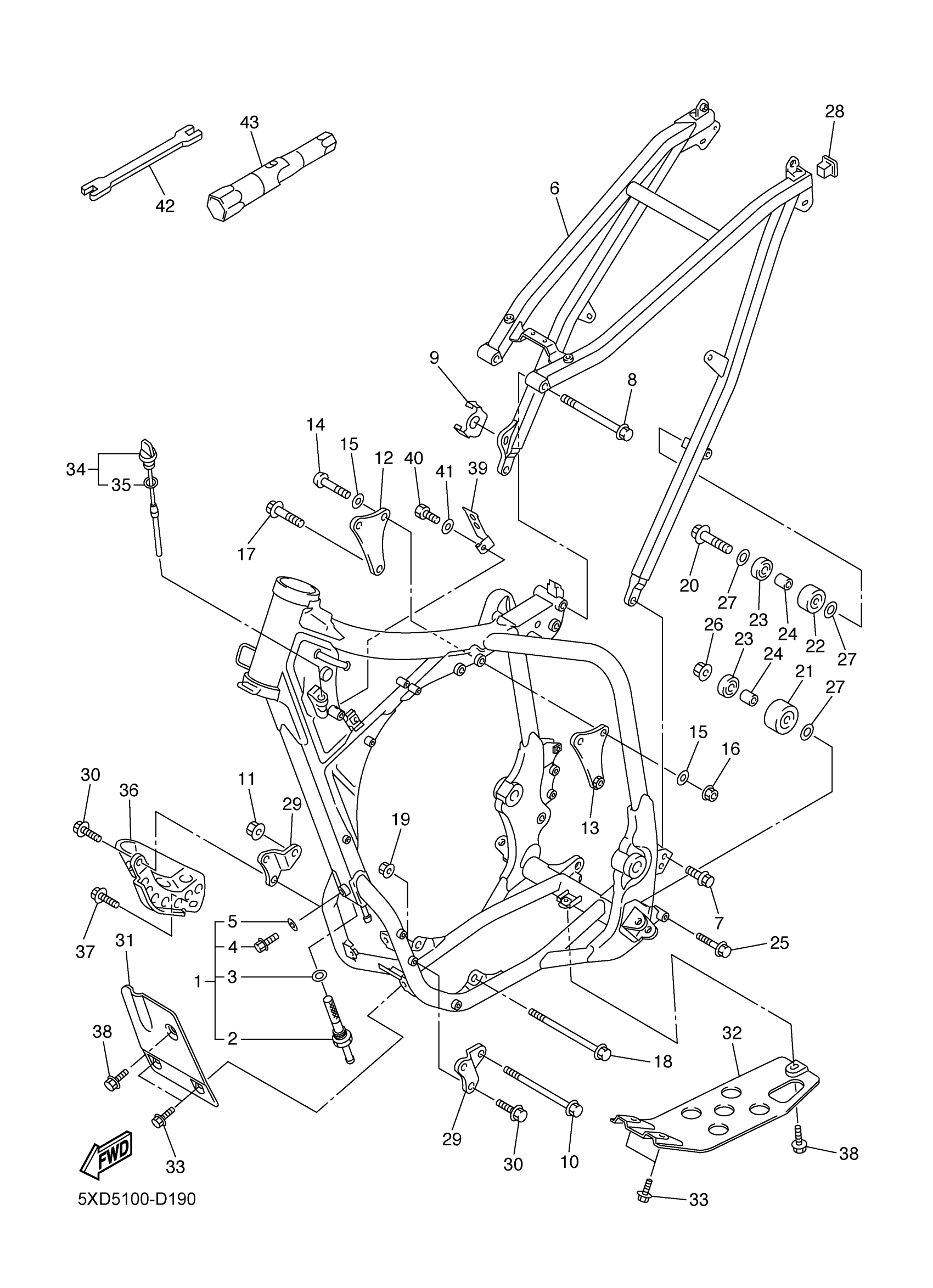

Yamaha YZ450FT (YZ450F) 5XD5 2005 FRAME Diagram
#
1
FRONT FRAME COMP.
5XD-21101-50-00
Unavailable
2
NET, FILTER
5TA-21756-00-00
Unavailable
6
REAR FRAME COMP.
5XD-21190-50-00
Unavailable
9
PLATE, PATCH
5XD-21455-60-00
Unavailable
12
BRACKET, REAR UPPER 1
5XD-21425-00-00
Unavailable
13
BRACKET, REAR UPPER 1
5XD-21425-10-00
Unavailable
17
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
18
BOLT, WASHER BASED(3RB)
90105-10733-00
Unavailable
20
BOLT, FLANGE(4MY)
95027-08040-00
Unavailable
21
TENSIONER
3JD-22178-20-00
Unavailable
22
TENSIONER
4EW-22178-01-00
Unavailable
23
BEARING (3X3)
93300-60804-00
Unavailable
24
COLLAR(1NL)
90387-086N4-00
Unavailable
25
BOLT, FLANGE
95027-08065-00
Unavailable
26
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
27
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
28
PLUG(8Y1)
90338-18176-00
Unavailable
29
BRACKET, FRONT LOWER 1
5XD-21417-50-00
Unavailable
30
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
31
PROTECTOR, ENGINE
5TA-21471-00-00
Unavailable
32
GUARD, ENGINE 2
5TA-2147E-00-00
Unavailable
33
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
34
PLUG, OIL LEVEL
5TA-15362-01-00
Unavailable
35
. O-RING
93210-08001-00
Unavailable
36
GUARD, ENGINE 1
5TA-2147A-00-00
Unavailable
38
BOLT, WITH WASHER
90119-06001-00
Unavailable
39
BRACKET, C.D.I. UNIT
5XD-21274-00-00
Unavailable
40
BOLT, HEXAGON
97017-06012-00
Unavailable
41
WASHER(6TA)
92907-06600-00
Unavailable
42
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
43
BOX, SPARK PLUG
5TA-2814F-00-00
Unavailable
