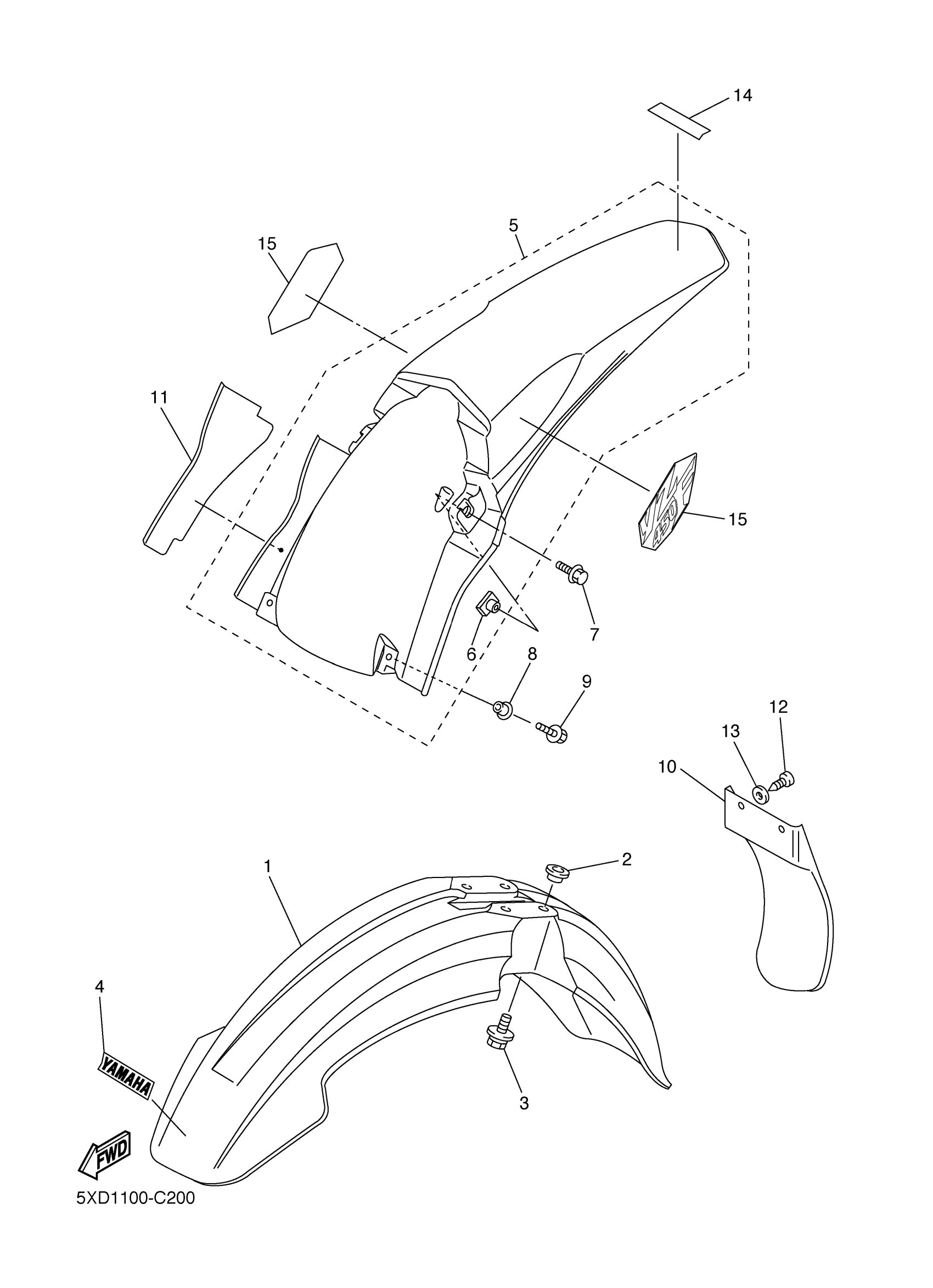

Yamaha YZ450FT (YZ450F) 5XD5 2005 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

90387-06090-00

$8.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

REAR FENDER COMP.

5XD-21610-00-00

$53.99

6

NUT, REAR FENDER

5XD-21635-00-00

$27.99

7

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

8

COLLAR

90387-06009-00

$10.49

9

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

10

GUARD, FLAP

5TA-21642-00-00

$39.99

11

INSULATOR, SIDE COVER 2

5TA-2174T-00-00

Unavailable

12

SCREW, TRUSS TAP.

97707-60016-00

$1.70

13

WASHER, PLATE

90201-06557-00

$3.30

14

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

15

EMBLEM 1

5XD-2163G-09-00

Unavailable
