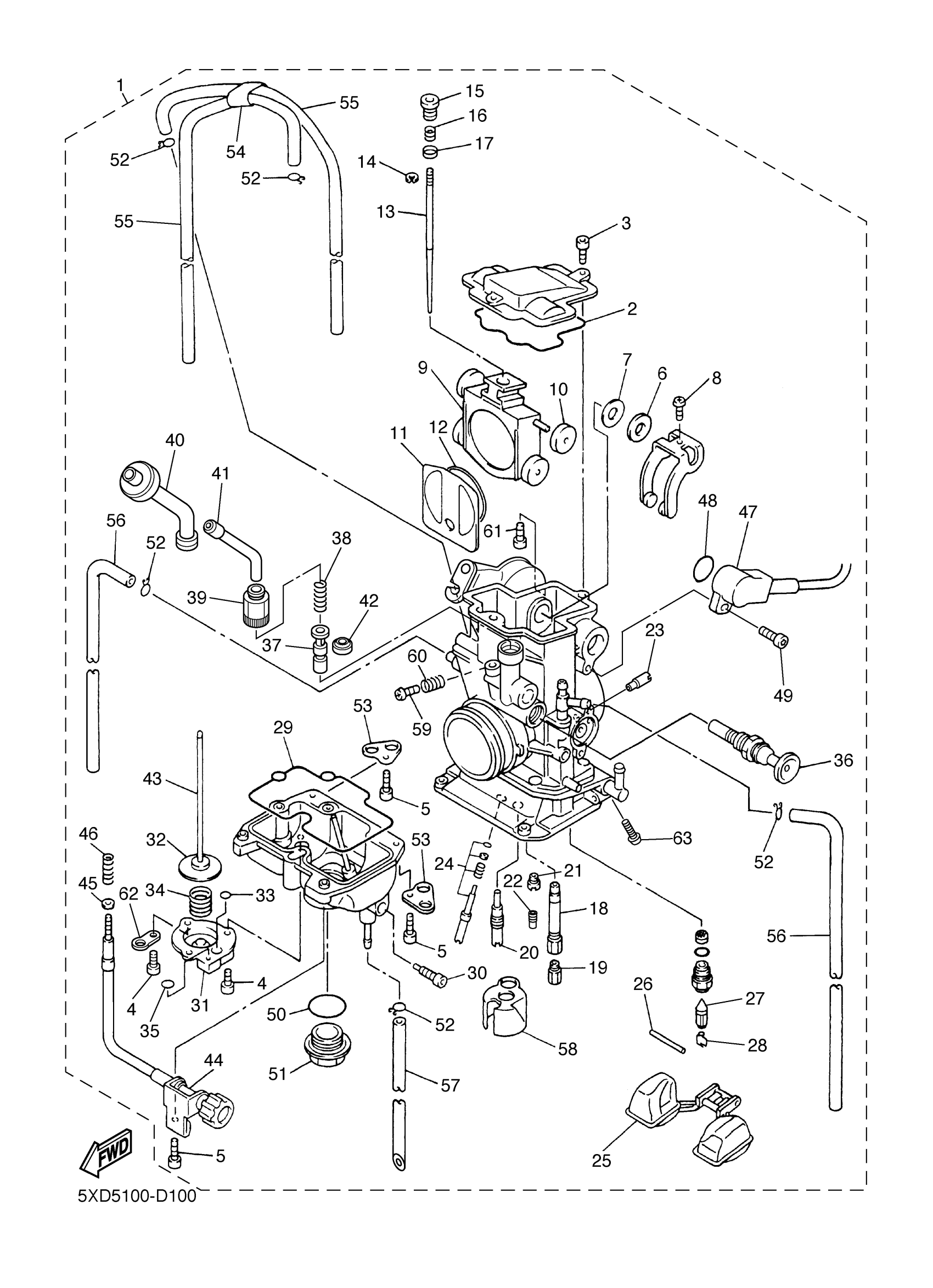

Yamaha YZ450FT (YZ450F) 5XD5 2005 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5XD-14101-50-00

Unavailable

2

GASKET

5JG-14959-00-00

$27.99

3

BOLT, SOCKET

91317-04012-00

$8.49

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

SCREW, PAN HEAD

98511-04012-00

Unavailable

6

WASHER, PLATE

90202-08045-00

$7.49

7

WASHER

5JG-14951-00-00

$4.84

8

SCREW, ADJUST

5JG-14522-09-00

$5.49

9

VALVE, VACUUM CONTROL

5JG-14388-00-00

$565.99

10

ROLLER

3TJ-14267-40-00

$17.49

11

VALVE, NEEDLE

5JG-14546-01-00

$276.99

12

SEAL

4FN-14997-00-00

$25.99

13

NEEDLE

5TA-14916-L1-00

$27.99

13

NEEDLE

5TA-14916-LN-00

Unavailable

13

NEEDLE

5TA-14916-LP-00

Unavailable

13

NEEDLE

5TA-14916-LR-00

Unavailable

13

NEEDLE

5TA-14916-LS-00

Unavailable

13

NEEDLE

5TA-14916-LT-00

Unavailable

13

NEEDLE

5TA-14916-LU-00

Unavailable

13

NEEDLE

5TA-14916-P1-00

Unavailable

13

NEEDLE

5TA-14916-PN-00

Unavailable

13

NEEDLE

5TA-14916-PP-00

Unavailable

13

NEEDLE

5TA-14916-PR-00

Unavailable

13

NEEDLE

5TA-14916-PS-00

Unavailable

13

NEEDLE

5TA-14916-PT-00

Unavailable

13

NEEDLE

5TA-14916-PU-00

Unavailable

14

CLIP

3TJ-14159-40-00

Unavailable

15

SCREW, ADJUST

5JG-14521-00-00

Unavailable

16

SPRING

5JG-14275-00-00

Unavailable

17

COLLAR

5JG-14264-00-00

Unavailable

18

JET, NEEDLE

5XD-14947-00-00

Unavailable

19

JET, MAIN (#155)

4MX-14943-38-00

Unavailable

19

JET, MAIN (#160)

4MX-14943-39-00

Unavailable

19

JET, MAIN (#165)

4MX-14943-40-00

Unavailable

19

JET, MAIN (#170)

4MX-14943-41-00

Unavailable

19

JET, MAIN (#175)

4MX-14943-42-00

Unavailable

19

. JET, MAIN (#152)

4MX-14943-88-00

Unavailable

19

JET, MAIN (#158)

4MX-14943-89-00

Unavailable

19

JET, MAIN (#162)

4MX-14943-90-00

Unavailable

19

JET, MAIN (#168)

4MX-14943-91-00

Unavailable

19

JET, MAIN (#172)

4MX-14943-92-00

Unavailable

19

JET, MAIN (#178)

4MX-14943-93-00

Unavailable

20

JET, SLOW (#38)

4MX-14948-02-00

Unavailable

20

JET (#40)

4MX-14948-03-00

Unavailable

20

JET, PILOT (#42)

4MX-14948-04-00

Unavailable

20

JET, PILOT (#45)

4MX-14948-05-00

Unavailable

20

JET, PILOT (#48)

4MX-14948-06-00

Unavailable

20

JET, PILOT (#50)

4MX-14948-07-00

Unavailable

20

JET, PILOT (#52)

4MX-14948-08-00

Unavailable

21

JET

3TJ-1494F-14-00

Unavailable

21

JET

3TJ-1494F-15-00

Unavailable

21

JET

3TJ-1494F-16-00

Unavailable

21

JET

3TJ-1494F-17-00

Unavailable

21

JET (#78)

3TJ-1494F-18-00

Unavailable

22

JET (#35)

4JT-1494F-01-00

Unavailable

22

JET (#40)

4JT-1494F-03-00

Unavailable

22

JET

4JT-1494F-05-00

Unavailable

22

JET (#50)

4JT-1494F-07-00

Unavailable

22

JET (#55)

4JT-1494F-09-00

Unavailable

23

JET,SAJ (#100)

5TA-14943-27-00

Unavailable

24

PILOT SCREW SET

5NL-14105-00-00

Unavailable

25

FLOAT

4SR-14985-00-00

Unavailable

26

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

27

VALVE, NEEDLE

4MX-14392-00-00

Unavailable

28

CLIP

633-14159-00-00

Unavailable

29

GASKET, FLOAT CHAMBER

5JG-14984-00-00

Unavailable

30

PLUG, DRAIN

3TJ-14191-40-00

Unavailable

31

COVER 1

3TJ-14293-40-00

Unavailable

32

DIAPHRAGM ASSY

5JG-14940-16-00

Unavailable

32

DIAPHRAGM ASSY

5JG-14940-17-00

Unavailable

32

DIAPHRAGM ASSY

5JG-14940-18-00

Unavailable

33

GASKET

3TJ-14536-40-00

Unavailable

34

SPRING, DIAPHRAGM

3TJ-14933-40-00

Unavailable

35

. O-RING

6H4-14561-00-00

Unavailable

36

PLUNGER, STARTER

5TA-14171-00-00

Unavailable

37

PLUNGER, STARTER

5TA-14371-00-00

Unavailable

38

SPRING, PLUNGER

5TA-14335-00-00

Unavailable

39

SCREW

5TA-14991-00-00

Unavailable

40

CAP, PLUNGER

5TA-14374-00-00

Unavailable

41

GUIDE, CABLE

5TA-14155-00-00

Unavailable

42

SEAL

5TA-14997-00-00

Unavailable

43

ROD, STARTER

5JG-14379-00-00

Unavailable

44

SCREW, THROTTLE

5JG-14922-00-00

Unavailable

45

WASHER, PLATE(3TJ)

90201-08410-00

Unavailable

46

SPRING, THROTTLE STOP

5TA-14934-00-00

Unavailable

47

THROTTLE SENSOR ASSY

5TA-85885-01-00

Unavailable

48

O-RING

33D-14562-00-00

Unavailable

49

SCREW

1DX-14216-00-00

Unavailable

50

O-RING

4MX-14561-00-00

Unavailable

51

PLUG, SCREW

4MX-14115-00-00

Unavailable

52

CLIP

3TJ-14137-40-00

Unavailable

53

PLATE

5BE-14146-00-00

Unavailable

54

HOLDER

5TA-14261-00-00

Unavailable

55

PIPE

5TA-14196-00-00

Unavailable

56

PIPE

5TA-14197-00-00

Unavailable

57

HOSE

5TJ-14987-00-00

Unavailable

58

PLATE

5JG-14346-00-00

Unavailable

59

SCREW

5JG-14565-00-00

Unavailable

60

SPRING, ADJUST SCREW

5JG-14531-00-00

Unavailable

61

SCREW

5JG-14591-09-00

Unavailable

62

. PLATE

5PA-14146-00-00

Unavailable

63

SCREW, PAN HEAD

5XD-14325-09-00

Unavailable
