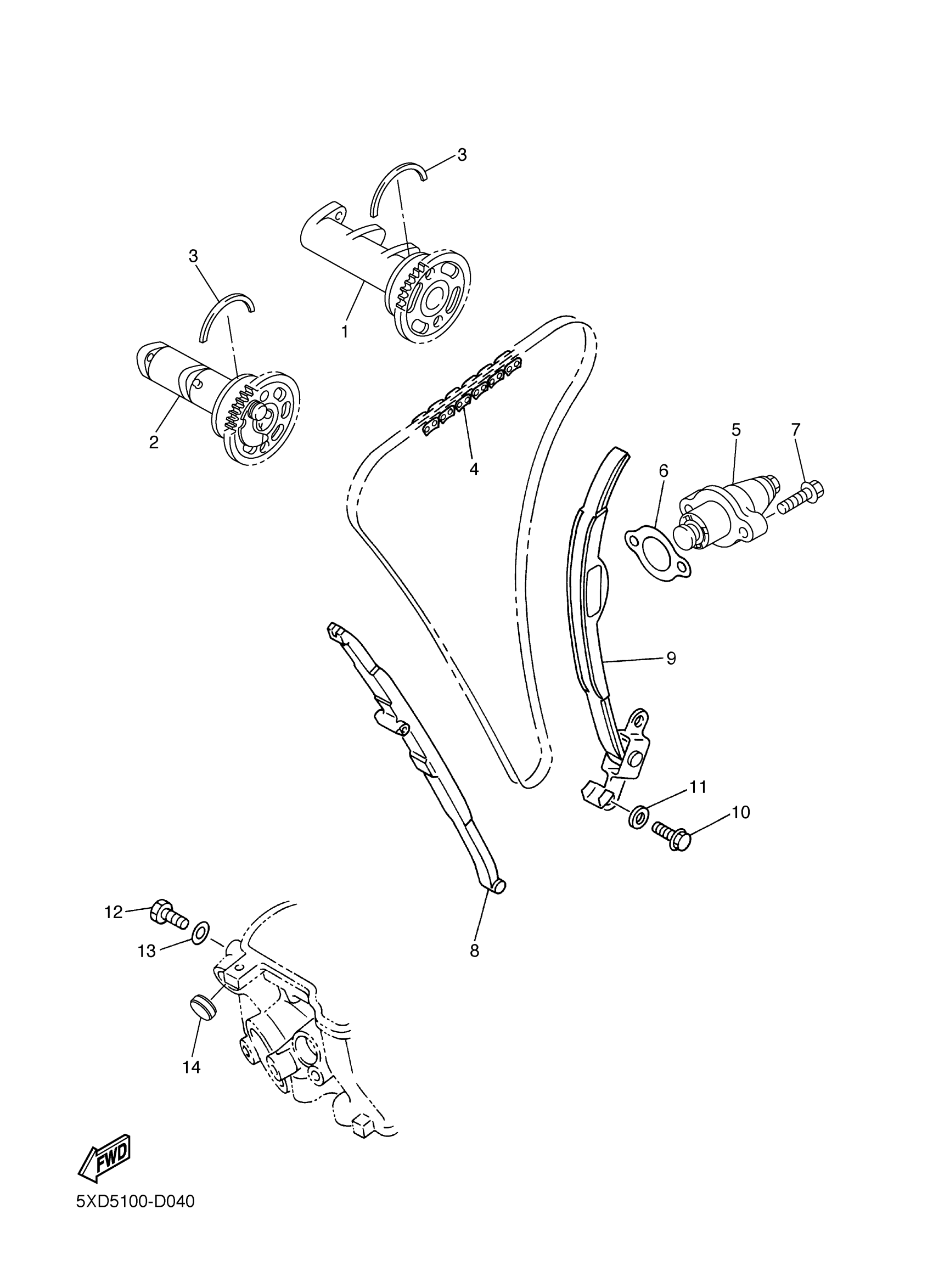

Yamaha YZ450FT (YZ450F) 5XD5 2005 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5TA-12170-10-00

$247.66

2

CAMSHAFT ASSY 2

5TA-12180-10-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.18

4

CHAIN

94591-57118-00

$29.63

5

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$111.71

6

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

7

BOLT, SMALL FLANGE

95027-06025-00

$2.95

8

DAMPER, CHAIN 1

5TA-12251-02-00

Unavailable

9

DAMPER, CHAIN 2

5TA-12252-01-00

Unavailable

10

BOLT, HEXAGON

97017-06016-00

$5.76

11

WASHER(6TA)

92907-06600-00

$0.73

12

BOLT (583 TACHOMETER)

90109-06418-00

$5.98

13

GASKET 256113960000

90430-06014-00

Unavailable

14

PLUG

90338-18004-00

Unavailable
