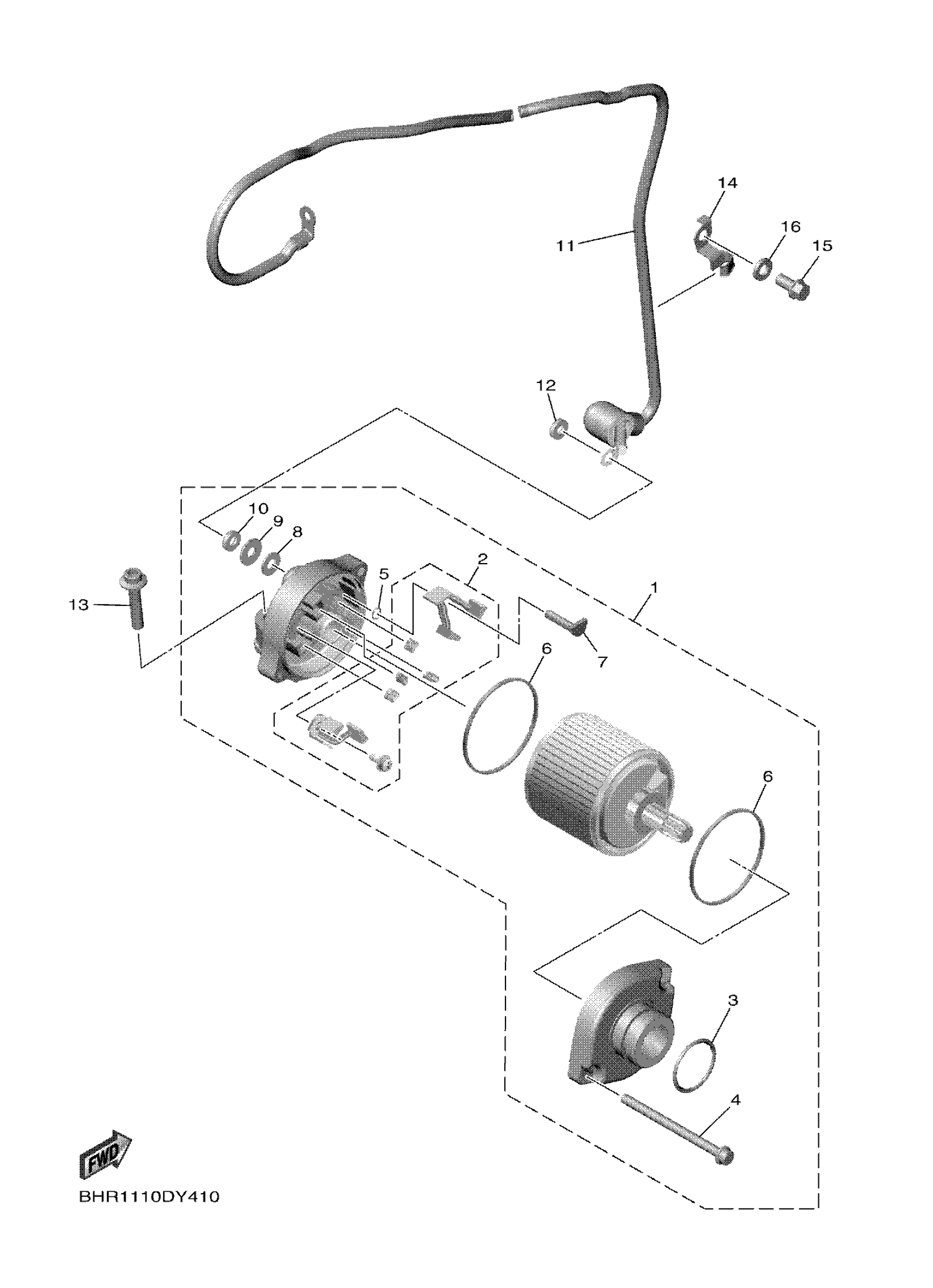

Yamaha YZ450FSME (YZ450F MONSTER) D026 2025 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

BHR-81890-00-00

Unavailable

2

BRUSH SET

2CR-81801-10-00

Unavailable

3

O-RING(1RL)

93210-25711-00

$7.49

4

SCREW

BR9-81846-00-00

Unavailable

5

O-RING 1

BR9-8182L-00-00

Unavailable

6

GASKET

BR9-81861-00-00

Unavailable

7

SCREW 2

2CR-81828-10-00

$6.99

8

WASHER, PLAIN

8FA-8181L-00-00

Unavailable

9

WASHER

1D7-81835-00-00

$2.29

10

NUT(650)

95380-06700-00

$8.49

11

CORD COMP.

BHR-8183G-00-00

$53.99

12

NUT(650)

95380-06700-00

$8.49

13

BOLT, HEXAGON SOCKET HEAD

90110-06346-00

$8.49

14

CLAMP 3

BHR-81679-00-00

$17.99

15

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.70

16

WASHER, PLATE

90201-06105-00

Unavailable
