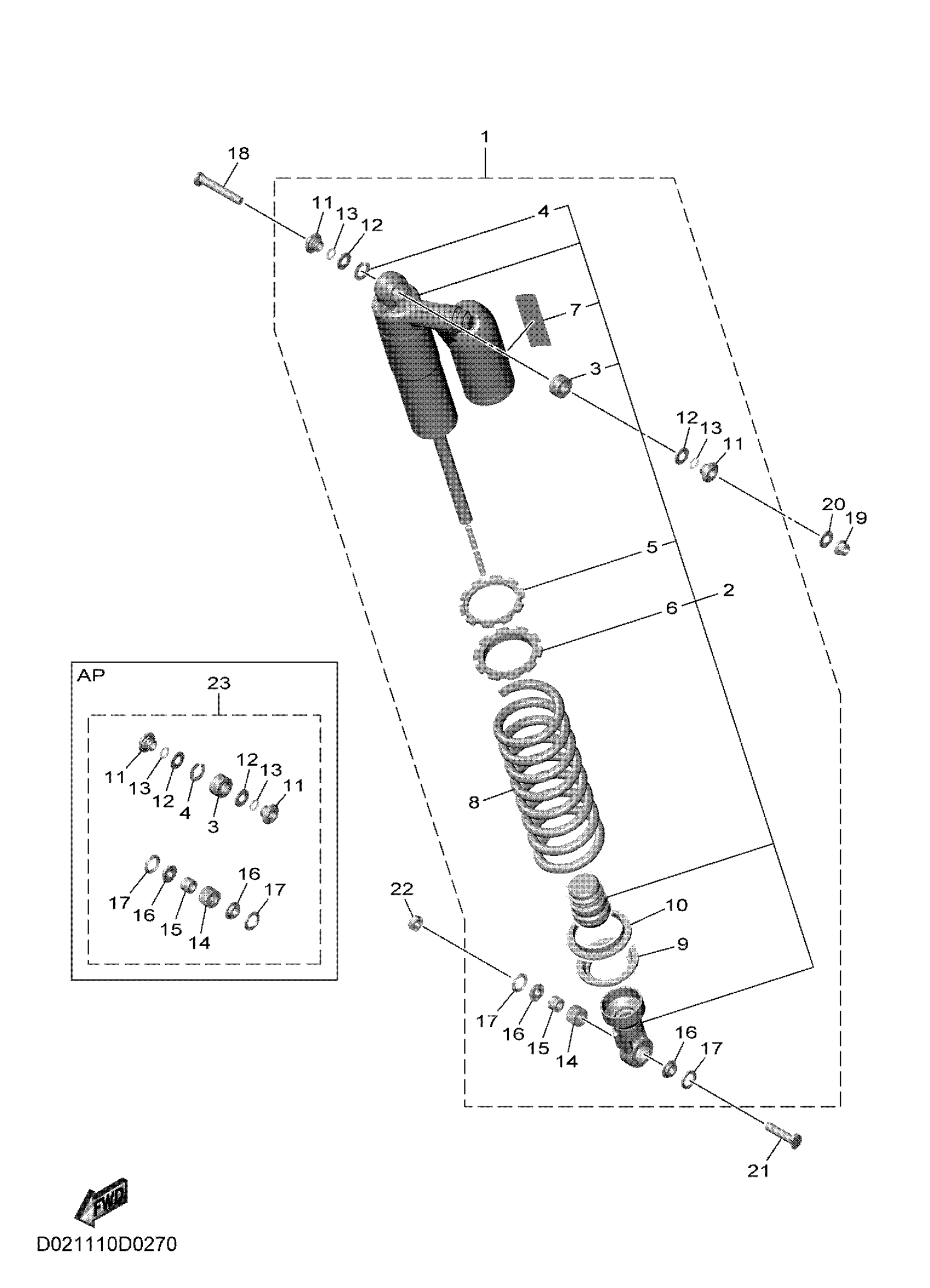

Yamaha YZ450FSME (YZ450F MONSTER) D026 2025 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

D02-22200-50-00

$1,095.99

2

DAMPER SUB ASSY

D02-22201-00-00

$1,065.99

3

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$46.76

4

CIRCLIP

5DH-23183-00-00

$4.70

5

GUIDE, SPRING 3

33D-22234-00-00

$34.70

6

SEAT, SPRING UPPER

1SL-22213-00-00

$14.89

7

LABEL, WARNING

4AA-22259-80-00

$11.85

8

SPRING (K=56 BLUE)

BR9-22212-20-00

Unavailable

9

GUIDE, SPRING 1

33D-22214-00-00

$51.97

10

GUIDE, SPRING 2

33D-22224-00-00

$20.71

11

COLLAR, DISTANCE

1C3-22253-50-00

$41.74

12

SEAL, DUST

3JE-22475-00-00

$9.87

13

SEAL, RING

4EW-22474-00-00

$5.55

14

BEARING

5UN-22176-00-00

$26.03

15

BUSH

5MV-22184-00-00

$20.00

16

COLLAR, DISTANCE

1C3-22253-L1-00

Unavailable

17

SEAL, DUST

5NY-22475-00-00

Unavailable

18

BOLT 2

5XE-22242-01-00

Unavailable

19

NUT, S/L FLANGE

95602-10200-00

Unavailable

20

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

21

BOLT 1

5NY-22241-00-00

Unavailable

22

NUT, SELF-LOCKING

90185-10012-00

Unavailable

23

SHOCK BEARING KIT

1SS-W002G-00-00

Unavailable
