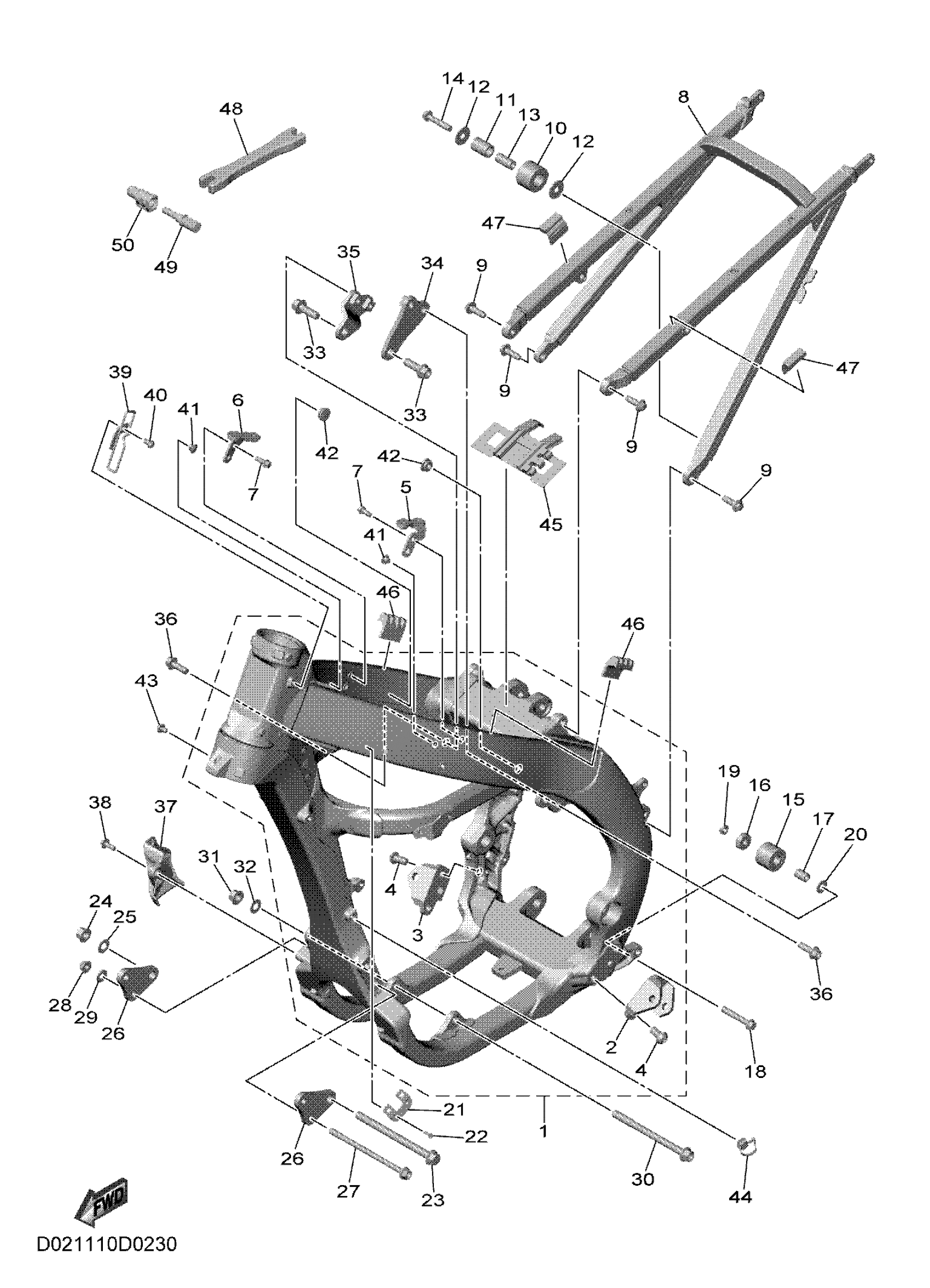

Yamaha YZ450FSME (YZ450F MONSTER) D026 2025 FRAME Diagram
#
1
FRONT FRAME COMP.
BHR-21101-10-00
Unavailable
16
BEARING (3X3)
93300-60804-00
Unavailable
17
COLLAR(1NL)
90387-086N4-00
Unavailable
18
BOLT, FLANGE
90105-08232-00
Unavailable
19
NUT, U
95617-08100-00
Unavailable
20
WASHER, PLATE
90201-08043-00
Unavailable
21
BRACKET 1
BHR-23591-00-00
Unavailable
22
RIVET, BLIND (2YK)
90267-32146-00
Unavailable
23
BOLT, FLANGE
90105-10219-00
Unavailable
24
NUT(4KG)
90179-10658-00
Unavailable
25
WASHER, PLATE
90201-10045-00
Unavailable
26
BRACKET, FRONT LOWER 1
BNK-21417-00-00
Unavailable
27
BOLT, FLANGE
90105-08285-00
Unavailable
28
NUT(4KM)
90179-08674-00
Unavailable
29
WASHER, PLATE
90201-08043-00
Unavailable
30
BOLT, FLANGE
90105-10176-00
Unavailable
31
NUT(4KG)
90179-10658-00
Unavailable
32
WASHER, PLATE
90201-10045-00
Unavailable
33
BOLT, FLANGE
90105-10189-00
Unavailable
34
BRACKET, REAR UPPE
BHR-21425-00-00
Unavailable
35
BRACKET, REAR UPPER 2
B2W-21426-00-00
Unavailable
36
BOLT, FLANGE
90105-08143-00
Unavailable
37
PROTECTOR, ENGINE
BHR-21471-00-00
Unavailable
38
BOLT, FLANGE
90105-06170-00
Unavailable
39
HOLDER, CLUTCH CAB
1SL-21163-01-00
Unavailable
40
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
41
PLUG 288833190000
90338-07043-00
Unavailable
42
GROMMET
90480-12M25-00
Unavailable
43
BOLT(3DM)
90111-06009-00
Unavailable
44
CLAMP
90464-31002-00
Unavailable
45
DAMPER, LOCATING 1
BHR-24181-00-00
Unavailable
46
DAMPER, LOCATING 2
BR9-24182-00-00
Unavailable
47
DAMPER, LOCATING 3
BHR-24183-00-00
Unavailable
48
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
49
CAP
18P-2467E-00-00
Unavailable
50
CASE, CAP
18P-2464V-01-00
Unavailable
