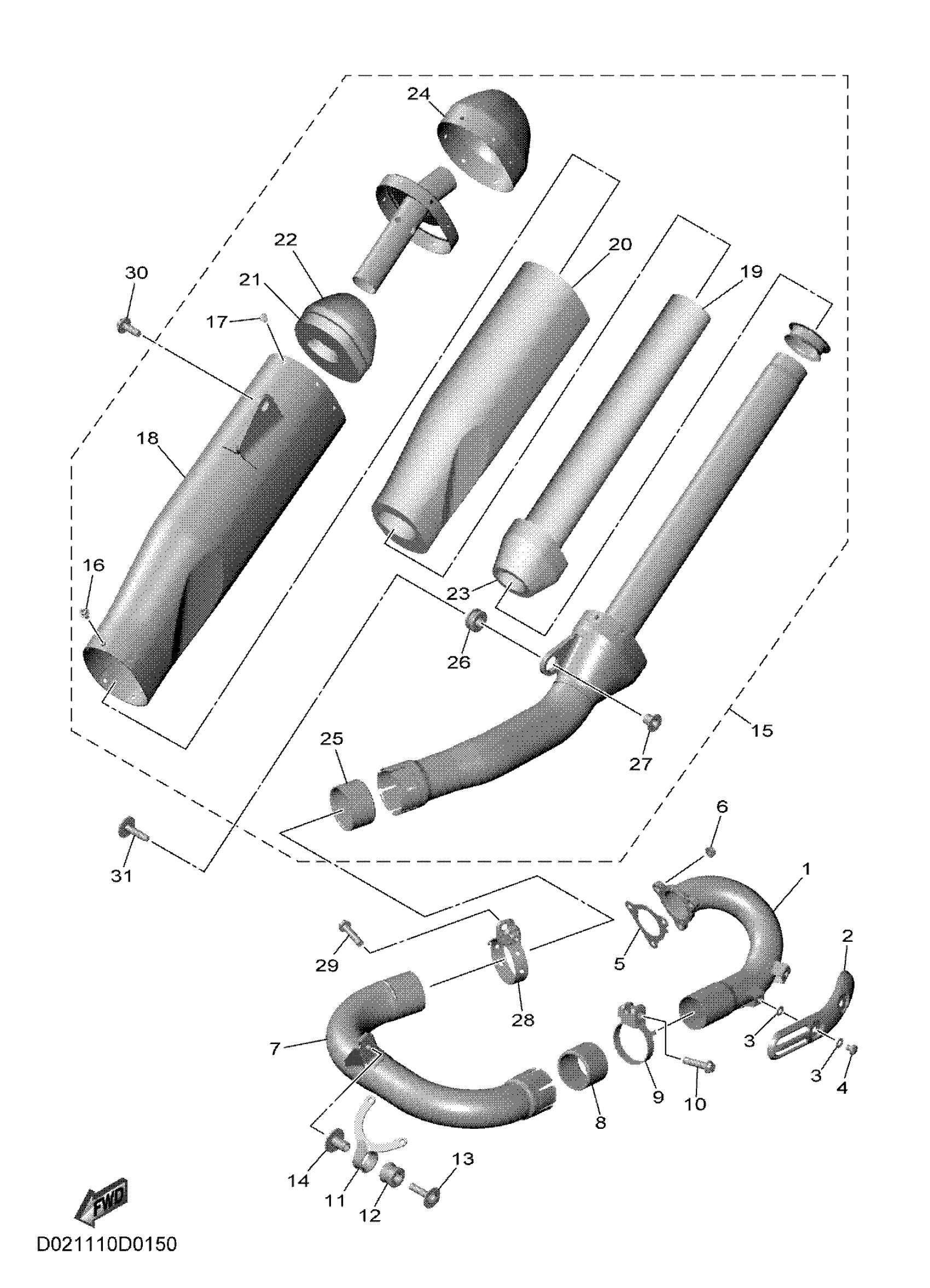

Yamaha YZ450FSME (YZ450F MONSTER) D026 2025 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

BHR-14611-00-00

$223.11

2

PROTECTOR, EXHAUST PIPE

BHR-14628-00-00

$51.68

3

WASHER, PLATE

90201-05017-00

$5.86

4

SCREW, BIND(2TV)

98980-06008-00

$0.58

5

GASKET, EXHAUST PIPE

33D-14613-00-00

$5.87

6

NUT, FLANGE(7NB)

95780-06500-00

$1.88

7

PIPE, EXHAUST 2

BHR-14621-00-00

$276.83

8

GASKET, MUFFLER

5XD-14714-00-00

$24.60

9

BAND, SILENCER

BHR-14788-00-00

Unavailable

10

BOLT, FLANGE DEEP RECESS

95E34-08035-00

$2.30

11

STAY, EXHAUST PIPE 1

B2W-14639-00-00

Unavailable

12

DAMPER, MUFFLER

5VY-14747-00-00

$11.48

13

BOLT, WITH WASHER

90119-08174-00

$4.62

14

COLLAR

90387-08081-00

$6.94

15

SILENCER ASSY

B2W-14750-00-00

$859.99

16

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

Unavailable

17

RIVET, BLIND

90267-48021-00

Unavailable

18

BODY, SILENCER

BR9-1466G-00-00

Unavailable

19

FIBER

1SL-1469A-00-00

Unavailable

20

FIBER 2

B2W-1477E-00-00

Unavailable

21

FIBER

1SL-1469F-00-00

Unavailable

22

FIBER 4

B2W-1477G-00-00

Unavailable

23

FIBER 5

B2W-1477H-00-00

Unavailable

24

CAP, SILENCER 2

B11-14798-00-00

Unavailable

25

GASKET, MUFFLER

1SL-14714-00-00

Unavailable

26

GROMMET

90480-20005-00

Unavailable

27

COLLAR

90387-08110-00

Unavailable

28

BAND, MUFFLER

1SL-14715-00-00

Unavailable

29

BOLT, FLANGE DEEP RECESS

95E34-08035-00

$2.30

30

BOLT, WITH WASHER

90119-08170-00

Unavailable

31

BOLT, WITH WASHER

90119-08177-00

Unavailable
