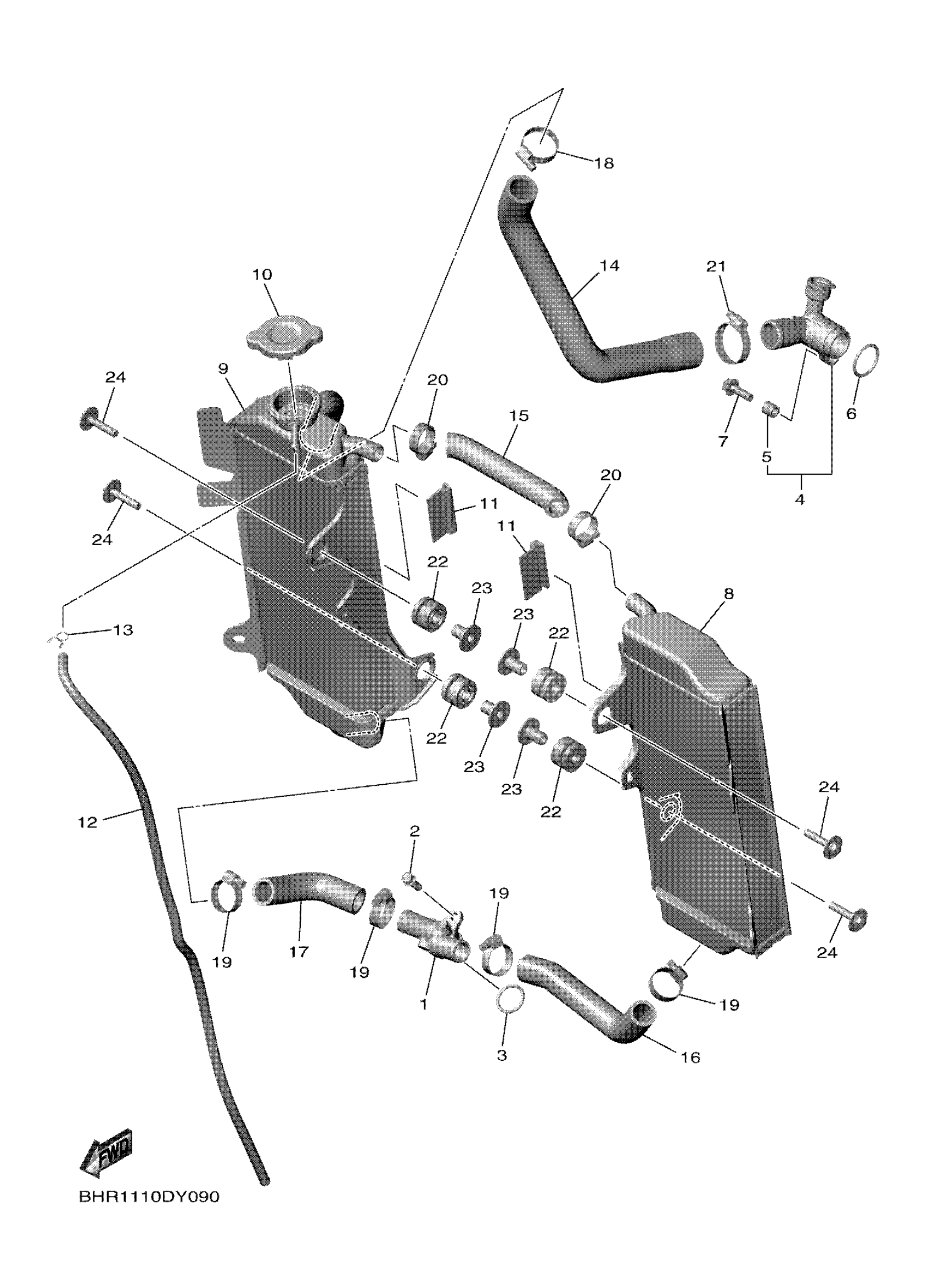

Yamaha YZ450FSL (YZ450F) D021 2025 RADIATOR & HOSE Diagram

#

Description
Price

1

PIPE 2

BHR-12482-00-00

$63.99

2

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60

3

O-RING

93210-20003-00

$8.49

4

JOINT

BHR-12446-00-00

$39.99

5

COLLAR

90387-06340-00

$3.81

6

O-RING(59V)

93210-24253-00

$7.49

7

BOLT, FLANGE DEEP RECESS

95D32-06020-00

$1.23

8

RADIATOR ASSY

BHR-1240A-00-00

Unavailable

9

RADIATOR COMP

BHR-12461-00-00

$212.99

10

CAP, RADIATOR

5SL-12462-01-00

$29.99

11

DAMPER, RADIATOR

33D-12465-00-00

$14.49

12

PIPE, BREATHER

BHR-12463-00-00

$5.60

13

CLIP 101235600

90467-08003-00

$10.49

14

HOSE 1

BHR-12576-00-00

$15.99

15

HOSE 2

BR9-12577-00-00

$5.60

16

HOSE 3

BHR-12578-00-00

Unavailable

17

HOSE 4

BHR-12579-00-00

Unavailable

18

HOSE CLAMP ASSY

90450-28001-00

Unavailable

19

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

20

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

21

HOSE CLAMP ASSY

90450-32003-00

Unavailable

22

GROMMET

90480-15012-00

Unavailable

23

COLLAR

90387-06065-00

Unavailable

24

BOLT, WITH WASHER

90119-06262-00

Unavailable
