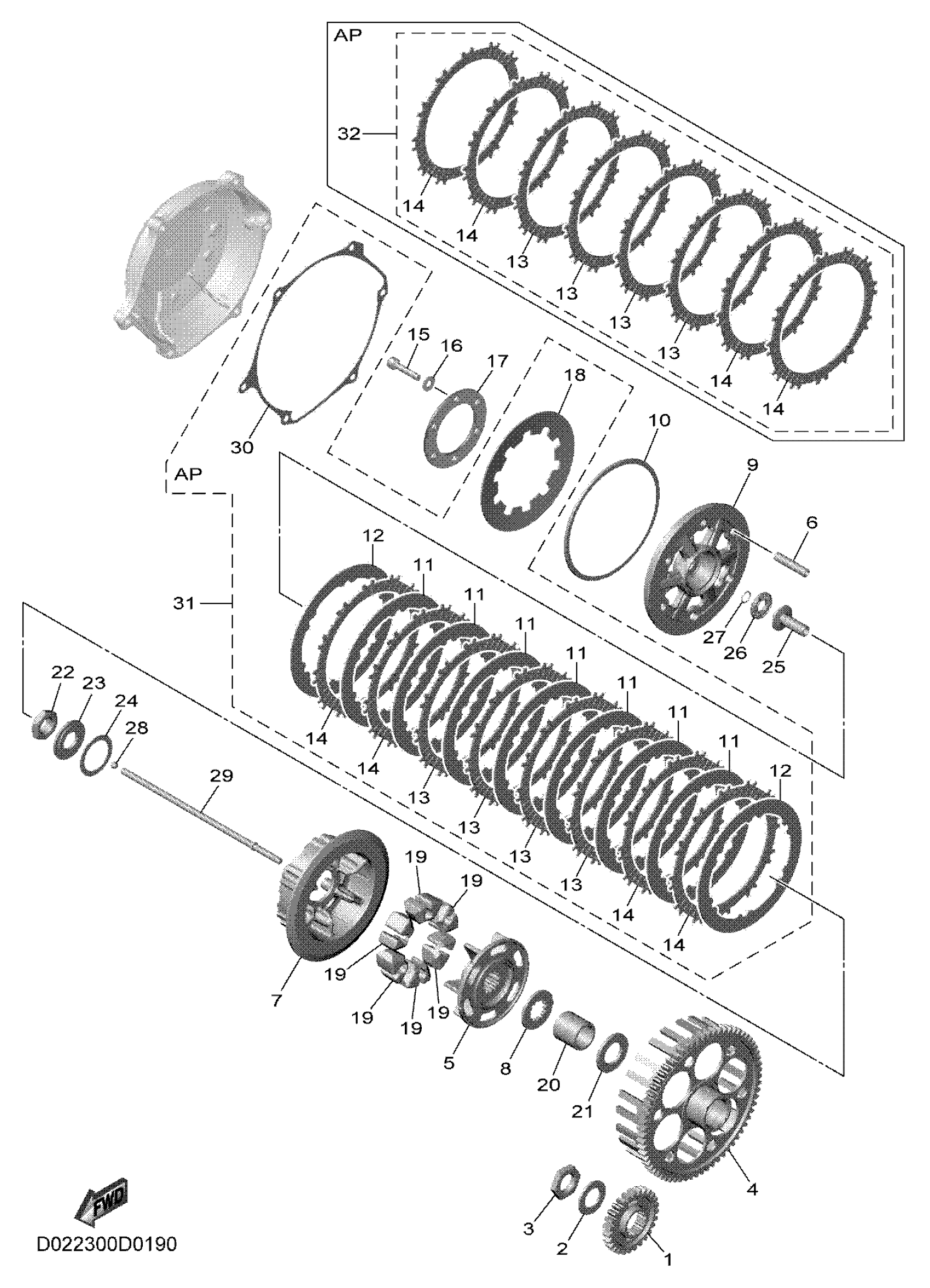

Yamaha YZ450FSL (YZ450F) D021 2025 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

BHR-16111-00-00

$116.99

2

WASHER, PLATE(1HX)

90201-204K8-00

$10.49

3

NUT

90170-20014-00

$14.99

4

GEAR, PRIMARY DRIVEN

BHR-16151-00-00

$834.99

5

BOSS, CLUTCH

BHR-16371-00-00

$119.99

6

COLLAR

90387-0514T-00

$16.99

7

SLEEVE

D02-16172-00-00

$240.99

8

WASHER

BHR-16144-00-00

$10.49

9

PLATE, PRESSURE 1

BHR-16351-00-00

$83.99

10

HOUSING, SPRING

BHR-16335-00-00

$11.49

11

PLATE, CLUTCH 1

BHR-16324-00-00

$9.49

12

PLATE, CLUTCH 2

BHR-16325-00-00

$10.49

13

PLATE, FRICTION 1

BHR-16320-00-00

$26.99

14

PLATE, FRICTION 2

BHR-16331-00-00

$26.99

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

RING,PRESSURE

BHR-16718-00-00

Unavailable

18

SPRING, CLUTCH 2

BHR-16334-00-00

Unavailable

19

ABSORBER

D02-16165-00-00

Unavailable

20

COLLAR 1

BHR-16116-00-00

Unavailable

21

WASHER, THRUST 1

BHR-16113-00-00

Unavailable

22

NUT

90179-18010-00

Unavailable

23

SPACER 3

D02-16183-00-00

Unavailable

24

WASHER, PLATE (2J2)

90201-32673-00

Unavailable

25

ROD, PUSH 1

BHR-16356-00-00

Unavailable

26

BEARING, THRUST(2FL)

93340-21209-00

Unavailable

27

CIRCLIP (4G0)

93440-10085-00

Unavailable

28

BALL

93501-04011-00

Unavailable

29

ROD, PUSH 2

BHR-16357-00-00

Unavailable

30

GASKET

BHR-15453-00-00

Unavailable

31

CLUTCH PLATE KIT

BHR-W001G-00-00

Unavailable

32

FRICTION PLATE KIT

BHR-W001M-00-00

Unavailable
