Description

Price

1

COVER, SIDE 1

5TA-21711-00-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

BOLT, WITH WASHER

90119-08238-00

$4.29

4

EMBLEM 1

5XD-21781-00-00

Unavailable

5

COVER, SIDE 2

5TA-21721-00-00

Unavailable

6

INSULATOR, SIDE COVER

5TA-2174A-00-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$2.75

8

BOLT, WITH WASHER

90119-08238-00

$4.29

9

EMBLEM 1

5XD-21781-00-00

Unavailable

10

SIDE COVER ASSY 3

5TA-21730-00-00

Unavailable

11

GRAPHIC 1

5XD-2173E-00-00

Unavailable

12

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

13

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

14

PANEL 1

5TA-2172A-00-00

$40.99

15

SIDE COVER ASSY 4

5TA-21740-00-00

$33.99

16

GRAPHIC 2

5XD-2173F-00-00

Unavailable

17

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

18

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

19

PANEL 1

5TA-2172A-00-00

$40.99

20

TUNING FORK MARK

5MV-2175C-00-00

Unavailable

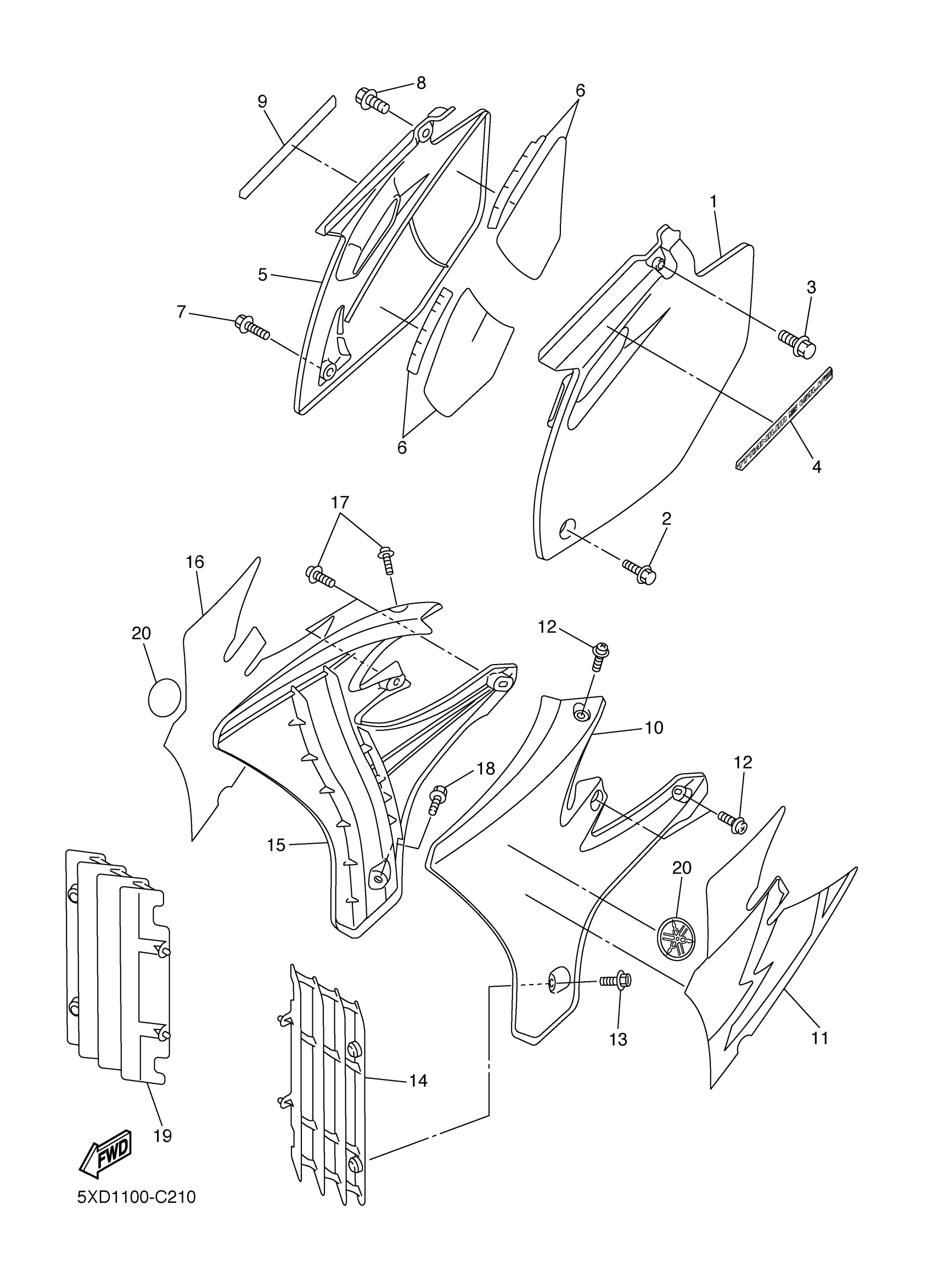

Yamaha YZ450FS (YZ450F) 5XD1 2004 SIDE COVER Diagram

COVER, SIDE 1

BOLT, FLANGE

BOLT, WITH WASHER

EMBLEM 1

COVER, SIDE 2

INSULATOR, SIDE COVER

BOLT, FLANGE

BOLT, WITH WASHER

EMBLEM 1

SIDE COVER ASSY 3

GRAPHIC 1

SCREW, WITH WASHER(3YJ)

SCREW, WITH WASHER (34K)

PANEL 1

SIDE COVER ASSY 4

GRAPHIC 2

SCREW, WITH WASHER(3YJ)

SCREW, WITH WASHER (34K)

PANEL 1

TUNING FORK MARK
