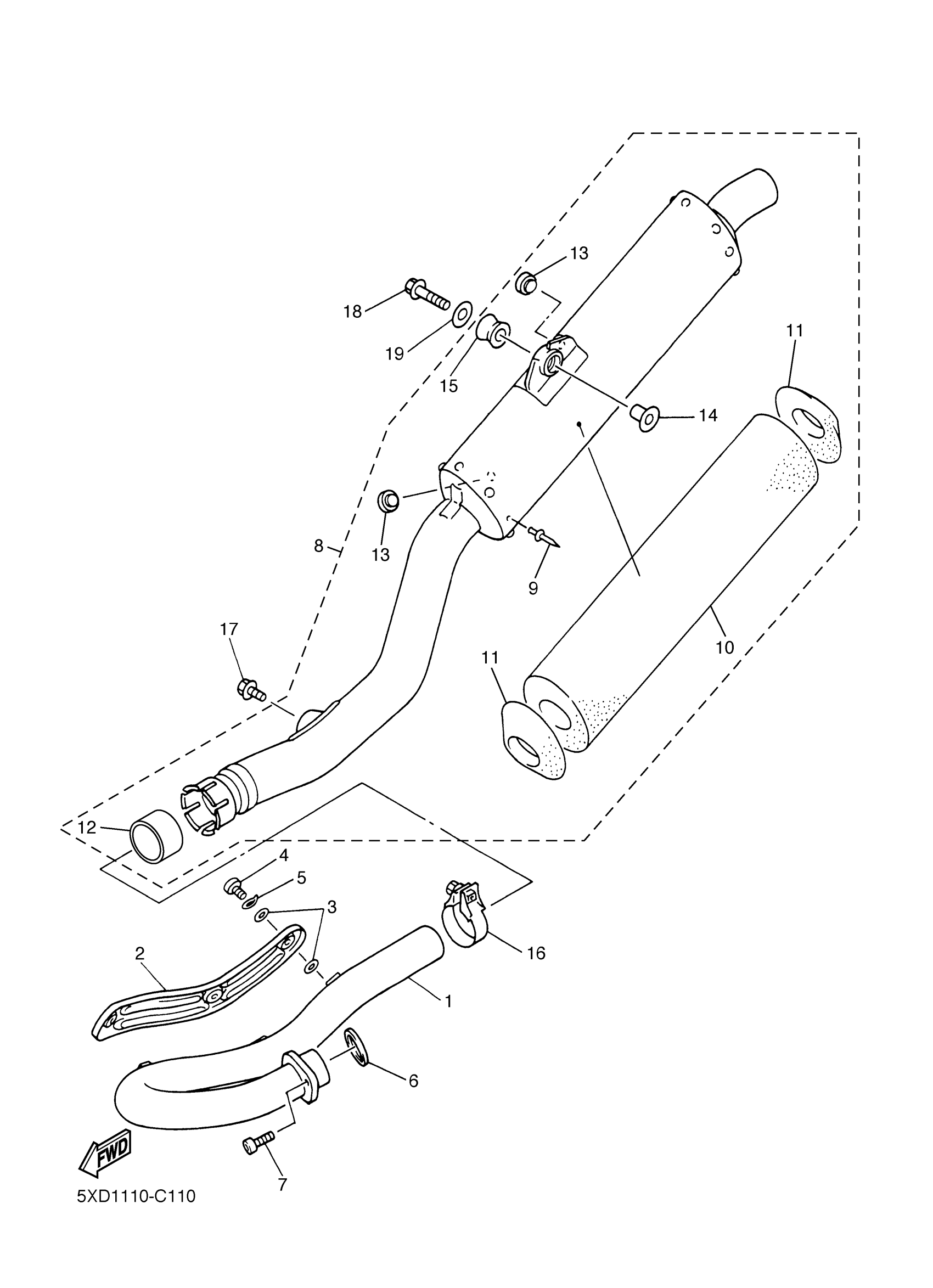

Yamaha YZ450FS (YZ450F) 5XD1 2004 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5TA-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

5TA-14628-00-00

Unavailable

3

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

4

SCREW, BIND(2TV)

98980-06008-00

$0.58

5

WASHER, WAVE(3RW)

90206-06090-00

$4.89

6

GASKET, EXHAUST PIPE

3VD-14613-01-00

$9.15

7

BOLT, SOCKET

91317-08020-00

$2.19

8

SILENCER ASSY

5XD-Y1475-00-00

Unavailable

9

. RIVET, BLIND

90267-48084-00

$2.25

10

FIBER

5TA-1469A-00-00

Unavailable

11

FIBER

5TA-1469E-00-00

$6.61

12

GASKET, MUFFLER

5XD-14714-00-00

$24.60

13

DAMPER, LOCATING 1

22W-24181-00-00

$5.37

14

COLLAR

90387-08081-00

$6.94

15

DAMPER, MUFFLER

5BE-14747-00-00

$7.13

16

BAND, SILENCER

5BE-14788-00-00

Unavailable

17

BOLT, FLANGE

90105-08057-00

Unavailable

18

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

19

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable
