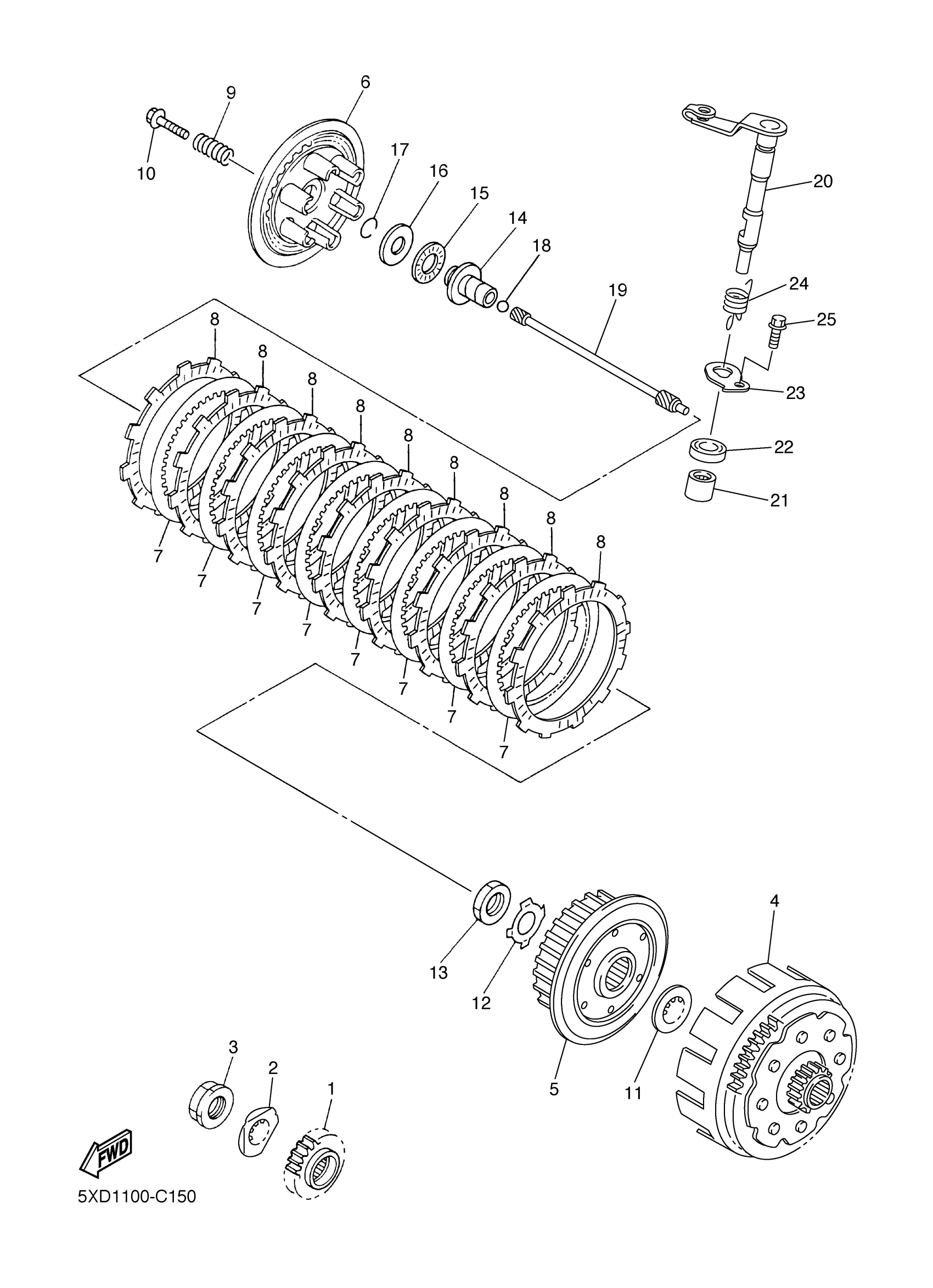

Yamaha YZ450FS (YZ450F) 5XD1 2004 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5TA-16111-00-00

Unavailable

2

WASHER, LOCK

90215-21003-00

$8.49

3

NUT

90179-20001-00

$17.99

4

PRIMARY DRIVEN GEAR COMP.

99999-03567-00

Unavailable

5

BOSS, CLUTCH

5TA-16371-02-00

$188.99

6

PLATE, PRESSURE 1

5JG-16351-00-00

$90.99

7

PLATE, CLUTCH 2

5JG-16325-10-00

$7.99

8

PLATE, FRICTION

5TA-16321-00-00

$25.99

9

SPRING, COMPRESSION

90501-237L0-00

$7.49

10

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

11

PLATE, THRUST 1

5XD-16154-00-00

$15.49

12

WASHER, LOCK (34L)

90215-20231-00

$4.41

13

NUT (34L)

90170-20327-00

$18.99

14

ROD, PUSH 1

5JG-16356-00-00

Unavailable

15

BEARING, THRUST (713)

93340-21505-00

$18.99

16

WASHER, PLATE(1RE)

90201-125L6-00

Unavailable

17

CIRCLIP (4G0)

93440-10085-00

Unavailable

18

BALL (498)

93511-32027-00

Unavailable

19

ROD, PUSH 2

5TA-16357-10-00

Unavailable

20

PUSH LEVER COMP.

5XD-16381-00-00

Unavailable

21

BEARING

93317-11287-00

Unavailable

22

OIL SEAL (4G0)

93102-12224-00

Unavailable

23

PLATE, SEAT

5TA-16384-01-00

Unavailable

24

SPRING, TORSION

90508-12007-00

Unavailable

25

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
