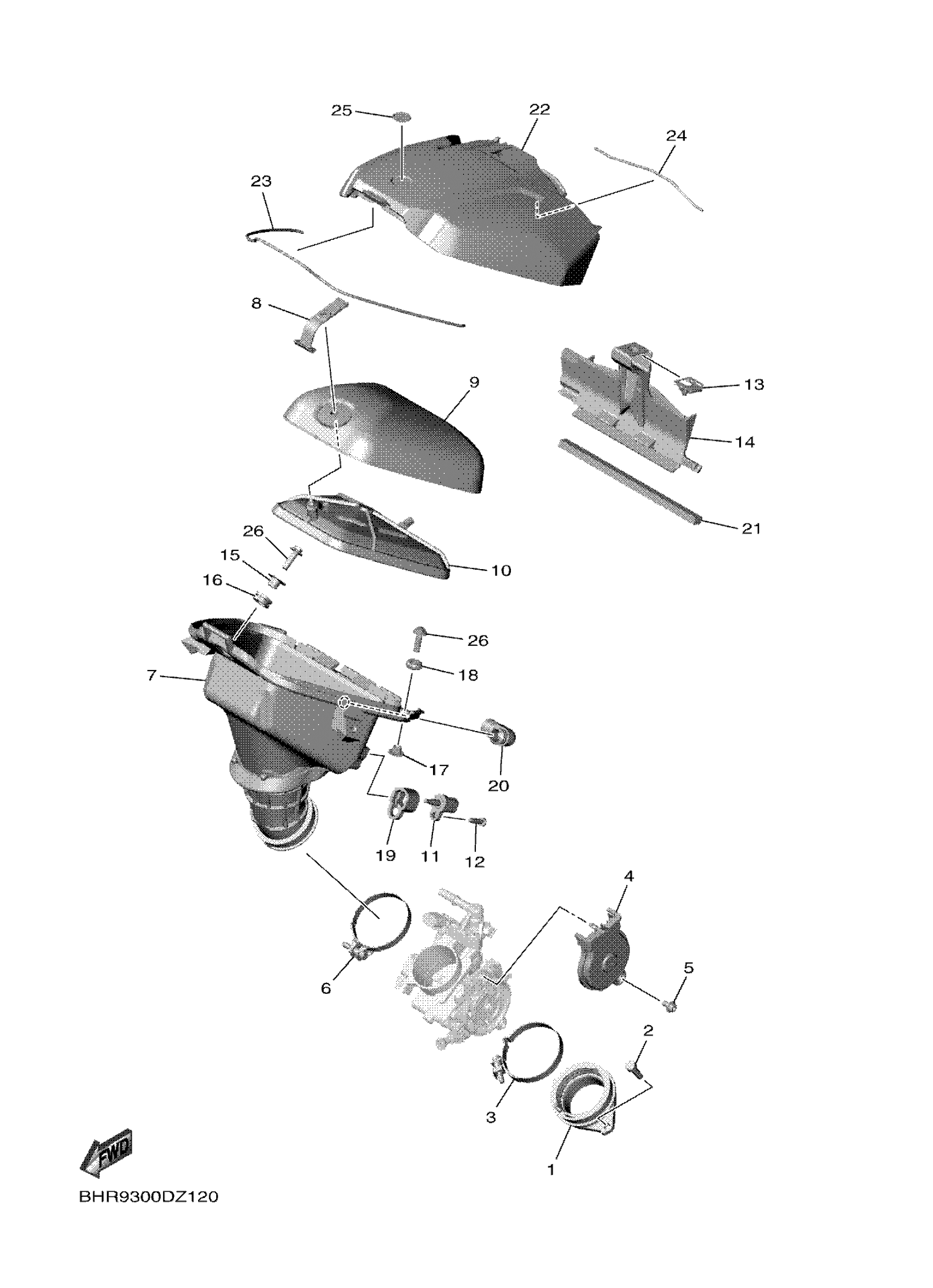

Yamaha YZ450FRSE (YZ450F 50TH) BHRC 2024 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

BR9-13597-00-00

$51.74

2

BOLT,SOCKET HEAD

91314-06020-00

$1.91

3

HOSE CLAMP ASSY

90450-60004-00

$13.70

4

COVER 1

BR9-14293-00-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

$6.18

6

HOSE CLAMP ASSY

90450-58006-00

$17.92

7

AIR FILTER CASE COMP

BHR-14408-02-00

Unavailable

8

HOLDER, GUIDE

BHR-14459-00-00

$9.32

9

ELEMENT, AIR CLEANER

BHR-14451-00-00

$29.63

10

GUIDE

BHR-14458-00-00

$26.15

11

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$47.81

12

SCREW, PANHEAD TAPPING

97702-50520-00

$0.26

13

PLATE, SPRING

2CR-2177L-00-00

$4.47

14

CAP, CLEANER CASE

BHR-14422-01-00

$35.58

15

COLLAR (4N0)

90387-071E0-00

$5.73

16

GROMMET

90480-01027-00

Unavailable

17

COLLAR

90387-06273-00

Unavailable

18

GROMMET (2T4)

90480-12237-00

Unavailable

19

HOLDER

20S-1445C-01-00

Unavailable

20

PIPE

B3J-14419-01-00

Unavailable

21

DAMPER, SEAT

BHR-24737-00-00

Unavailable

22

CAP, CLEANER CASE

BHR-14412-20-00

Unavailable

23

SEAL

BHR-14452-00-00

Unavailable

24

SEAL

1SL-14457-00-00

Unavailable

25

EMBLEM

4XV-2341B-00-00

Unavailable

26

BOLT, FLANGE

90105-06203-00

Unavailable
