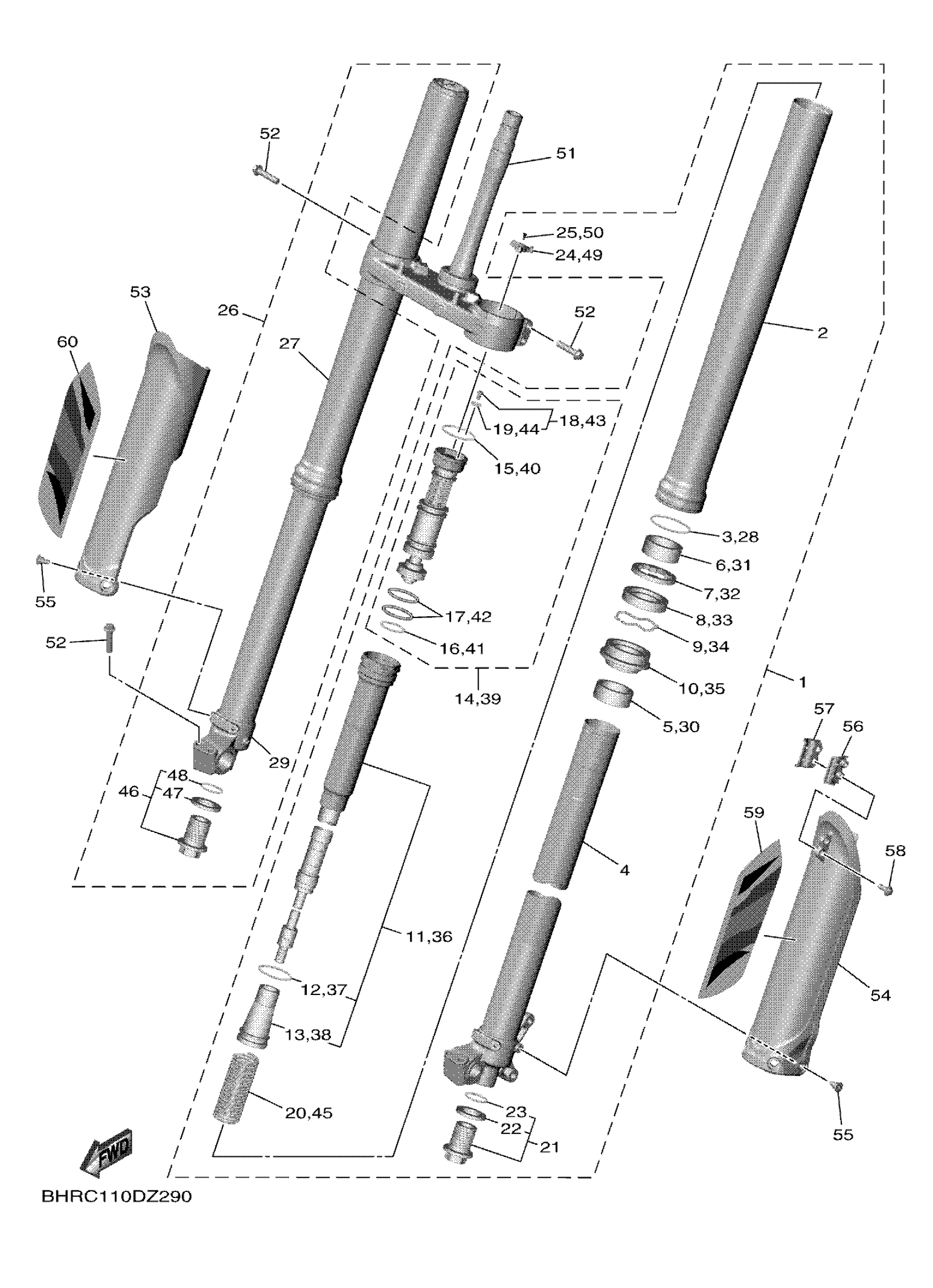

Yamaha YZ450FRSE (YZ450F 50TH) BHRC 2024 FRONT FORK Diagram
#
16
O-RING
1C3-23188-P0-00
Unavailable
17
O-RING
1AE-23147-01-00
Unavailable
18
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
19
O-RING
1C3-23188-R1-00
Unavailable
20
SPRING, FRONT FORK (K=5.0)
BR9-23141-70-00
Unavailable
21
BOLT, CAP
5XC-23111-01-00
Unavailable
22
GASKET
2HH-23158-L0-00
Unavailable
23
GASKET
276-23114-02-00
Unavailable
24
CAP
BHR-2319W-00-00
Unavailable
25
SCREW
1MC-23119-10-00
Unavailable
26
FRONT FORK ASSY (R.H)
BHR-23103-00-00
Unavailable
29
INNER TUBE COMP.1
BR9-23110-01-00
Unavailable
41
O-RING
1C3-23188-P0-00
Unavailable
42
O-RING
1AE-23147-01-00
Unavailable
43
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
44
O-RING
1C3-23188-R1-00
Unavailable
45
SPRING, FRONT FORK (K=5.0)
BR9-23141-70-00
Unavailable
46
BOLT, CAP
5XC-23111-01-00
Unavailable
47
GASKET
2HH-23158-L0-00
Unavailable
48
GASKET
276-23114-02-00
Unavailable
49
CAP
BHR-2319W-00-00
Unavailable
50
SCREW
1MC-23119-10-00
Unavailable
51
UNDER BRACKET COMP.
B7R-23340-00-00
Unavailable
52
BOLT, FLANGE DEEP RECESS
95E34-08035-00
Unavailable
53
PROTECTOR 2
BHR-2315J-20-00
Unavailable
54
PROTECTOR 1
BHR-2315H-20-00
Unavailable
55
BOLT
90109-06232-00
Unavailable
56
CLAMP
BHR-23466-00-00
Unavailable
57
CLAMP
BHR-23467-00-00
Unavailable
58
BOLT, FLANGE
90105-06170-00
Unavailable
59
GRAPHIC 1
BHR-231G1-00-00
Unavailable
60
GRAPHIC 2
BHR-231G2-00-00
Unavailable
