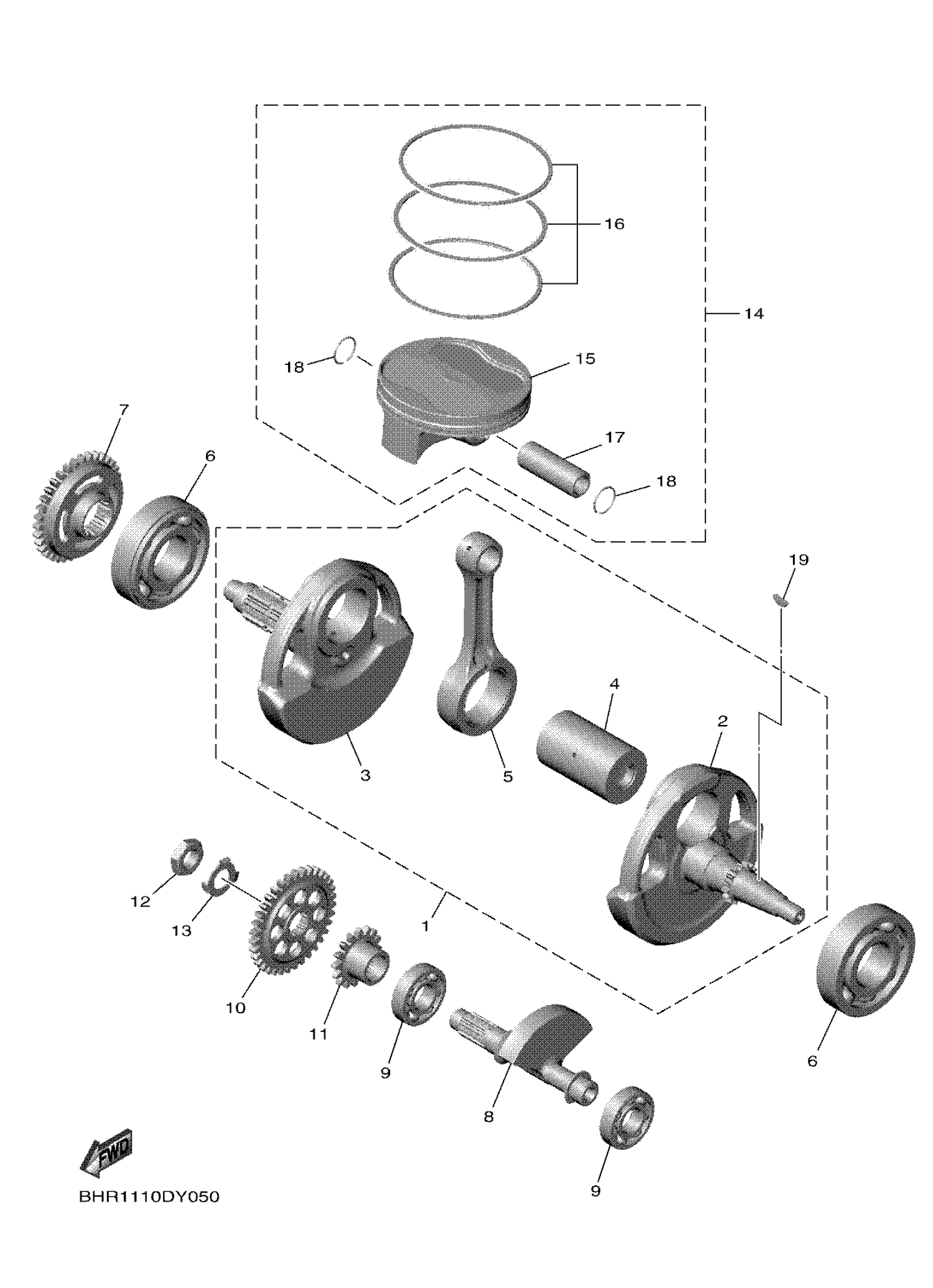

Yamaha YZ450FRSE (YZ450F 50TH) BHRC 2024 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

BHR-11400-00-00

$679.99

2

CRANK 1

BHR-11412-00-00

$321.14

3

CRANK 2

BHR-11422-00-00

$433.03

4

PIN, CRANK 1

BHR-11681-00-00

$69.80

5

CONNECTING ROD ASSY

BHR-11650-00-00

$116.42

6

BEARING

93306-30647-00

$67.41

7

GEAR, DRIVE

BHR-11536-00-00

$148.15

8

WEIGHT 1

BHR-11454-00-00

$355.50

9

BEARING

93306-20351-00

$31.85

10

GEAR, BALANCE WEIGHT

BHR-11531-00-00

$149.20

11

GEAR,OIL PUMP DRIVE SHAFT

BHR-13301-00-00

$69.59

12

NUT, HEXAGON

90170-14171-00

$6.76

13

WASHER, LOCK

90215-14004-00

Unavailable

14

PISTON ASSY

BHR-116A0-00-00

$177.83

15

PISTON (STD)

BHR-11631-00-00

$104.70

16

PISTON RING SET (STD)

B2W-11603-00-00

Unavailable

17

PIN, PISTON

BR9-11633-10-00

Unavailable

18

CIRCLIP (2F1)

93450-19052-00

Unavailable

19

KEY, WOODRUFF

90280-03006-00

Unavailable
