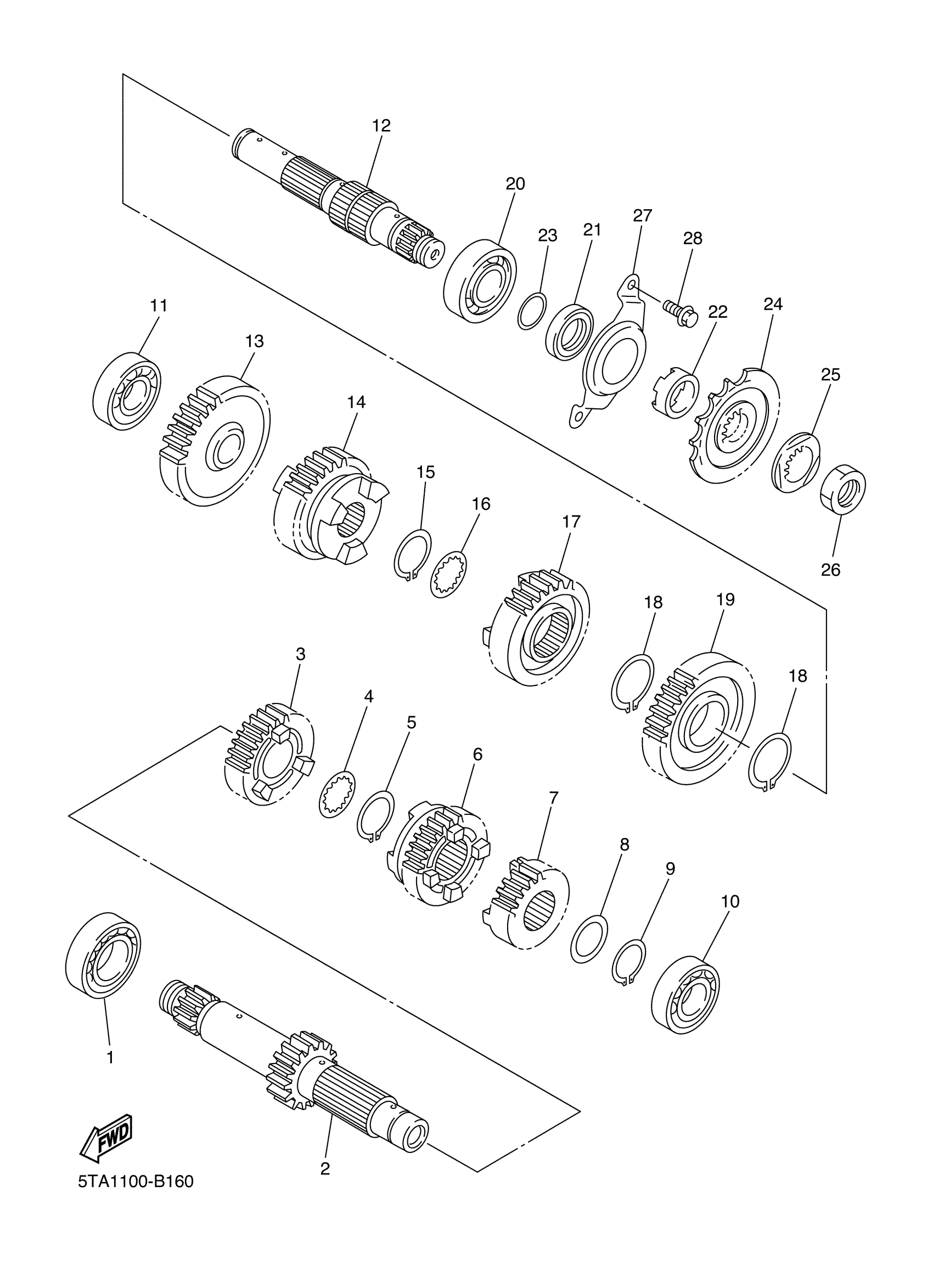

Yamaha YZ450FR (YZ450F) 5TA1 2003 TRANSMISSION Diagram

#

Description
Price

1

BEARING

93306-20532-00

$66.99

2

AXLE, MAIN

5TA-17411-20-00

Unavailable

3

GEAR, 4TH PINION (20T)

5TA-17141-10-00

Unavailable

4

WASHER(3VD)

90209-21332-00

$7.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

GEAR, 3RD PINION

5TA-17131-20-00

$126.99

7

GEAR, 2ND PINION

5TA-17121-10-00

$79.99

8

WASHER, PLATE(2XJ)

90201-206L6-00

$8.49

9

CIRCLIP(1AR)

99009-20400-00

$8.49

10

BEARING (34L)

93306-00431-00

$41.99

11

BEARING (5Y1)

93306-00426-00

$42.99

12

DRIVE AXLE ASSY

5TA-17402-10-00

Unavailable

13

GEAR, 1ST WHEEL (27T)

5TA-17211-10-00

Unavailable

14

GEAR, 4TH WHEEL

5TA-17241-10-00

$140.99

15

CIRCLIP (4L0)

93440-25084-00

$5.60

16

WASHER(3VD)

90209-21332-00

$7.49

17

GEAR, 3RD WHEEL

5TA-17231-00-00

Unavailable

18

CIRCLIP (3J3)

93440-30077-00

Unavailable

19

GEAR, 2ND WHEEL (25T)

5TA-17221-10-00

Unavailable

20

BEARING

93306-20593-00

Unavailable

21

OIL SEAL

93102-32480-00

Unavailable

22

COLLAR

90387-2513F-00

Unavailable

23

O-RING

93210-22298-00

Unavailable

24

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

25

WASHER, LOCK

90215-21001-00

Unavailable

26

NUT

90179-20001-00

Unavailable

27

PLATE, COVER

5GR-17471-10-00

Unavailable

28

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
