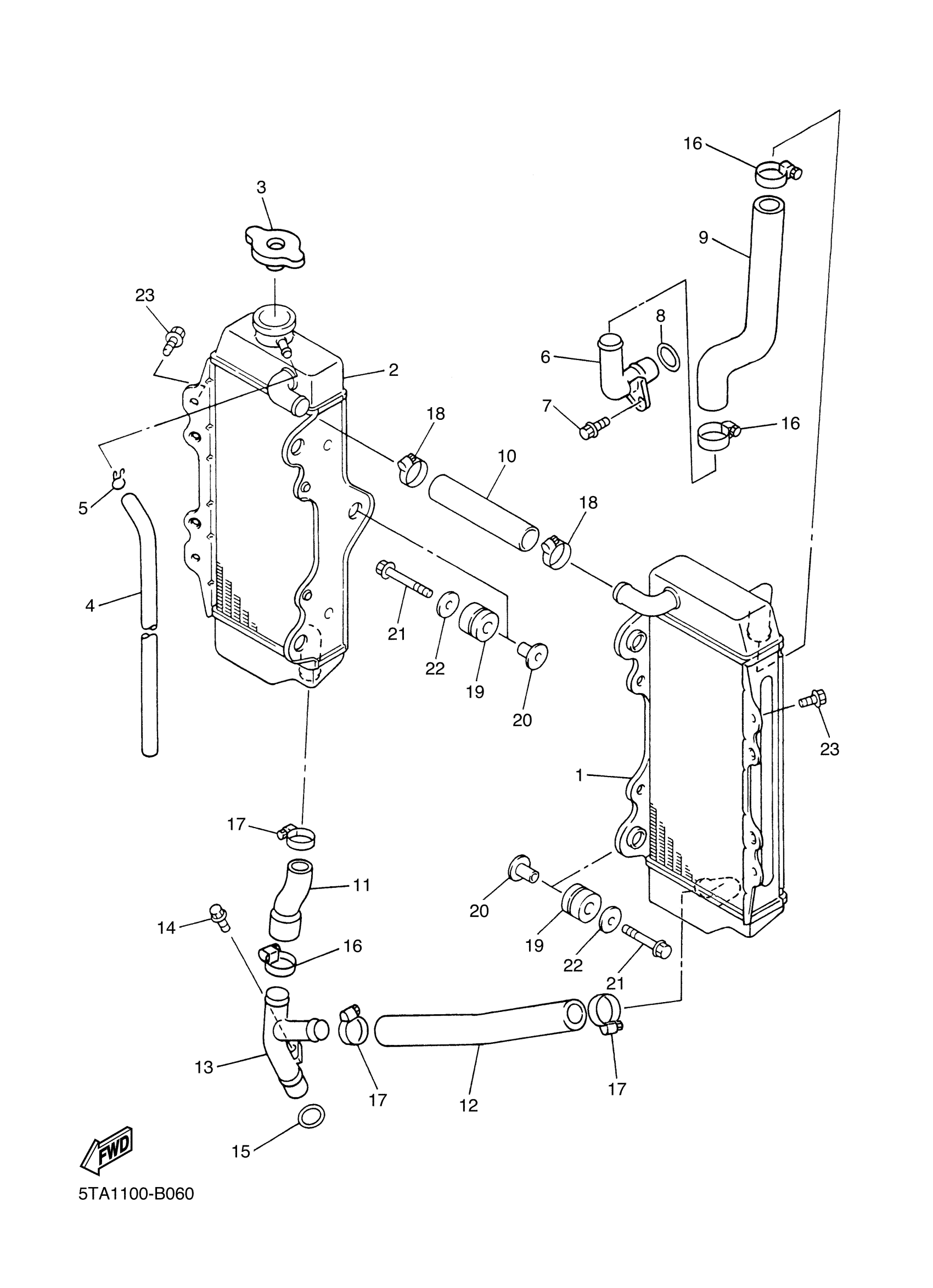

Yamaha YZ450FR (YZ450F) 5TA1 2003 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5TA-1240A-00-00

Unavailable

2

RADIATOR ASSY

5TA-12461-00-00

Unavailable

3

CAP, RADIATOR

4FL-12462-00-00

$53.09

4

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$11.73

5

CLIP

90467-090A2-00

$2.47

6

PIPE 1

2S2-12481-00-00

Unavailable

7

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

8

O-RING (5U8)

93210-16500-00

$4.58

9

HOSE 1

5TA-12576-00-00

$24.11

10

HOSE 4

5SG-12579-00-00

$6.24

11

HOSE 3

5TA-12578-00-00

$15.82

12

HOSE 4

5TA-12579-00-00

Unavailable

13

PIPE 2

5TJ-12482-00-00

Unavailable

14

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

15

O-RING (5U8)

93210-16500-00

$4.58

16

HOSE CLAMP ASSY

90450-28001-00

Unavailable

17

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

18

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

19

GROMMET(3RB)

90480-15528-00

Unavailable

20

COLLAR

90387-06065-00

Unavailable

21

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

22

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

23

BOLT, FLANGE

95817-06010-00

Unavailable
