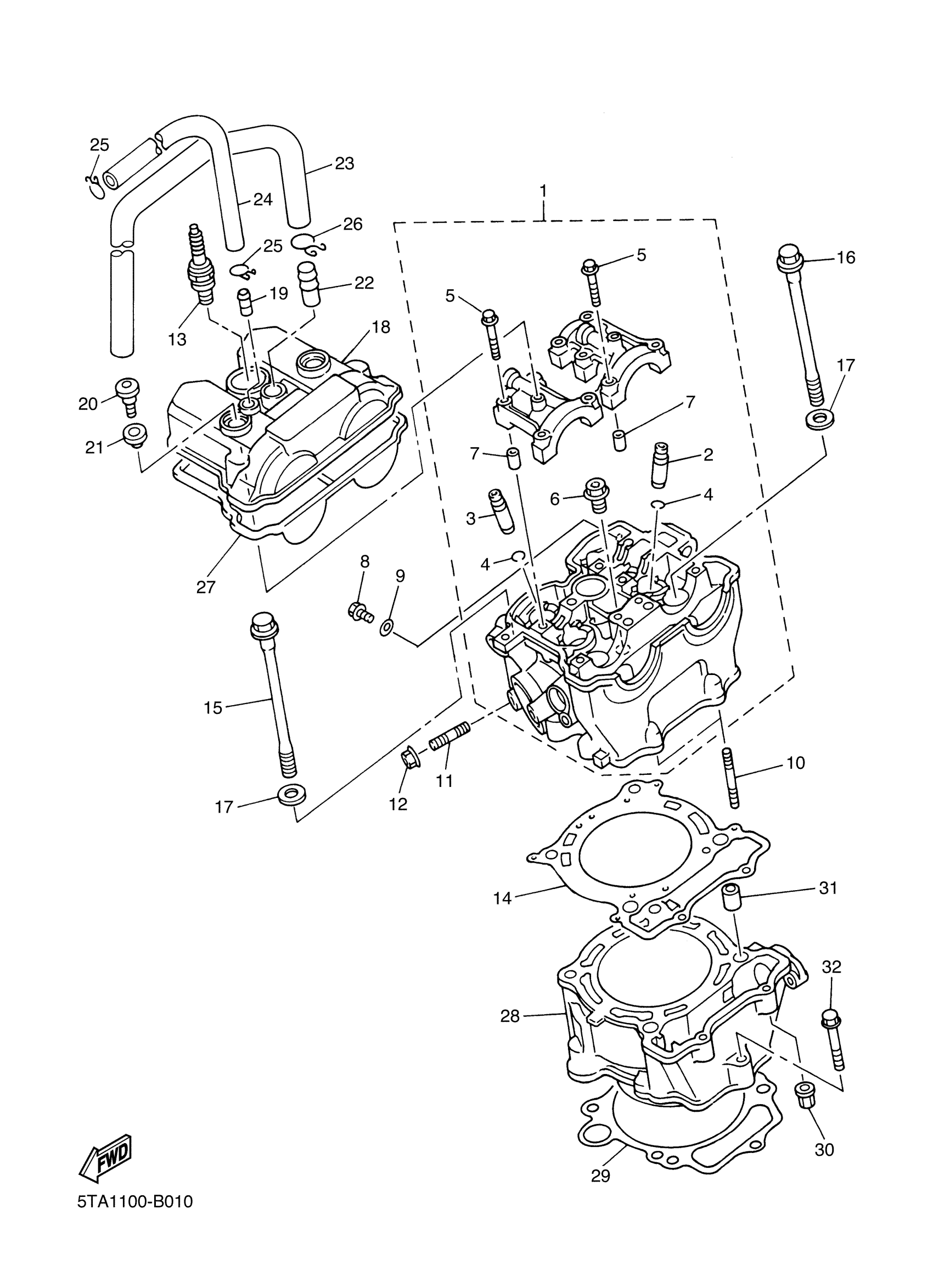

Yamaha YZ450FR (YZ450F) 5TA1 2003 CYLINDER Diagram

CYLINDER HEAD ASSY

5TA-11102-10-00

Unavailable

GUIDE, INTAKE VALVE

5TA-11133-10-00

$53.99

GUIDE, EXHAUST VALVE

5TA-11134-10-00

$43.99

CIRCLIP(1WG)

93440-10153-00

$2.39

BOLT, WASHER BASED

90105-06027-00

$7.49

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

GASKET 256113960000

90430-06014-00

Unavailable

BOLT, STUD (4KG1)

95617-06635-00

$8.49

BOLT, STUD(2GG)

95617-08620-00

$7.49

NUT, FLANGE(JN5)

95707-08500-00

$3.13

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

GASKET, CYLINDER HEAD 1

5TA-11181-00-00

$74.99

BOLT, WASHER BASED

90105-104A7-00

Unavailable

BOLT, WASHER BASED

90105-106A3-00

Unavailable

WASHER, PLATE

90201-10025-00

Unavailable

COVER, CYLINDER HEAD 1

5TA-11191-10-00

Unavailable

PIPE, BREATHER 2

5BE-11167-00-00

Unavailable

BOLT(4BP)

90109-066F0-00

Unavailable

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

PIPE, BREATHER 2

371-11167-01-00

Unavailable

PIPE, BREATHER 1

5TA-11166-00-00

Unavailable

HOSE (L700)

90445-117F2-00

Unavailable

CLIP(1JH)

90467-11106-00

Unavailable

CLIP (371)

90467-14015-00

Unavailable

GASKET, HEAD COVER 1

5TA-11193-00-00

Unavailable

CYLINDER 1

5TA-11311-12-00

Unavailable

GASKET, CYLINDER

5TA-11351-00-00

Unavailable

NUT (1AE)

90179-06500-00

Unavailable

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

BOLT, SMALL FLANGE

95027-06035-00

Unavailable
