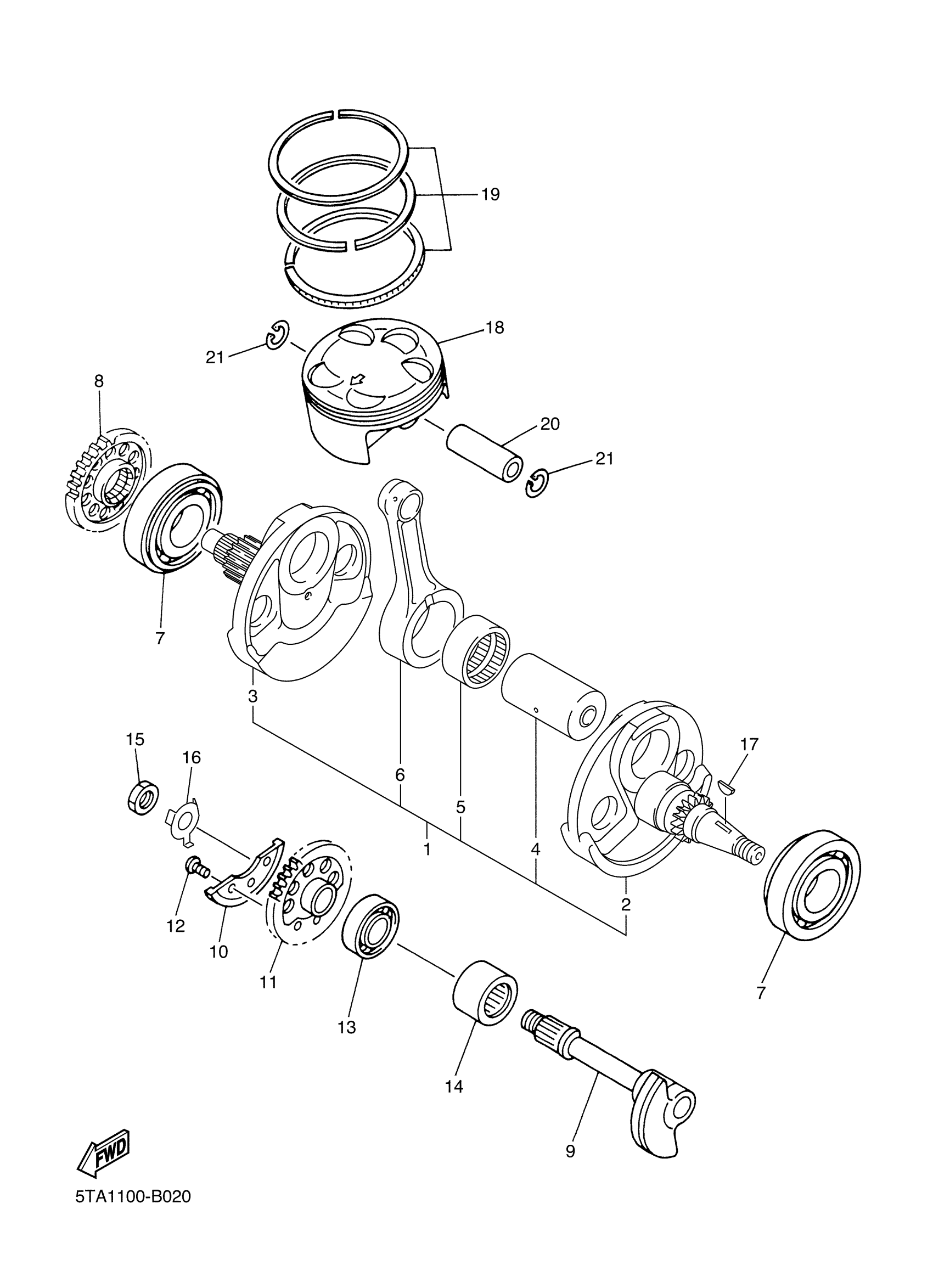

Yamaha YZ450FR (YZ450F) 5TA1 2003 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5XD-11400-01-00

Unavailable

2

. CRANK 1

5TA-11412-00-00

Unavailable

3

. CRANK 2

5TA-11422-00-00

Unavailable

4

PIN, CRANK 1

5TG-11681-01-00

$83.99

5

BEARING

93310-63412-00

$131.99

6

ROD, CONNECTING

5XD-11651-00-00

Unavailable

7

BEARING

93306-30633-00

$101.99

8

GEAR, DRIVE

5TA-11536-00-00

Unavailable

9

SHAFT 1

5TA-11455-11-00

$400.99

10

WEIGHT 1

5BE-11454-00-00

Unavailable

11

GEAR, BALANCE WEIGHT

5TA-11531-01-00

Unavailable

12

SCREW(2VK)

90149-06250-00

$8.49

13

BEARING(37F)

93306-20335-00

$35.99

14

BEARING, CYLINDRICAL(3YL)

93311-62574-00

$62.99

15

NUT, HEXAGON

90170-14171-00

$9.49

16

WASHER, LOCK(4GA)

90215-14287-00

Unavailable

17

KEY, WOODRUFF

90280-03001-00

Unavailable

18

PISTON (STD)

5TJ-11631-00-00

Unavailable

19

PISTON RING SET (STD)

5JG-11603-00-00

Unavailable

20

PIN, PISTON

5TA-11633-00-00

Unavailable

21

CIRCLIP

93420-18082-00

Unavailable
