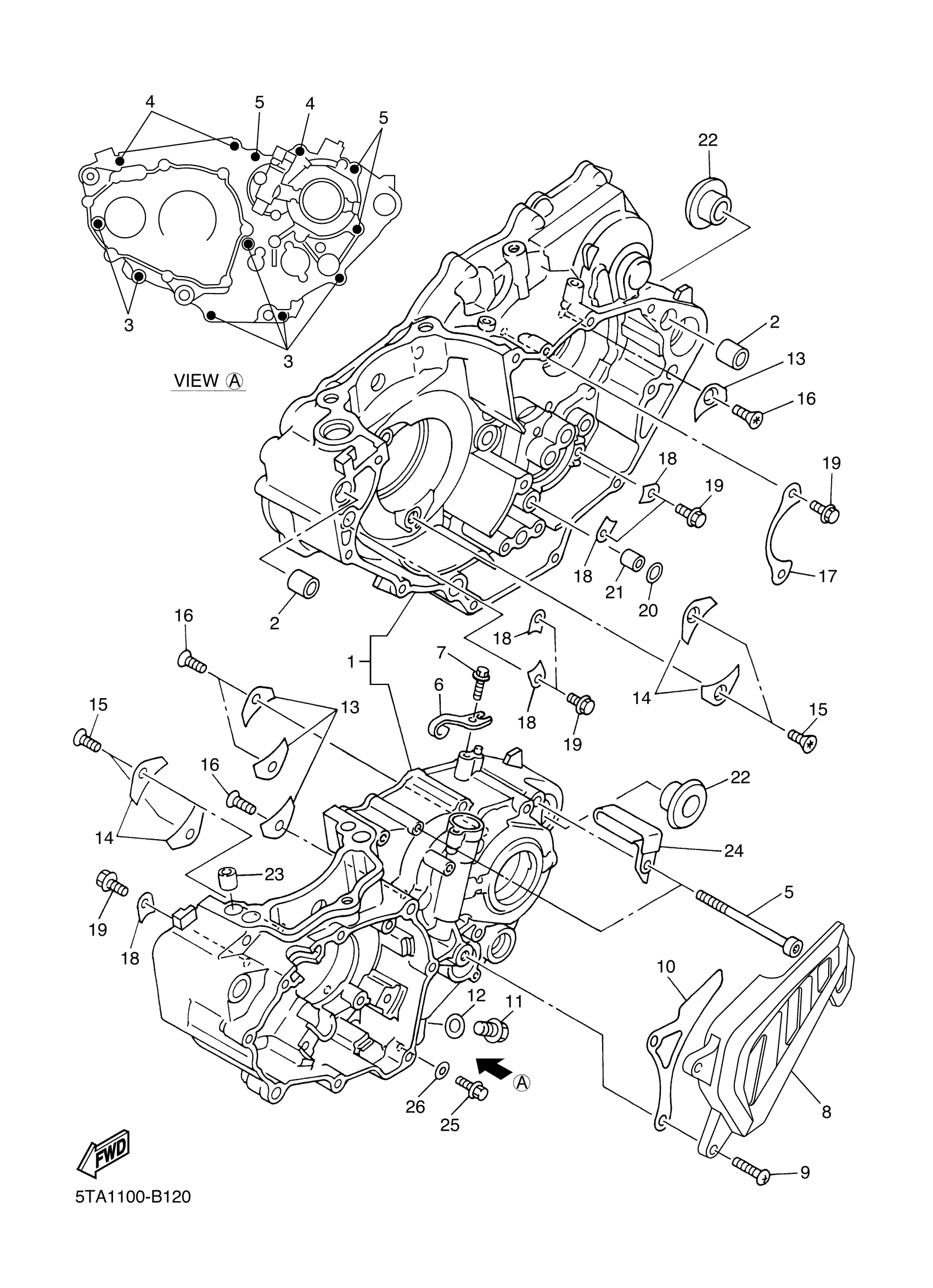

Yamaha YZ450FR (YZ450F) 5TA1 2003 CRANKCASE Diagram

CRANKCASE ASSY

5TA-15100-11-YX

Unavailable

PIN, DOWEL

99530-14016-00

$3.80

BOLT,SOCKET

91317-06050-00

$3.88

BOLT,SOCKET

91317-06060-00

$3.76

BOLT, SOCKET

91317-06075-00

$5.60

HOLDER, CLUTCH CABLE

5TA-15441-01-00

$21.99

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

COVER, CRANKCASE 2

5TA-15421-10-00

$33.99

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

GUIDE, CHAIN

5TA-17466-00-00

$24.99

BOLT, SMALL FLANGE

95027-10016-00

$8.49

GASKET

90430-10188-00

$6.99

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

PLATE, BEARING COVER

5BE-15383-01-00

$10.99

SCREW, FLATHEAD (2H7)

90149-06126-00

$9.49

SCREW, COUNTERSUNK

90151-06052-00

Unavailable

PLATE, COVER

4L0-17471-00-00

Unavailable

PLATE, STOPPER 2

5DH-18562-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

O-RING (371)

93210-10197-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

COLLAR

90387-18007-00

Unavailable

PIN, DOWEL(2VG)

99530-10116-00

Unavailable

CLAMP(4NX)

90461-10136-00

Unavailable

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

GASKET 256113960000

90430-06014-00

Unavailable
