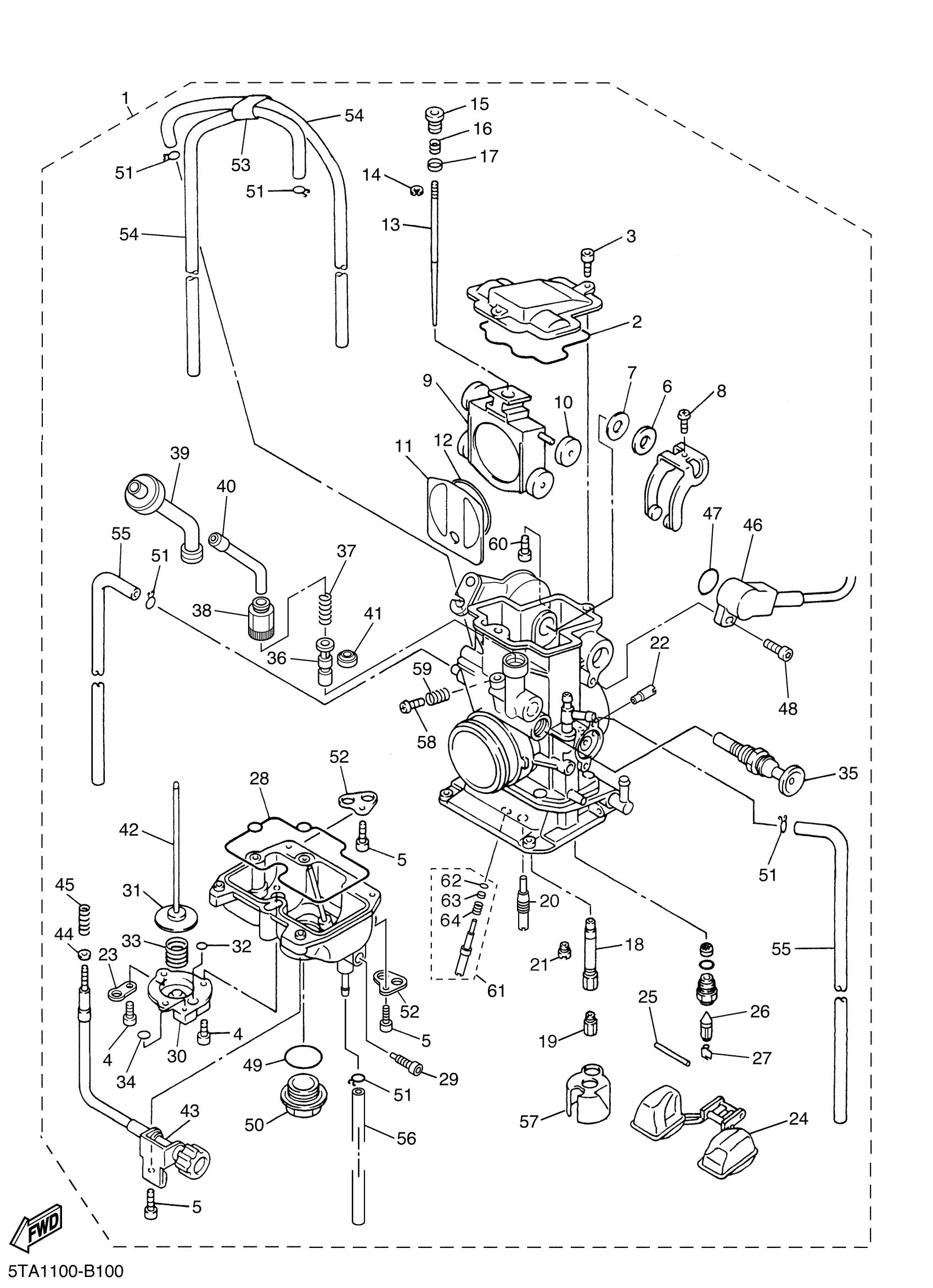

Yamaha YZ450FR (YZ450F) 5TA1 2003 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5TA-14101-00-00

Unavailable

2

GASKET

5JG-14959-00-00

$27.99

3

BOLT, SOCKET

91317-04012-00

$8.49

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

SCREW, PAN HEAD

98511-04012-00

Unavailable

6

WASHER, PLATE

90202-08045-00

$7.49

7

WASHER

5JG-14951-00-00

$4.84

8

SCREW, ADJUST

5JG-14522-09-00

$5.49

9

VALVE, VACUUM CONTROL

5JG-14388-00-00

$565.99

10

ROLLER

3TJ-14267-40-00

$17.49

11

VALVE, NEEDLE

5JG-14546-01-00

$276.99

12

SEAL

4FN-14997-00-00

$25.99

13

NEEDLE (#NDJQ)

5TA-14916-J1-00

Unavailable

13

NEEDLE (#NDJN)

5TA-14916-JN-00

Unavailable

13

NEEDLE (#NDJP)

5TA-14916-JP-00

$28.99

13

NEEDLE (#NDJR)

5TA-14916-JR-00

Unavailable

13

NEEDLE (#NDJS)

5TA-14916-JS-00

Unavailable

13

NEEDLE (#NCVQ)

5TA-14916-V1-00

Unavailable

13

. NEEDLE (#NCVM)

5TA-14916-VM-00

Unavailable

13

NEEDLE (#NCVN)

5TA-14916-VN-00

Unavailable

13

NEEDLE (#NCVP)

5TA-14916-VP-00

Unavailable

13

NEEDLE (#NCVR)

5TA-14916-VR-00

Unavailable

13

NEEDLE (#NCVS)

5TA-14916-VS-00

Unavailable

13

NEEDLE (#NCVT)

5TA-14916-VT-00

Unavailable

13

NEEDLE (#NCYQ)

5TA-14916-Y1-00

Unavailable

13

. NEEDLE (#NCYN)

5TA-14916-YN-00

Unavailable

13

. NEEDLE (#NCYP)

5TA-14916-YP-00

Unavailable

13

NEEDLE (#NCYR)

5TA-14916-YR-00

Unavailable

13

. NEEDLE (#NCYS)

5TA-14916-YS-00

Unavailable

14

CLIP

3TJ-14159-40-00

Unavailable

15

SCREW, ADJUST

5JG-14521-00-00

Unavailable

16

SPRING

5JG-14275-00-00

Unavailable

17

COLLAR

5JG-14264-00-00

Unavailable

18

JET, NEEDLE

5JG-14947-01-00

Unavailable

19

JET, MAIN (#155)

4MX-14943-38-00

Unavailable

19

JET, MAIN (#160)

4MX-14943-39-00

Unavailable

19

JET, MAIN (#165)

4MX-14943-40-00

Unavailable

19

JET, MAIN (#170)

4MX-14943-41-00

Unavailable

19

JET, MAIN (#175)

4MX-14943-42-00

Unavailable

19

. JET, MAIN (#152)

4MX-14943-88-00

Unavailable

19

JET, MAIN (#158)

4MX-14943-89-00

Unavailable

19

JET, MAIN (#162)

4MX-14943-90-00

Unavailable

19

JET, MAIN (#168)

4MX-14943-91-00

Unavailable

19

JET, MAIN (#172)

4MX-14943-92-00

Unavailable

19

JET, MAIN (#178)

4MX-14943-93-00

Unavailable

20

JET, SLOW (#35)

4MX-14948-01-00

Unavailable

20

JET, SLOW (#38)

4MX-14948-02-00

Unavailable

20

JET (#40)

4MX-14948-03-00

Unavailable

20

JET, PILOT (#42)

4MX-14948-04-00

Unavailable

20

JET, PILOT (#45)

4MX-14948-05-00

Unavailable

20

JET, PILOT (#48)

4MX-14948-06-00

Unavailable

20

JET, PILOT (#50)

4MX-14948-07-00

Unavailable

21

JET

3TJ-1494F-12-00

Unavailable

21

JET

3TJ-1494F-13-00

Unavailable

21

JET

3TJ-1494F-14-00

Unavailable

21

JET

3TJ-1494F-15-00

Unavailable

21

JET

3TJ-1494F-16-00

Unavailable

21

JET

3TJ-1494F-17-00

Unavailable

21

JET (#78)

3TJ-1494F-18-00

Unavailable

21

JET (#80)

3TJ-1494F-19-00

Unavailable

21

JET (#82)

3TJ-1494F-20-00

Unavailable

22

JET,SAJ (#100)

5TA-14943-27-00

Unavailable

23

. PLATE

5PA-14146-00-00

Unavailable

24

FLOAT

4SR-14985-00-00

Unavailable

25

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

26

VALVE, NEEDLE

4MX-14392-00-00

Unavailable

27

CLIP

633-14159-00-00

Unavailable

28

GASKET, FLOAT CHAMBER

5JG-14984-00-00

Unavailable

29

PLUG, DRAIN

3TJ-14191-40-00

Unavailable

30

COVER 1

3TJ-14293-40-00

Unavailable

31

DIAPHRAGM ASSY

5JG-14940-17-00

Unavailable

31

DIAPHRAGM ASSY

5JG-14940-18-00

Unavailable

31

DIAPHRAGM ASSY

5JG-14940-19-00

Unavailable

32

GASKET

3TJ-14536-40-00

Unavailable

33

SPRING, DIAPHRAGM

3TJ-14933-40-00

Unavailable

34

. O-RING

6H4-14561-00-00

Unavailable

35

PLUNGER, STARTER

5TA-14171-00-00

Unavailable

36

PLUNGER, STARTER

5TA-14371-00-00

Unavailable

37

SPRING, PLUNGER

5TA-14335-00-00

Unavailable

38

SCREW

5TA-14991-00-00

Unavailable

39

CAP, PLUNGER

5TA-14374-00-00

Unavailable

40

GUIDE, CABLE

5TA-14155-00-00

Unavailable

41

SEAL

5TA-14997-00-00

Unavailable

42

ROD, STARTER

5JG-14379-00-00

Unavailable

43

SCREW, THROTTLE

5JG-14922-00-00

Unavailable

44

WASHER, PLATE(3TJ)

90201-08410-00

Unavailable

45

SPRING, THROTTLE STOP

5TA-14934-00-00

Unavailable

46

THROTTLE SENSOR ASSY

5TA-85885-01-00

Unavailable

47

O-RING

33D-14562-00-00

Unavailable

48

SCREW

1DX-14216-00-00

Unavailable

49

O-RING

4MX-14561-00-00

Unavailable

50

PLUG, SCREW

4MX-14115-00-00

Unavailable

51

CLIP

3TJ-14137-40-00

Unavailable

52

PLATE

5BE-14146-00-00

Unavailable

53

HOLDER

5TA-14261-00-00

Unavailable

54

PIPE

5TA-14196-00-00

Unavailable

55

PIPE

5TA-14197-00-00

Unavailable

56

. HOSE

5JG-14987-00-00

Unavailable

57

PLATE

5JG-14346-00-00

Unavailable

58

SCREW

5JG-14565-00-00

Unavailable

59

SPRING, ADJUST SCREW

5JG-14531-00-00

Unavailable

60

SCREW

5JG-14591-09-00

Unavailable

61

PILOT SCREW SET

3TJ-14105-40-00

Unavailable

62

O-RING

8ES-14147-00-00

Unavailable

63

WASHER

3TJ-14952-40-00

Unavailable

64

COIL, SPRING

3TJ-14160-40-00

Unavailable
