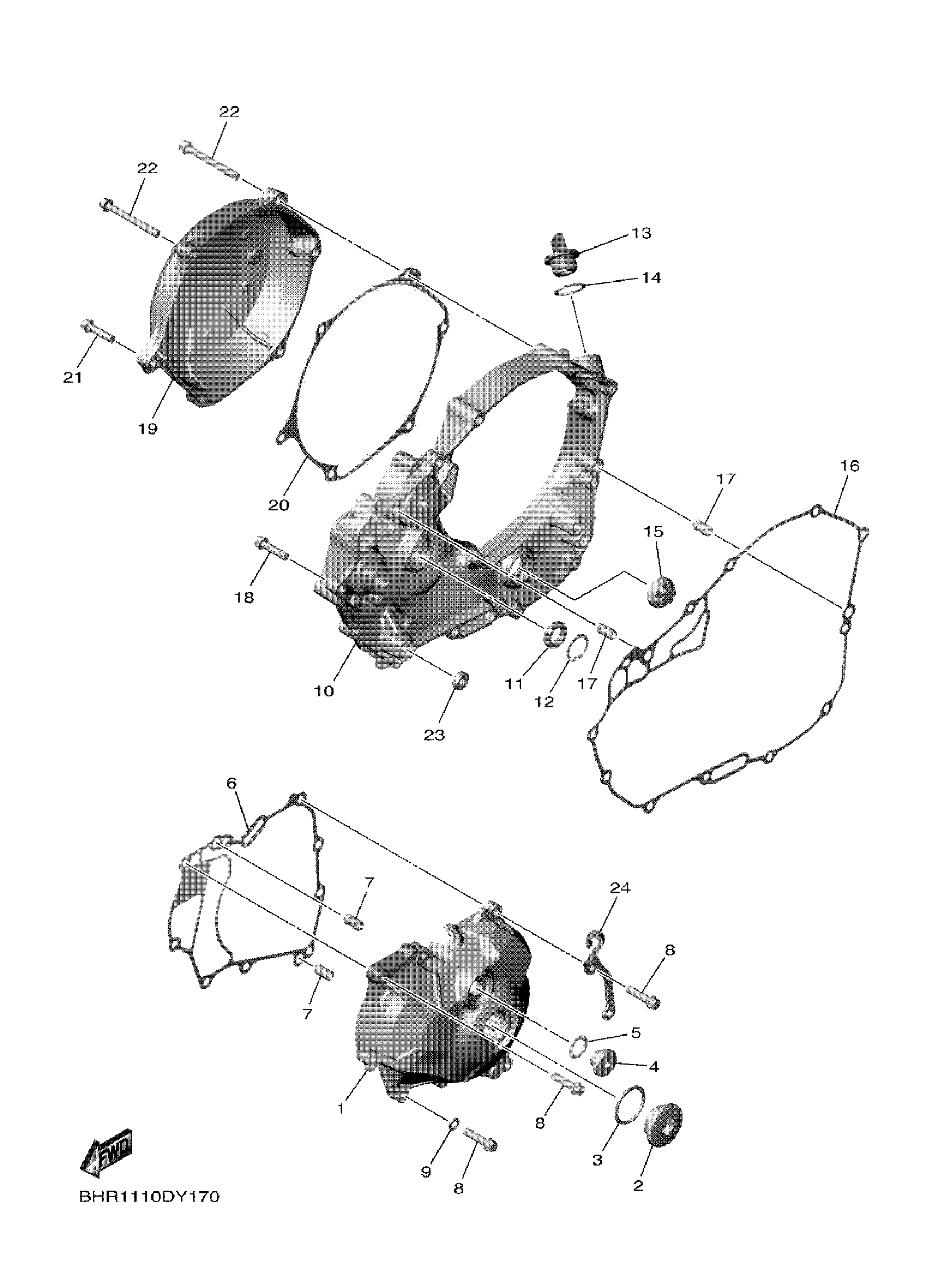

Yamaha YZ450FPME (YZ450F MONSTER) BHR5 2023 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

BHR-15411-00-00

$152.52

2

PLUG, STRAIGHT SCREW

90340-27009-00

$33.82

3

O-RING(1KT)

93210-27778-00

$6.43

4

PLUG, STRAIGHT SCREW

90340-14021-00

$25.03

5

O-RING (2H9)

93210-14369-00

$5.42

6

GASKET, CRANKCASE

BHR-15451-00-00

Unavailable

7

PIN, DOWEL(3XW)

91808-16023-00

$5.26

8

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

9

GASKET 256113960000

90430-06014-00

Unavailable

10

COVER, CRANKCASE 3

BHR-15431-00-00

$174.99

11

OIL SEAL(4GY)

93101-14164-00

$9.05

12

CIRCLIP

99009-22500-00

$5.76

13

PLUG, OIL

3Y1-15363-10-00

$15.94

14

O-RING (646)

93210-19123-00

Unavailable

15

GAUGE, LEVEL

3Y1-15361-00-00

$23.80

16

GASKET, CRANKCASE

BHR-15462-00-00

Unavailable

17

PIN, DOWEL(3XW)

91808-16023-00

$5.26

18

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

19

COVER, 1

BHR-15415-00-00

Unavailable

20

GASKET

BHR-15453-00-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

22

BOLT, FLANGE DEEP

95E32-06055-00

Unavailable

23

SEAT, CHECK BALL

583-13113-00-00

Unavailable

24

HOLDER, CLUTCH CAB

BHR-15441-00-00

Unavailable
