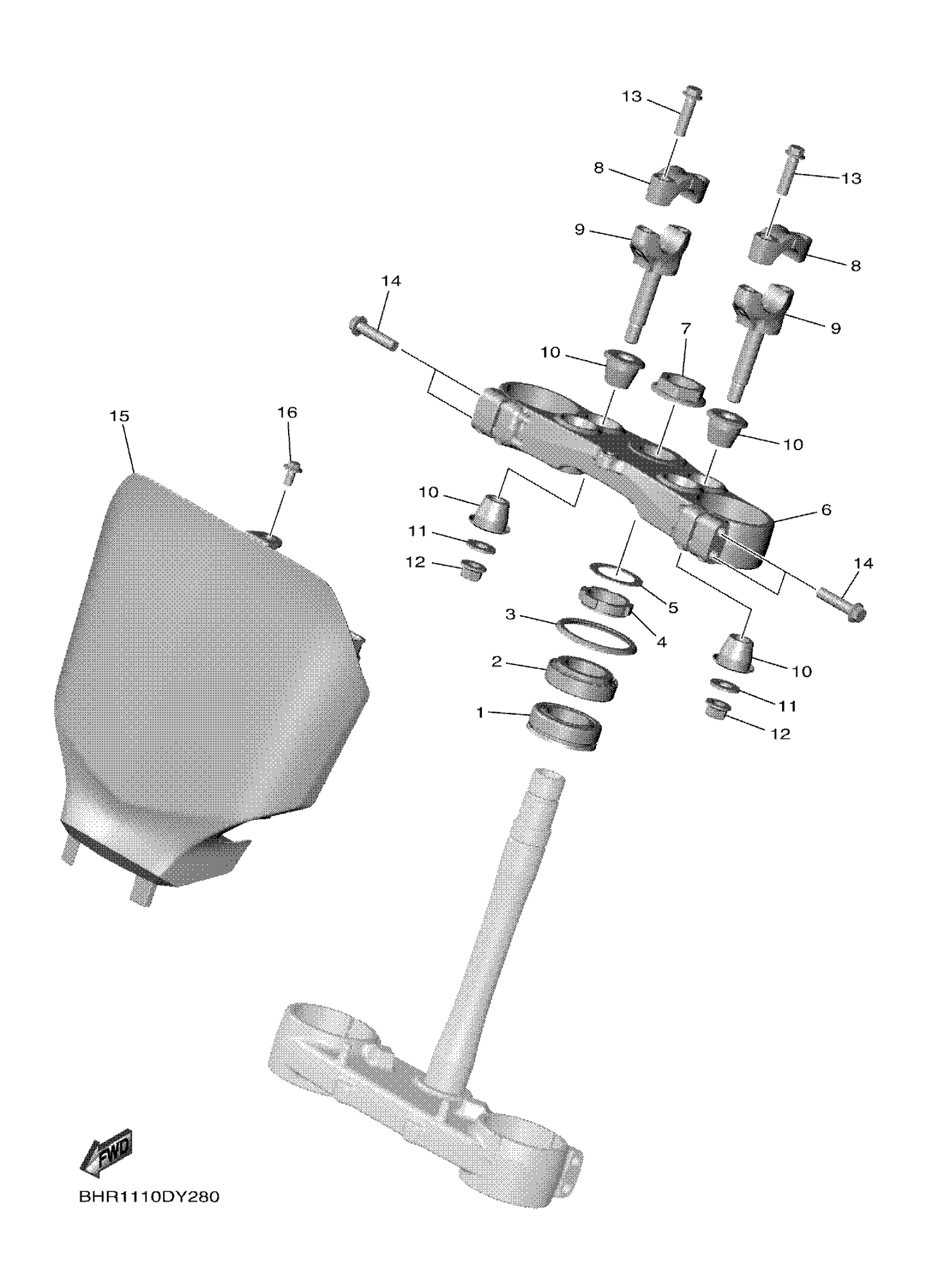

Yamaha YZ450FPL (YZ450F) BHR1 2023 STEERING Diagram

#

Description
Price

1

BEARING(4SR)

93332-00081-00

$58.99

2

BEARING(4EW)

93332-00078-00

$64.99

3

COVER, BALL RACE 2

17D-23416-50-00

$33.99

4

NUT

90179-28015-00

$37.99

5

WASHER, PLATE(1YW)

90201-286K9-00

$7.49

6

CROWN, HANDLE

B2W-23435-00-00

Unavailable

7

NUT

90179-24004-00

$26.99

8

HOLDER, HANDLE UPPER

B2W-23441-00-00

$31.99

9

HOLDER, HANDLE LOWER

B2W-23442-10-00

$36.99

10

HOLDER, DAMPER

1SL-23434-00-00

$9.99

11

WASHER, PLATE

90201-10035-00

$4.19

12

NUT, S/L FLANGE

95602-10200-00

$4.82

13

BOLT, FLANGE DEEP RECESS

95E34-08030-00

$1.75

14

BOLT, FLANGE DEEP RECESS

95E34-08035-00

$2.65

15

PLATE, NUMBER

BHR-23485-00-00

$27.99

16

BOLT, FLANGE

90105-06064-00

Unavailable
