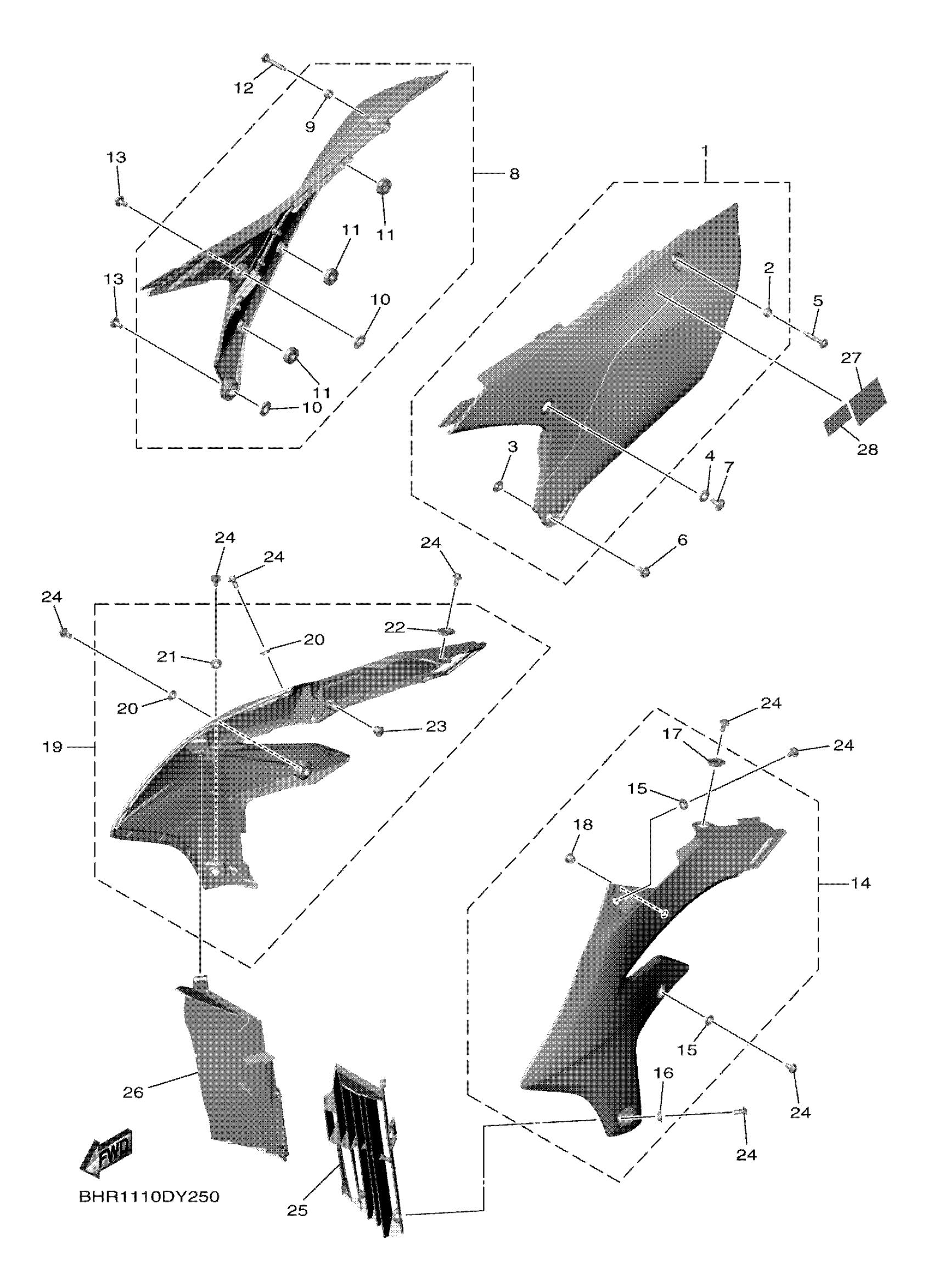

Yamaha YZ450FPL (YZ450F) BHR1 2023 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

BHR-21710-00-00

$32.99

2

COLLAR (5V7)

90387-08057-00

$9.49

3

COLLAR

17D-14449-00-00

$7.99

4

COLLAR

90387-09022-00

$14.99

5

BOLT, FLANGE

90105-06179-00

$4.61

6

BOLT, WITH WASHER(4ES)

90119-06217-00

$8.49

7

BOLT,HEX. SOCKET B

90111-06196-00

$2.12

8

SIDE COVER ASSY 2

BHR-21720-00-00

$32.99

9

COLLAR (5V7)

90387-08057-00

$9.49

10

COLLAR

5TA-21749-00-00

$11.99

11

GROMMET

1SL-21719-00-00

$16.49

12

BOLT, FLANGE

90105-06179-00

$4.61

13

BOLT, WITH WASHER(4ES)

90119-06217-00

$8.49

14

SIDE COVER ASSY 3

BHR-21730-00-00

$32.99

14

SIDE COVER INSERT

BHR-217R0-J0-00

$106.99

15

COLLAR

90387-07045-00

Unavailable

16

COLLAR

90387-08086-00

Unavailable

17

COLLAR

1SL-21748-00-00

Unavailable

18

GROMMET (397)

90480-10068-00

Unavailable

19

SIDE COVER ASSY 4

BHR-21740-00-00

Unavailable

19

SIDE COVER INSERT

BHR-217S0-J0-00

Unavailable

20

COLLAR

90387-07045-00

Unavailable

21

COLLAR

90387-08086-00

Unavailable

22

COLLAR

1SL-21748-00-00

Unavailable

23

GROMMET (397)

90480-10068-00

Unavailable

24

BOLT, FLANGE

90105-06064-00

Unavailable

25

PANEL 1

BHR-2172A-00-00

Unavailable

26

PANEL 2

BHR-2172F-00-00

Unavailable

27

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

28

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable
