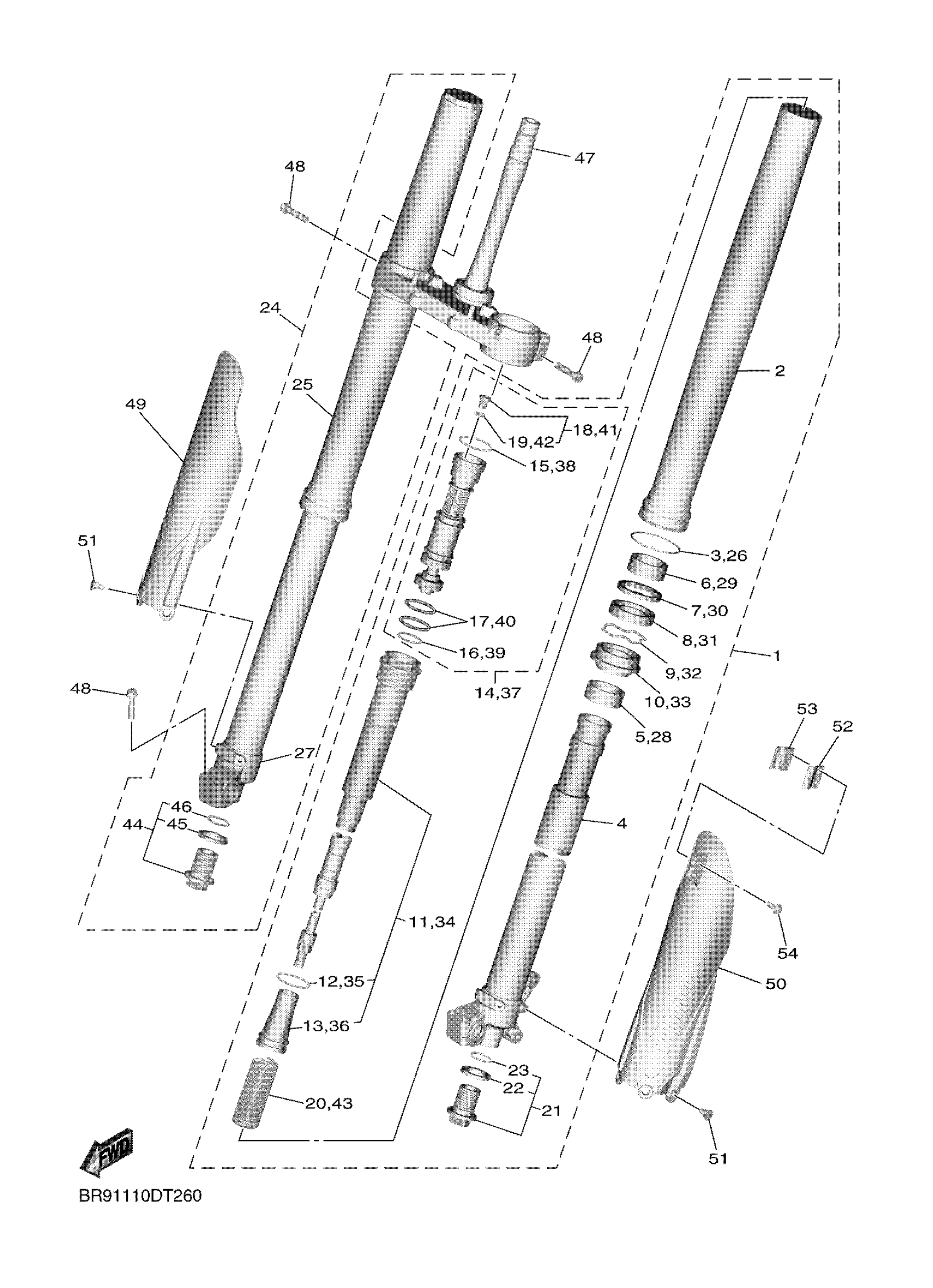

Yamaha YZ450FNME (YZ450F MONSTER) B2WG 2022 FRONT FORK Diagram
#
Description
Price
16
O-RING
1C3-23188-P0-00
Unavailable
17
O-RING
1AE-23147-01-00
Unavailable
18
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
19
O-RING
1C3-23188-R1-00
Unavailable
20
SPRING, FRONT FORK (K=5.0)
BR9-23141-70-00
Unavailable
21
BOLT, CAP
5XC-23111-01-00
Unavailable
22
GASKET
2HH-23158-L0-00
Unavailable
23
GASKET
276-23114-02-00
Unavailable
24
FRONT FORK ASSY (R.H)
B2W-23103-20-00
Unavailable
27
INNER TUBE COMP.1
BR9-23110-01-00
Unavailable
39
O-RING
1C3-23188-P0-00
Unavailable
40
O-RING
1AE-23147-01-00
Unavailable
41
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
42
O-RING
1C3-23188-R1-00
Unavailable
43
SPRING, FRONT FORK (K=5.0)
BR9-23141-70-00
Unavailable
44
BOLT, CAP
5XC-23111-01-00
Unavailable
45
GASKET
2HH-23158-L0-00
Unavailable
46
GASKET
276-23114-02-00
Unavailable
47
UNDER BRACKET COMP.
33D-23340-20-00
Unavailable
48
BOLT, FLANGE DEEP RECESS
95E34-08035-00
Unavailable
49
PROTECTOR 2
17D-2315J-H0-00
Unavailable
50
PROTECTOR 1
17D-2315H-H0-00
Unavailable
51
BOLT
90109-06232-00
Unavailable
52
CLAMP
17D-23466-00-00
Unavailable
53
CLAMP
17D-23467-00-00
Unavailable
54
BOLT, FLANGE
90105-06170-00
Unavailable
