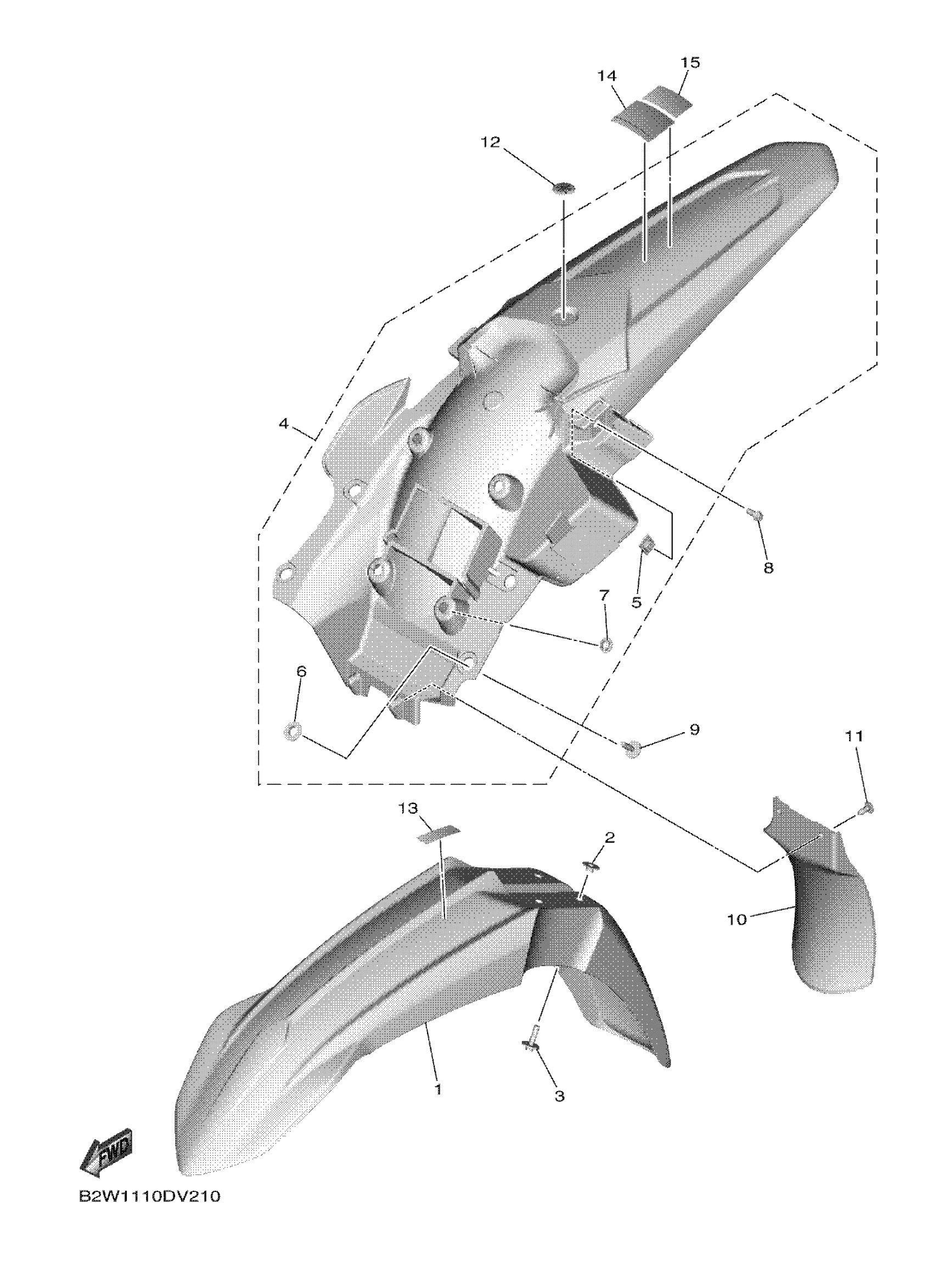

Yamaha YZ450FNL (YZ450F) B2WC 2022 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BR9-21511-00-00

$26.67

2

COLLAR

90387-06259-00

$5.76

3

BOLT, WITH WASHER

90119-06268-00

$1.93

4

REAR FENDER COMP.

BR9-21610-00-00

$31.85

5

NUT, REAR FENDER

5XE-21635-10-00

$11.84

6

COLLAR

5BE-21749-00-00

$4.48

7

COLLAR

90387-08086-00

$5.05

8

BOLT, FLANGE

90105-06100-00

$5.20

9

BOLT, WITH WASHER

90119-06268-00

$1.93

10

GUARD, FLAP

3D7-21642-00-00

$22.84

11

SCREW, TAPPING

97702-60016-00

$1.15

12

TUNING FORK MARK

5FK-2175C-31-00

$3.38

13

LABEL, CAUTION

3FB-2415E-02-00

$3.90

14

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

15

PLATE, COMPETITION USA

17D-2812P-00-00

$5.70
