Description

Price

1

FENDER, FRONT

BR9-21511-20-00

$55.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, WITH WASHER

90119-06268-00

$2.28

4

REAR FENDER COMP.

BR9-21610-20-00

$80.99

5

NUT, REAR FENDER

5XE-21635-10-00

$13.49

6

COLLAR

5BE-21749-00-00

$6.99

7

COLLAR

90387-08086-00

$7.49

8

BOLT, FLANGE

90105-06100-00

$7.49

9

BOLT, WITH WASHER

90119-06268-00

$2.28

10

GUARD, FLAP

3D7-21642-00-00

$28.99

11

SCREW, TAPPING

97702-60016-00

$2.19

12

TUNING FORK MARK

5FK-2175C-31-00

$5.49

13

LABEL, CAUTION

3FB-2415E-02-00

$4.84

14

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

15

PLATE, COMPETITION USA

17D-2812P-00-00

$7.99

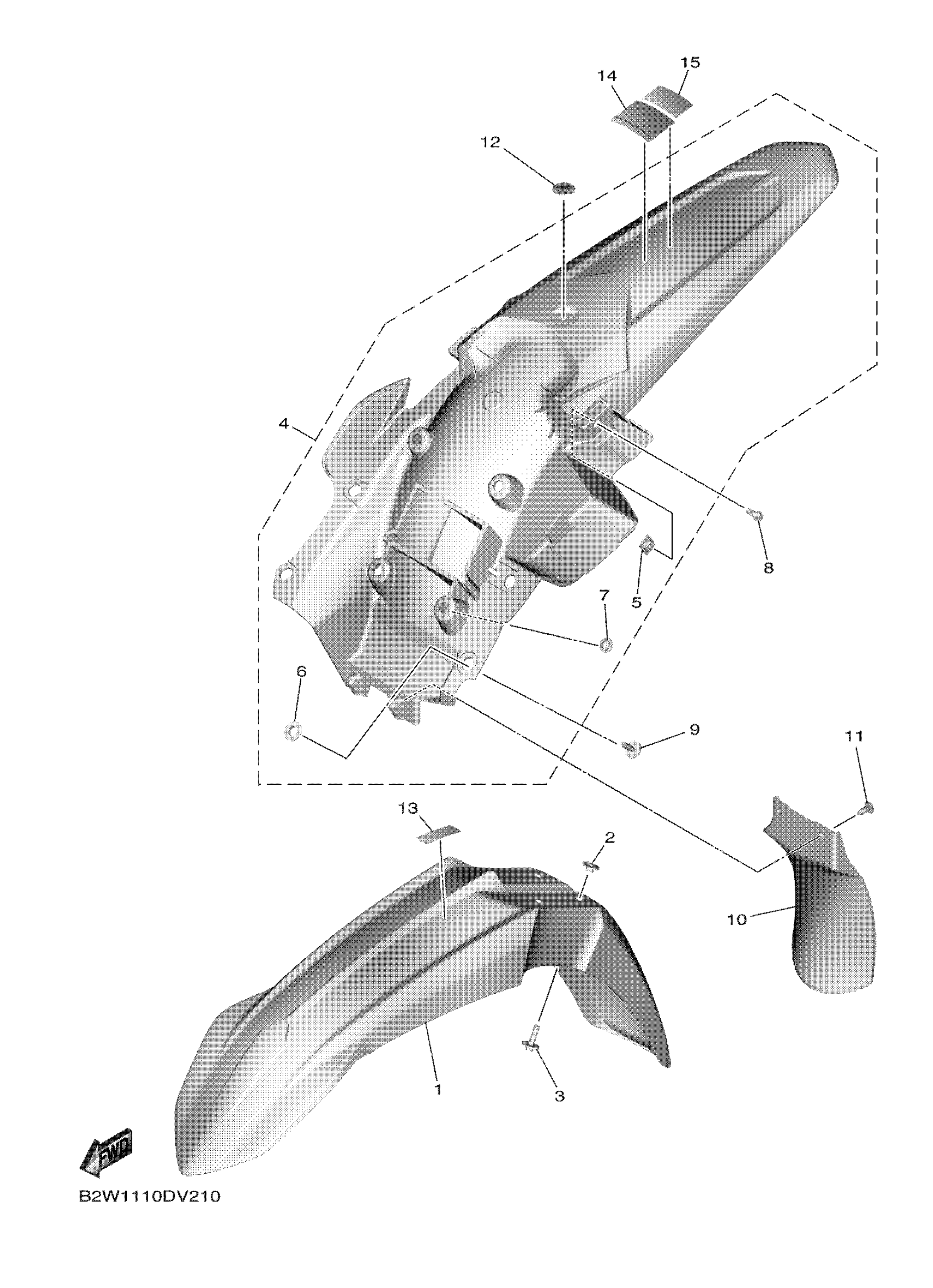

Yamaha YZ450FLL (YZ450F) B2W1 2020 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER

REAR FENDER COMP.

NUT, REAR FENDER

COLLAR

COLLAR

BOLT, FLANGE

BOLT, WITH WASHER

GUARD, FLAP

SCREW, TAPPING

TUNING FORK MARK

LABEL, CAUTION

LABEL, CAUTION

PLATE, COMPETITION USA
