Description

Price

1

PLUG CAP ASSY

B2W-82370-00-00

Unavailable

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

GASKET

90430-10004-00

$7.49

4

NEUTRAL SWITCH ASSY

B11-82540-01-00

$60.99

5

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$8.49

6

O-RING

93210-21001-00

$5.60

7

ENGINE CONTROL UNIT ASSY

B2W-8591A-00-00

Unavailable

8

BOLT, FLANGE

90105-05005-00

$1.20

9

COLLAR

90387-05048-00

$5.60

10

GROMMET

90480-13029-00

$5.60

11

IGNITION COIL ASSY

BR9-82310-01-00

$53.99

12

CORE, SIDE

BR9-8231U-00-00

$21.99

13

GROMMET

90480-11015-00

$3.66

14

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60

15

COMMUNICATION CONT. UNIT ASSY

BR9-85810-02-00

$1,089.99

16

WIRE, LEAD

BR9-85721-00-00

Unavailable

17

BAND

BR9-85546-00-00

Unavailable

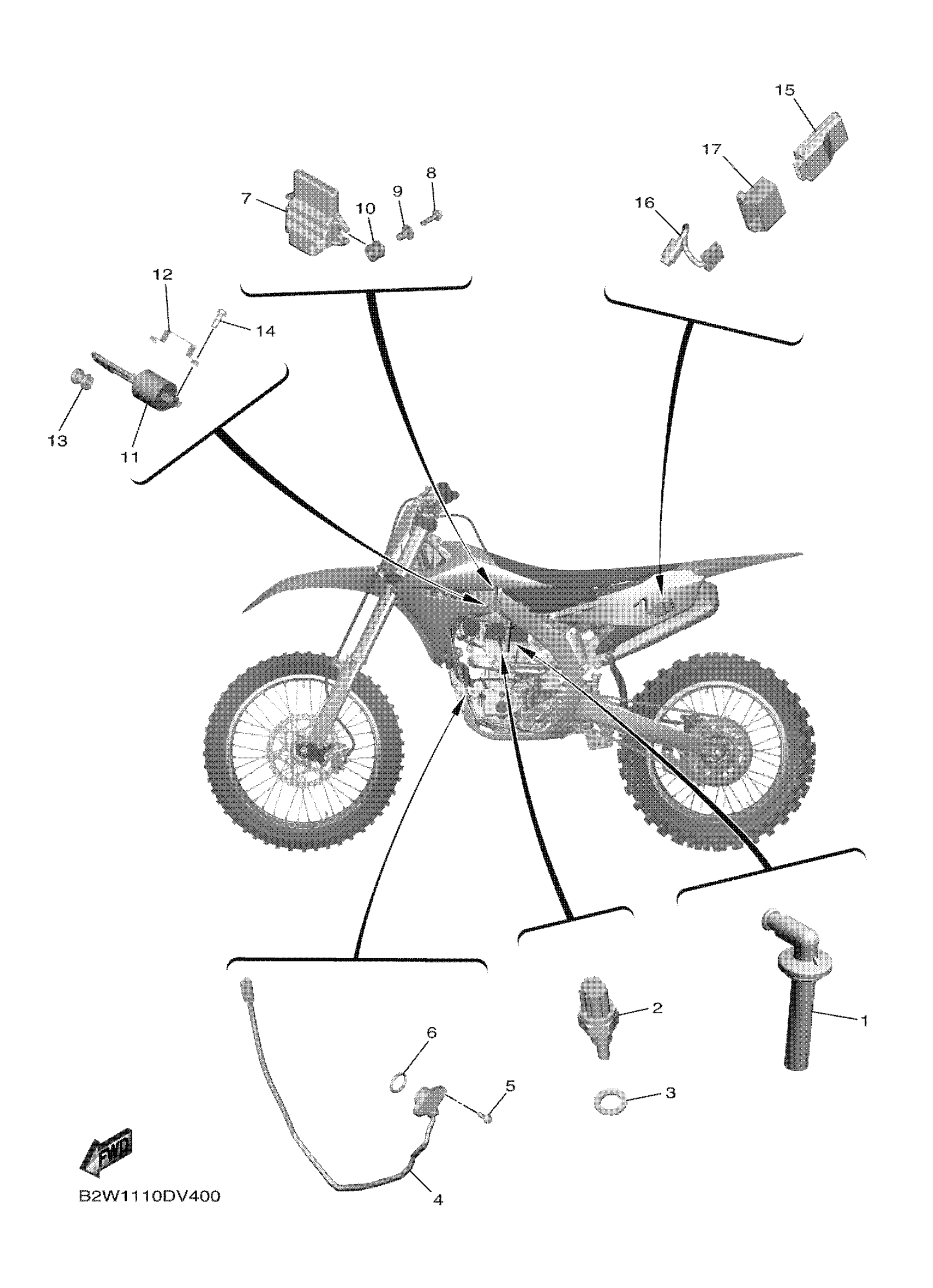

Yamaha YZ450FLL (YZ450F) B2W1 2020 ELECTRICAL 1 Diagram

PLUG CAP ASSY

THERMO UNIT

GASKET

NEUTRAL SWITCH ASSY

BOLT, HEXAGON SOCKET HEAD

O-RING

ENGINE CONTROL UNIT ASSY

BOLT, FLANGE

COLLAR

GROMMET

IGNITION COIL ASSY

CORE, SIDE

GROMMET

BOLT, FLANGE DEEP RECESS

COMMUNICATION CONT. UNIT ASSY

WIRE, LEAD

BAND
