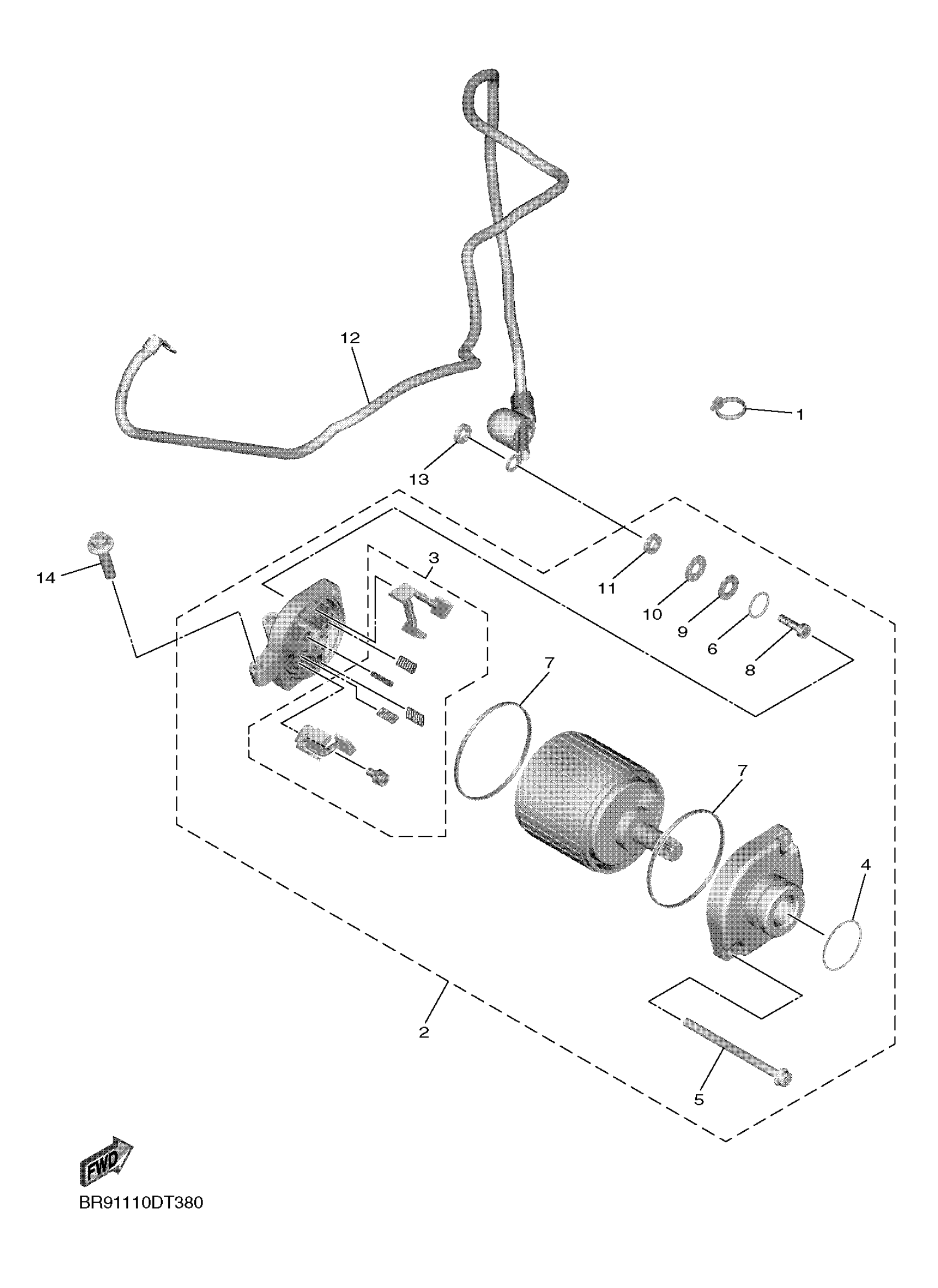

Yamaha YZ450FKW (YZ450F) BR950 2019 STARTING MOTOR Diagram

#

Description
Price

1

CLAMP

90465-10098-00

Unavailable

2

MOTOR ASSY

BR9-81890-00-00

$411.99

3

BRUSH SET

2CR-81801-10-00

Unavailable

4

O-RING(1RL)

93210-25711-00

$7.49

5

SCREW

BR9-81846-00-00

Unavailable

6

O-RING 1

BR9-8182L-00-00

Unavailable

7

GASKET

BR9-81861-00-00

Unavailable

8

SCREW 2

2CR-81828-10-00

$6.99

9

WASHER, PLAIN

8FA-8181L-00-00

Unavailable

10

WASHER

1D7-81835-00-00

$2.29

11

NUT(650)

95380-06700-00

$8.49

12

CORD COMP.

BR9-8183G-00-00

$177.99

13

NUT(650)

95380-06700-00

$8.49

14

BOLT, HEXAGON SOCKET HEAD

90110-06349-00

$3.61
