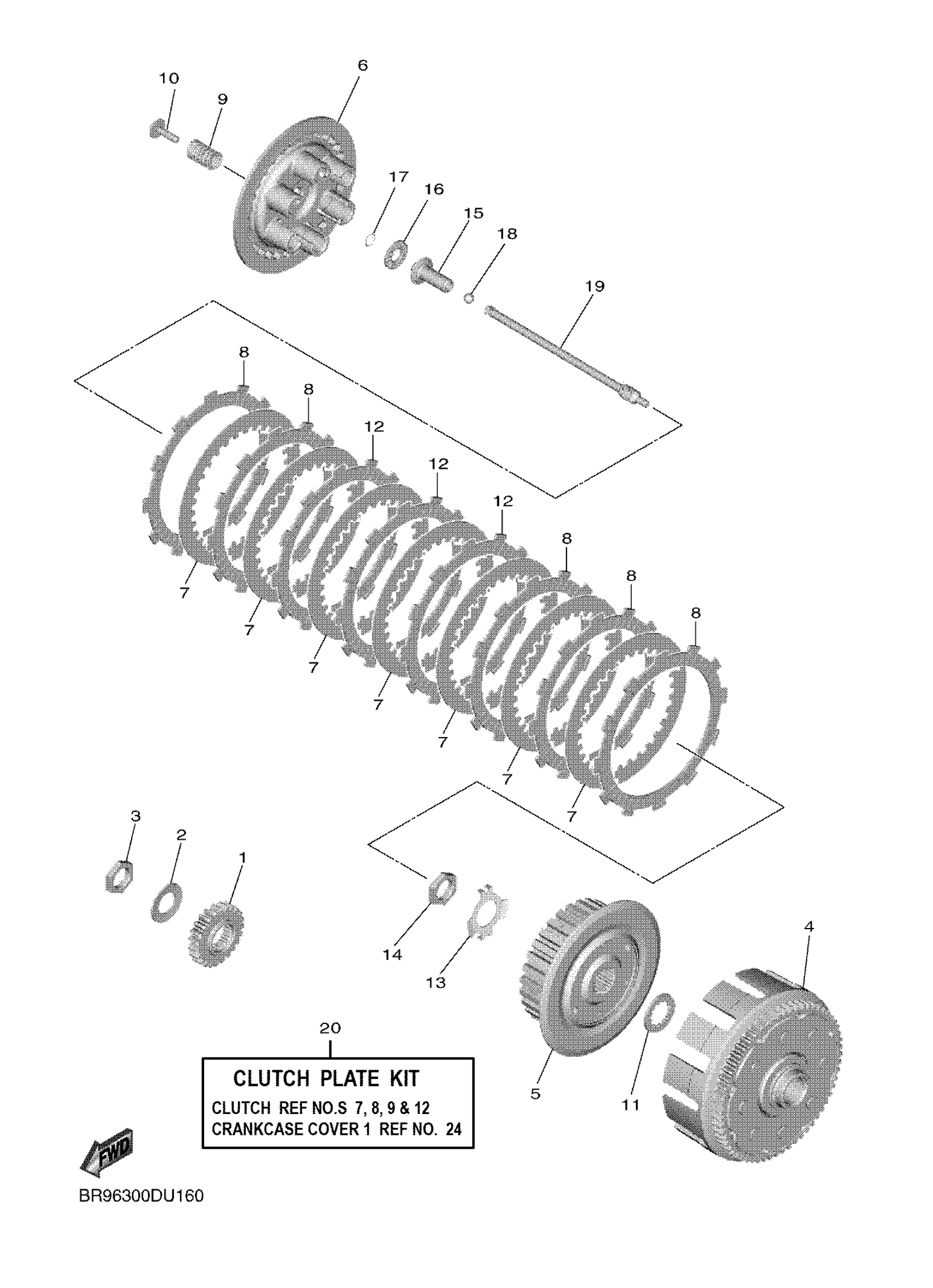

Yamaha YZ450FKW (YZ450F) BR950 2019 CLUTCH Diagram

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$147.99

WASHER, CONICAL SPRING

90208-20007-00

$7.49

NUT, HEXAGON (8F3)

90170-20211-00

$4.72

PRIMARY DRIVEN GEAR COMP.

BR9-16150-00-00

$534.99

BOSS, CLUTCH

5TA-16371-20-00

$139.99

PLATE, PRESSURE 1

BR9-16351-00-00

$75.99

PLATE, CLUTCH 1

BR9-16324-10-00

$10.49

PLATE, FRICTION

5TA-16321-00-00

$25.99

SPRING, COMPRESSION

90501-240A5-00

$8.49

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

PLATE, THRUST 1

5XD-16154-00-00

$15.49

PLATE, FRICTION

5VY-16321-00-00

$31.99

WASHER, LOCK

90215-20005-00

$8.49

NUT (34L)

90170-20327-00

$18.99

ROD, PUSH 1

BR9-16356-00-00

$74.99

BEARING, THRUST(2FL)

93340-21209-00

Unavailable

CIRCLIP (4G0)

93440-10085-00

Unavailable

BALL (498)

93511-32027-00

Unavailable

ROD, PUSH 2

1SL-16357-10-00

Unavailable

CLUTCH PLATE KIT

BR9-W001G-00-00

Unavailable
