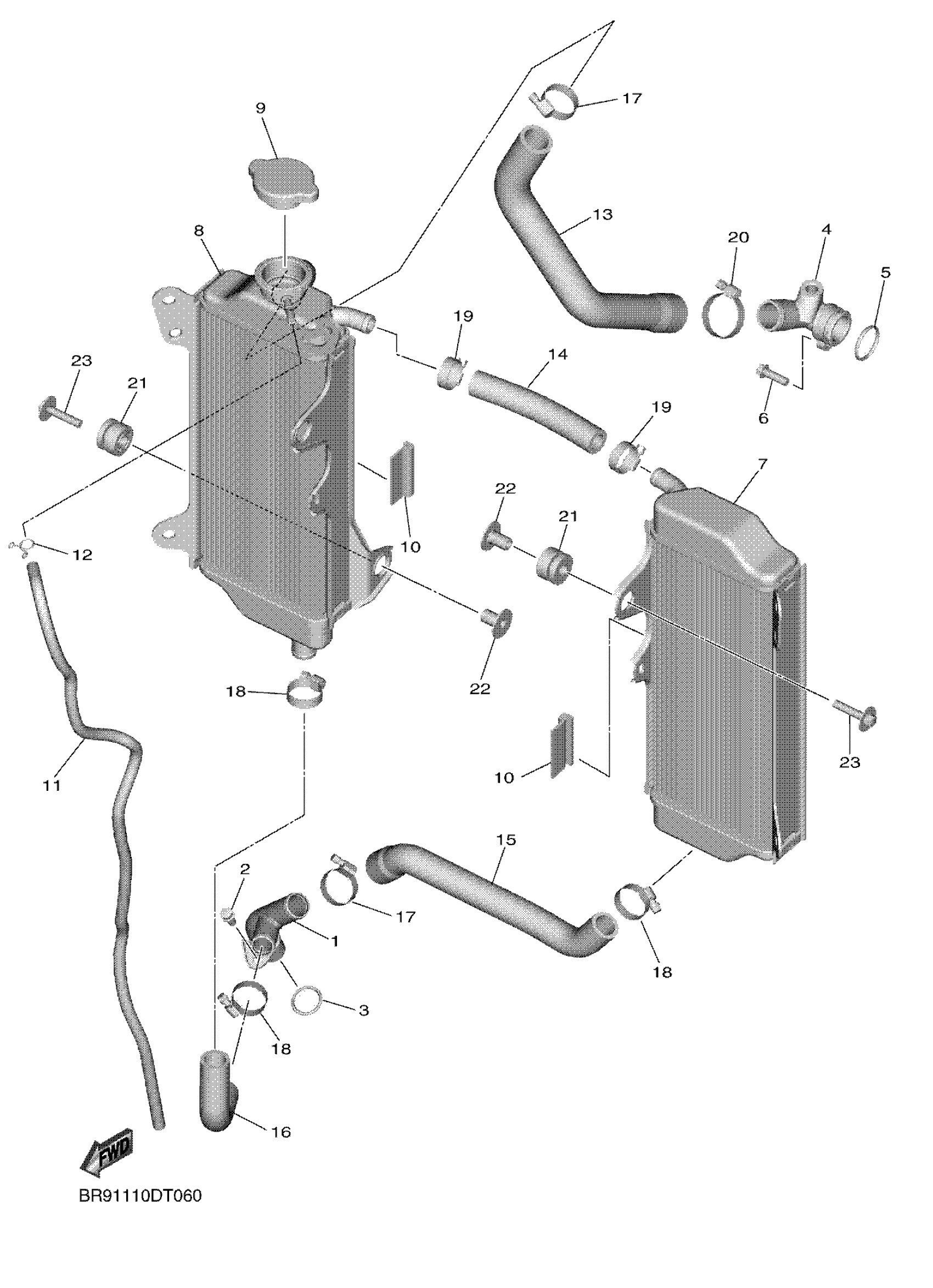

Yamaha YZ450FJW (YZ450F) BR910 2018 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

BR9-12482-00-00

$72.99

2

BOLT, FLANGE

95022-06012-00

$3.29

3

O-RING (5U8)

93210-16500-00

$7.49

4

JOINT

1SL-12446-00-00

$48.99

5

O-RING(59V)

93210-24253-00

$7.49

6

BOLT, FLANGE

95022-06020-00

$3.62

7

RADIATOR ASSY

BR9-1240A-00-00

$212.99

8

RADIATOR COMP

BR9-12461-00-00

$212.99

9

CAP, RADIATOR

5SL-12462-01-00

$29.99

10

DAMPER, RADIATOR

33D-12465-00-00

$14.49

11

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

12

CLIP

90467-090A2-00

$4.41

13

HOSE 1

BR9-12576-00-00

$14.99

14

HOSE 2

BR9-12577-00-00

$5.60

15

HOSE 3

BR9-12578-00-00

$16.99

16

HOSE 4

BR9-12579-01-00

Unavailable

17

HOSE CLAMP ASSY

90450-28001-00

Unavailable

18

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

19

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

20

HOSE CLAMP ASSY

90450-32003-00

Unavailable

21

GROMMET

90480-15012-00

Unavailable

22

COLLAR

90387-06065-00

Unavailable

23

BOLT, WITH WASHER

90119-06262-00

Unavailable
