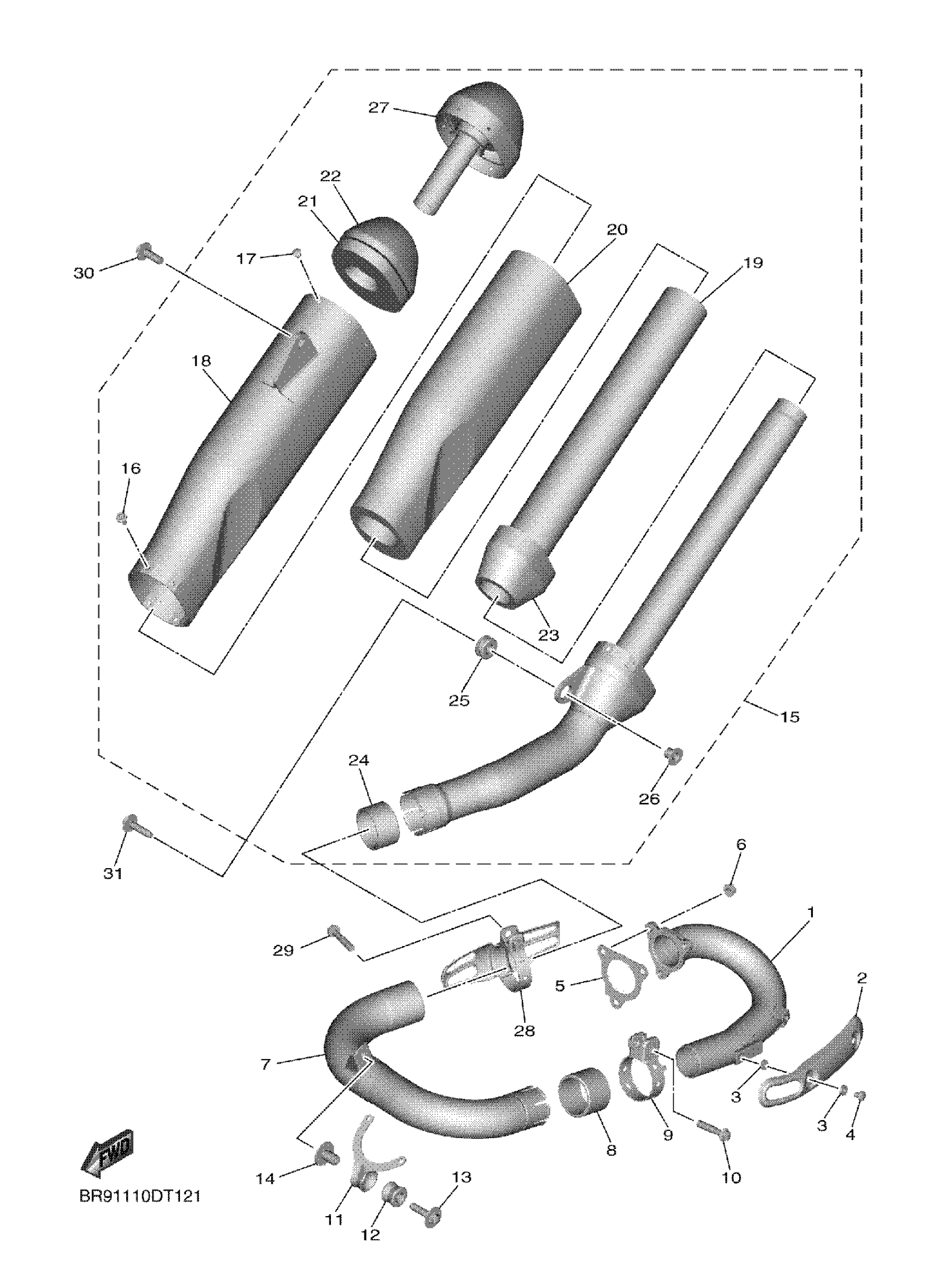

Yamaha YZ450FJW (YZ450F) BR910 2018 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

BR9-14611-00-00

$120.44

2

PROTECTOR, EXHAUST PIPE

1SL-14628-00-00

$32.59

3

WASHER, PLATE

90201-05017-00

Unavailable

4

SCREW, BIND(2TV)

98980-06008-00

$0.58

5

GASKET, EXHAUST PIPE

33D-14613-00-00

$5.87

6

NUT, FLANGE(7NB)

95780-06500-00

$1.88

7

PIPE, EXHAUST 2

BR9-14621-00-00

$232.32

8

GASKET, SILENCER

5PX-14755-00-00

$23.18

9

BAND, SILENCER

1SM-14788-00-00

$18.53

10

BOLT, FLANGE(4KG)

95024-08040-00

$5.75

11

STAY, EXHAUST PIPE 1

BR9-14639-00-00

$15.64

12

DAMPER, MUFFLER

5VY-14747-00-00

$11.48

13

BOLT, WITH WASHER

90119-08174-00

$4.62

14

COLLAR

90387-08081-00

$6.94

15

SILENCER ASSY

BR9-14750-00-00

$770.99

16

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

Unavailable

17

RIVET, BLIND

90267-48021-00

Unavailable

18

BODY, SILENCER

BR9-1466G-00-00

Unavailable

19

FIBER

1SL-1469A-00-00

Unavailable

20

FIBER 2

1SL-1477E-00-00

Unavailable

21

FIBER

1SL-1469F-00-00

Unavailable

22

FIBER 4

1SL-1477G-00-00

Unavailable

23

FIBER 5

1SL-1477H-00-00

Unavailable

24

GASKET, MUFFLER

1SL-14714-00-00

Unavailable

25

GROMMET

90480-20005-00

Unavailable

26

COLLAR

90387-08110-00

Unavailable

27

CAP, SILENCER 2

B11-14798-00-00

Unavailable

28

BAND, MUFFLER

BR9-14715-00-00

Unavailable

29

BOLT, FLANGE(4KG)

95024-08040-00

$5.75

30

BOLT, WITH WASHER

90119-08170-00

Unavailable

31

BOLT, WITH WASHER

90119-08173-00

Unavailable
