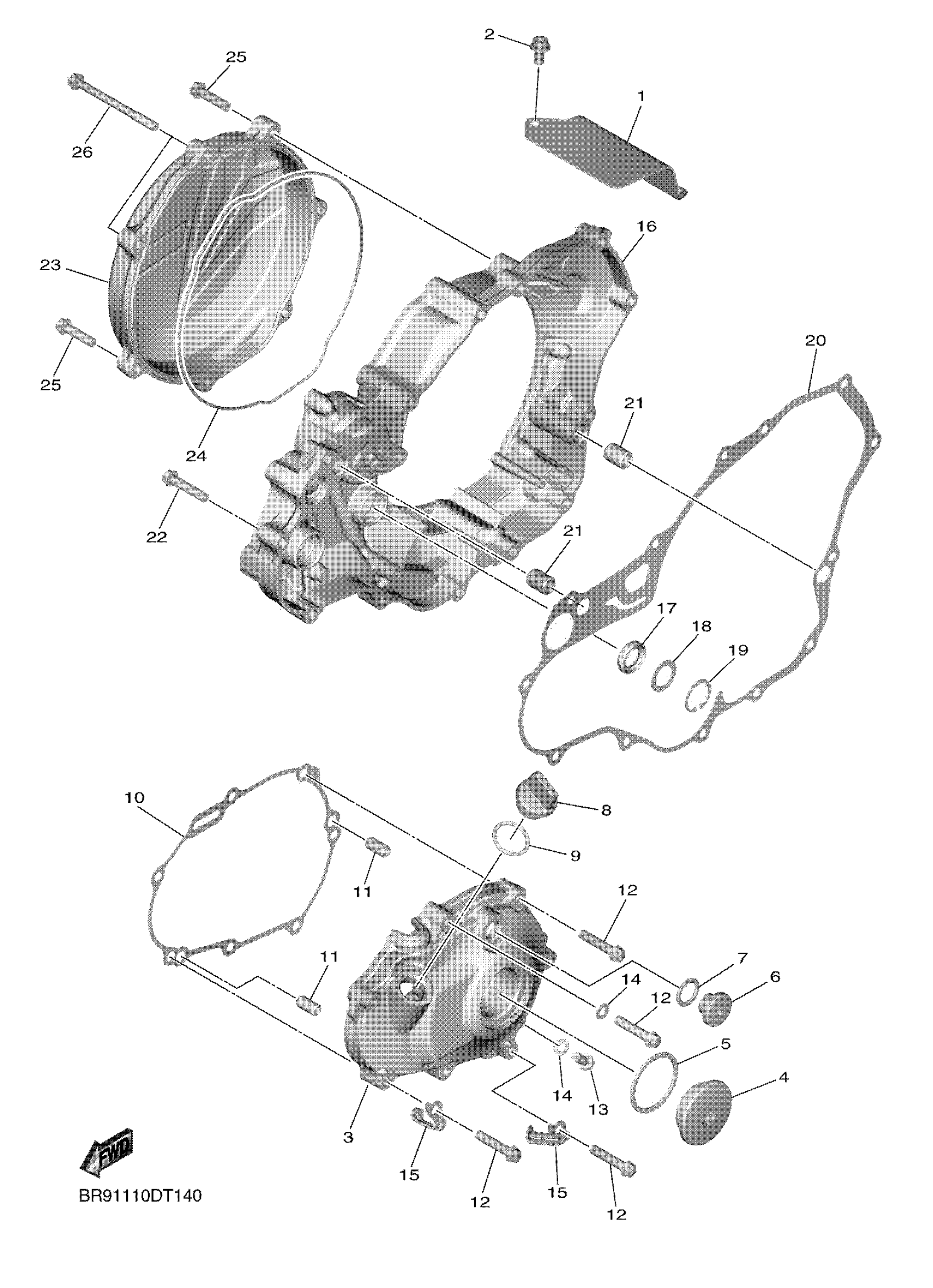

Yamaha YZ450FJW (YZ450F) BR910 2018 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, STARTING MOTOR

BR9-15436-00-00

Unavailable

2

BOLT(1KT)

90109-060E9-00

$10.49

3

COVER, CRANKCASE 1

BR9-15411-00-00

$140.99

4

PLUG, STRAIGHT SCREW

90340-36007-00

$26.99

5

O-RING

93210-35804-00

$0.48

6

PLUG, STRAIGHT SCREW

90340-14021-00

$31.99

7

O-RING (2H9)

93210-14369-00

$7.49

8

PLUG, OIL

3Y1-15363-10-00

$18.49

9

O-RING (646)

93210-19123-00

Unavailable

10

GASKET, CRANKCASE COVER 1

BR9-15451-00-00

$12.49

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

BOLT, FLANGE

95022-06030-00

$3.72

13

BOLT, FLANGE

95022-06012-00

$3.29

14

GASKET 256113960000

90430-06014-00

Unavailable

15

CLAMP

90465-08062-00

$4.29

16

COVER, CRANKCASE 3

BR9-15431-00-00

Unavailable

17

OIL SEAL(4GY)

93101-14164-00

Unavailable

18

WASHER (566)

90201-15701-00

Unavailable

19

CIRCLIP

99009-22500-00

Unavailable

20

GASKET, CRANKCASE COVER 3

BR9-15462-00-00

Unavailable

21

PIN, DOWEL

99530-12016-00

Unavailable

22

BOLT, FLANGE

95022-06030-00

$3.72

23

COVER, 1

33D-15415-20-00

Unavailable

24

GASKET

33D-15453-00-00

Unavailable

25

BOLT, FLANGE

95022-06025-00

Unavailable

26

BOLT, FLANGE

95022-06070-00

Unavailable
