Description

Price

1

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$147.99

2

WASHER, CONICAL SPRING

90208-20007-00

$7.49

3

NUT, HEXAGON (8F3)

90170-20211-00

$4.72

4

PRIMARY DRIVEN GEAR COMP.

BR9-16150-00-00

$534.99

5

BOSS, CLUTCH

5TA-16371-20-00

$139.99

6

PLATE, PRESSURE 1

BR9-16351-00-00

$75.99

7

PLATE, CLUTCH 1

BR9-16324-10-00

$10.49

8

PLATE, FRICTION

5TA-16321-00-00

$25.99

9

SPRING, COMPRESSION

90501-240A5-00

$8.49

10

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

11

PLATE, THRUST 1

2JN-16154-00-00

$20.99

12

PLATE, FRICTION

5VY-16321-00-00

$31.99

13

WASHER, CONICAL SPRING

90208-20007-00

$7.49

14

WASHER, PLATE

90201-20030-00

$7.49

15

NUT, HEXAGON (8F3)

90170-20211-00

$4.72

16

ROD, PUSH 1

BR9-16356-00-00

Unavailable

17

BEARING, THRUST(2FL)

93340-21209-00

Unavailable

18

CIRCLIP (4G0)

93440-10085-00

Unavailable

19

BALL (498)

93511-32027-00

Unavailable

20

ROD, PUSH 2

1SL-16357-10-00

Unavailable

21

CLUTCH PLATE KIT

BR9-W001G-00-00

Unavailable

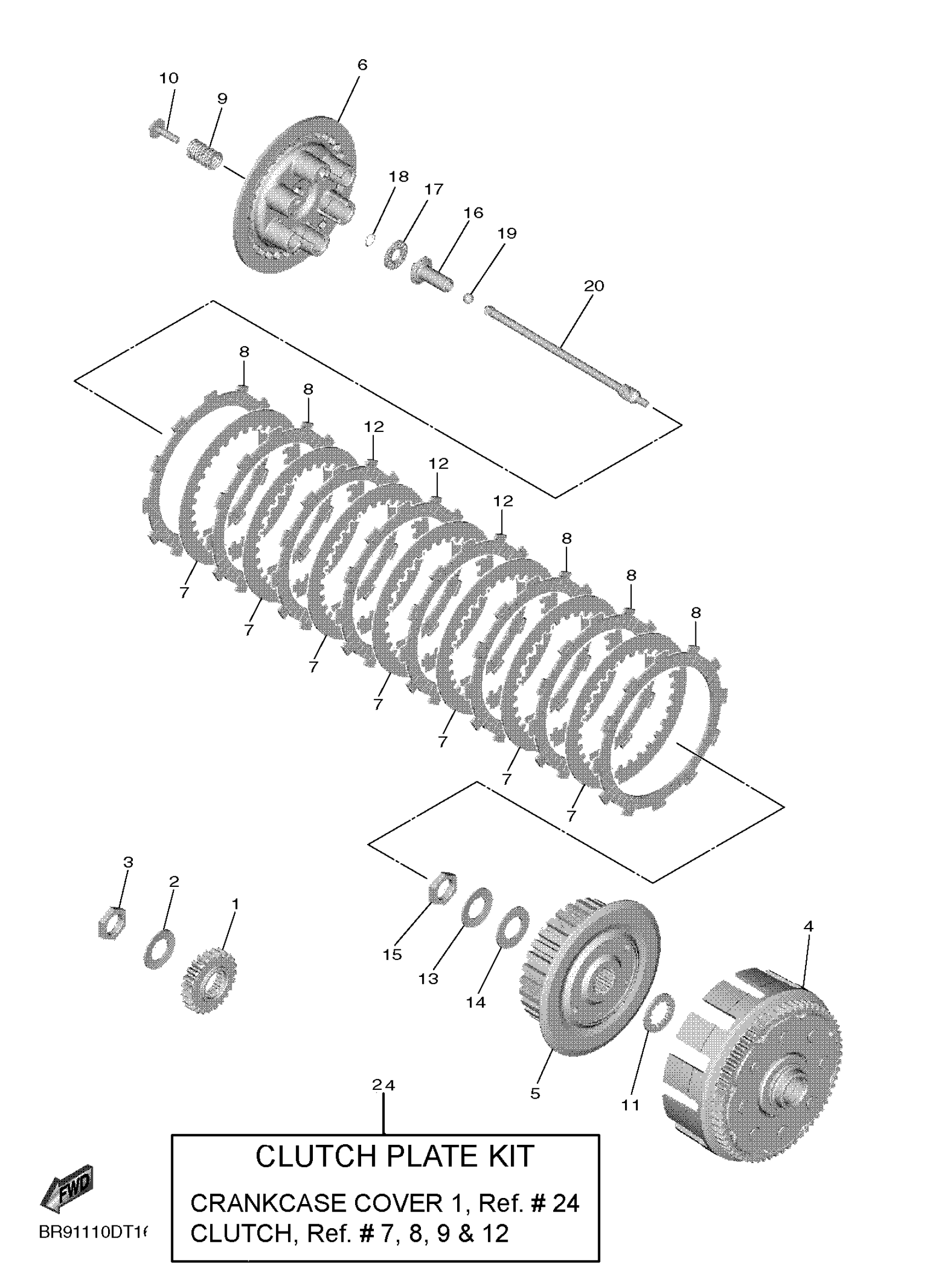

Yamaha YZ450FJW (YZ450F) BR910 2018 CLUTCH Diagram

GEAR, PRIMARY DRIVE

WASHER, CONICAL SPRING

NUT, HEXAGON (8F3)

PRIMARY DRIVEN GEAR COMP.

BOSS, CLUTCH

PLATE, PRESSURE 1

PLATE, CLUTCH 1

PLATE, FRICTION

SPRING, COMPRESSION

SCREW, WITH WASHER (583)

PLATE, THRUST 1

PLATE, FRICTION

WASHER, CONICAL SPRING

WASHER, PLATE

NUT, HEXAGON (8F3)

ROD, PUSH 1

BEARING, THRUST(2FL)

CIRCLIP (4G0)

BALL (498)

ROD, PUSH 2

CLUTCH PLATE KIT
