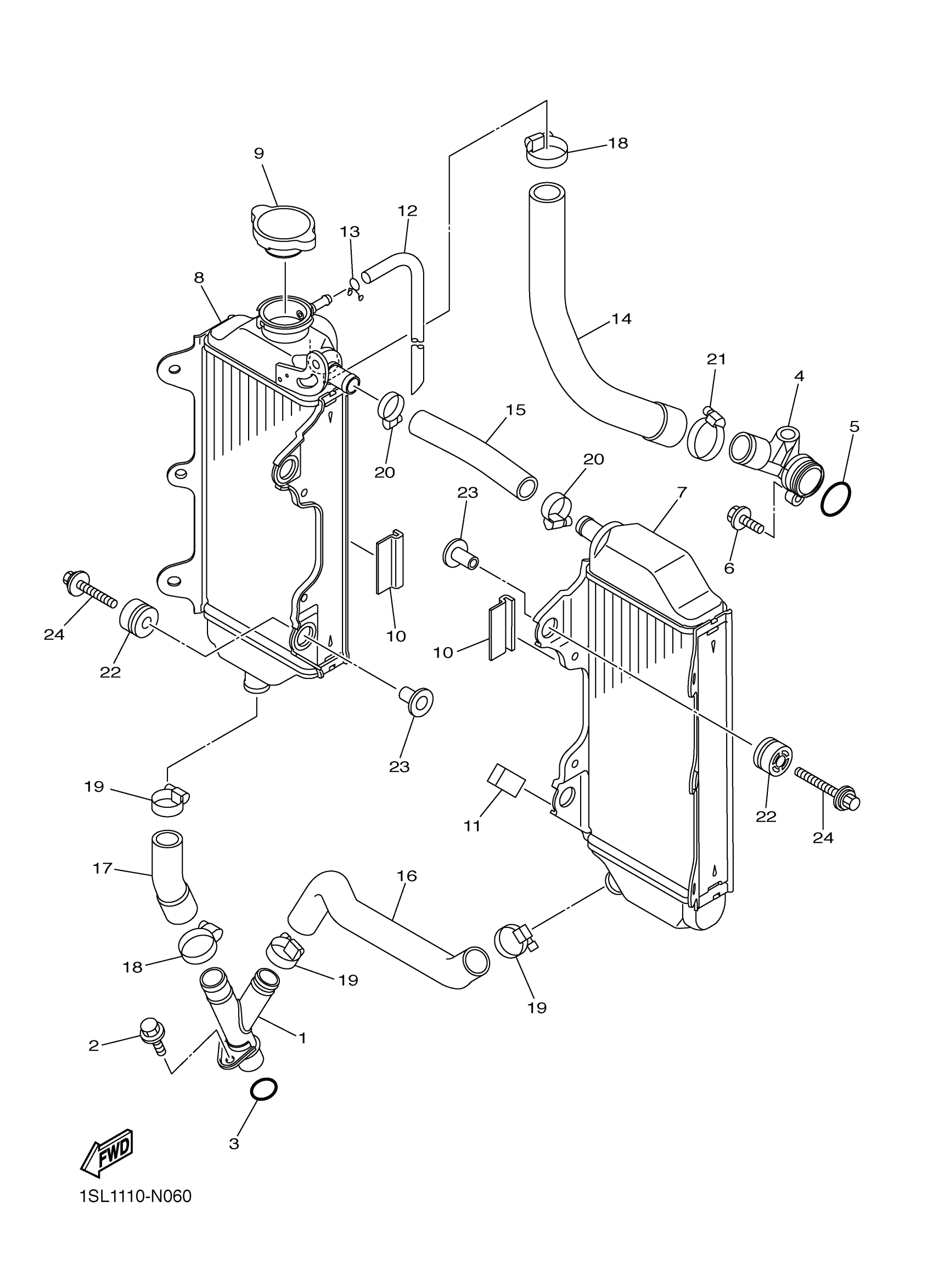

Yamaha YZ450FGY (YZ450F 60TH ANNIVERSARY) B115 2016 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

1SL-12482-00-00

$64.99

2

BOLT, FLANGE

95022-06012-00

$3.29

3

O-RING (5U8)

93210-16500-00

$7.49

4

JOINT

1SL-12446-00-00

$48.99

5

O-RING(59V)

93210-24253-00

$7.49

6

BOLT, FLANGE

95022-06020-00

$3.62

7

RADIATOR ASSY

1SL-1240A-00-00

$325.99

8

RADIATOR COMP

1SL-12461-00-00

$485.99

9

CAP, RADIATOR

5SL-12462-01-00

$29.99

10

DAMPER, RADIATOR

33D-12465-00-00

$14.49

11

DAMPER

5YT-24665-00-00

$7.99

12

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

13

CLIP

90467-090A2-00

$4.41

14

HOSE 1

1SL-12576-00-00

Unavailable

15

HOSE 2

1SL-12577-00-00

Unavailable

16

HOSE 3

1SL-12578-00-00

Unavailable

17

HOSE 4

1SL-12579-00-00

Unavailable

18

HOSE CLAMP ASSY

90450-28001-00

Unavailable

19

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

20

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

21

HOSE CLAMP ASSY

90450-32003-00

Unavailable

22

GROMMET

90480-15012-00

Unavailable

23

COLLAR

90387-06065-00

Unavailable

24

BOLT, WITH WASHER

90119-06262-00

Unavailable
