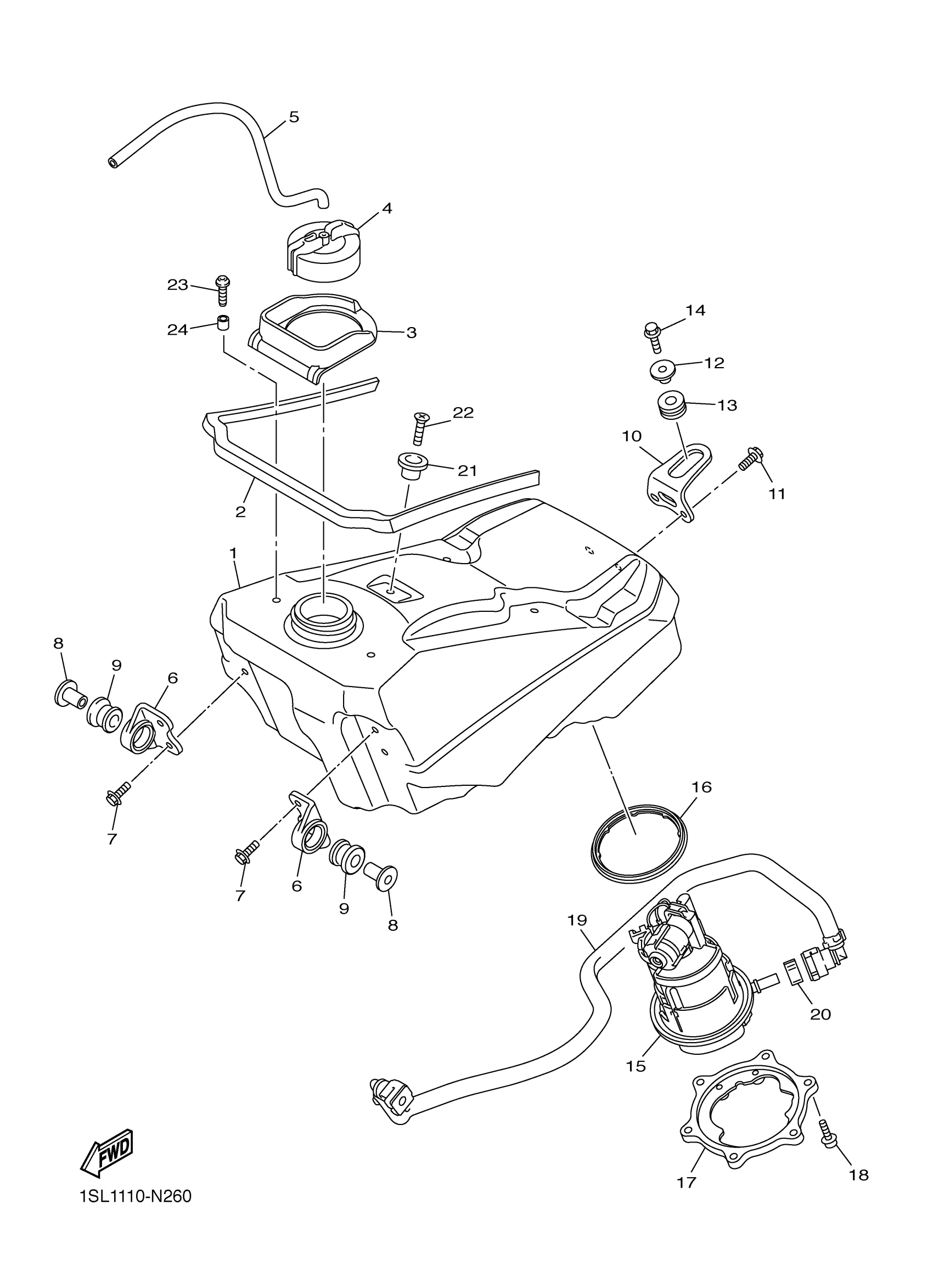

Yamaha YZ450FGY (YZ450F 60TH ANNIVERSARY) B115 2016 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1SL-24110-00-00

$635.99

2

DAMPER, PLATE 2

1S4-2414J-00-00

$2.86

3

MOLD, FUEL TANK

1SL-24188-00-00

Unavailable

4

CAP ASSY

1SL-24610-01-00

$63.99

5

HOSE

90445-098B3-00

$12.49

6

STAY, FUEL TANK 1

1SL-24115-00-00

$22.99

7

BOLT, FLANGE

90105-06170-00

$4.72

8

COLLAR

90387-06091-00

$8.49

9

GROMMET(4AA)

90480-18549-00

$10.49

10

HOLDER

1SL-2419A-00-00

$5.49

11

BOLT, FLANGE

90105-06170-00

$4.72

12

COLLAR(4BH)

90387-066Y6-00

$9.49

13

GROMMET (4N0)

90480-10289-00

$8.49

14

BOLT, FLANGE

95022-06020-00

$3.62

15

FUEL PUMP COMP.

33D-13907-02-00

$536.99

16

O-RING

33D-24486-00-00

Unavailable

17

BRACKET, FUEL PUMP

33D-24491-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-05058-00

Unavailable

19

PIPE, FUEL 1

1SL-13971-02-00

Unavailable

20

CLAMP 1

33D-24135-00-00

Unavailable

21

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

22

SCREW, FLAT

98707-06025-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-06149-00

Unavailable

24

COLLAR

90387-06284-00

Unavailable
