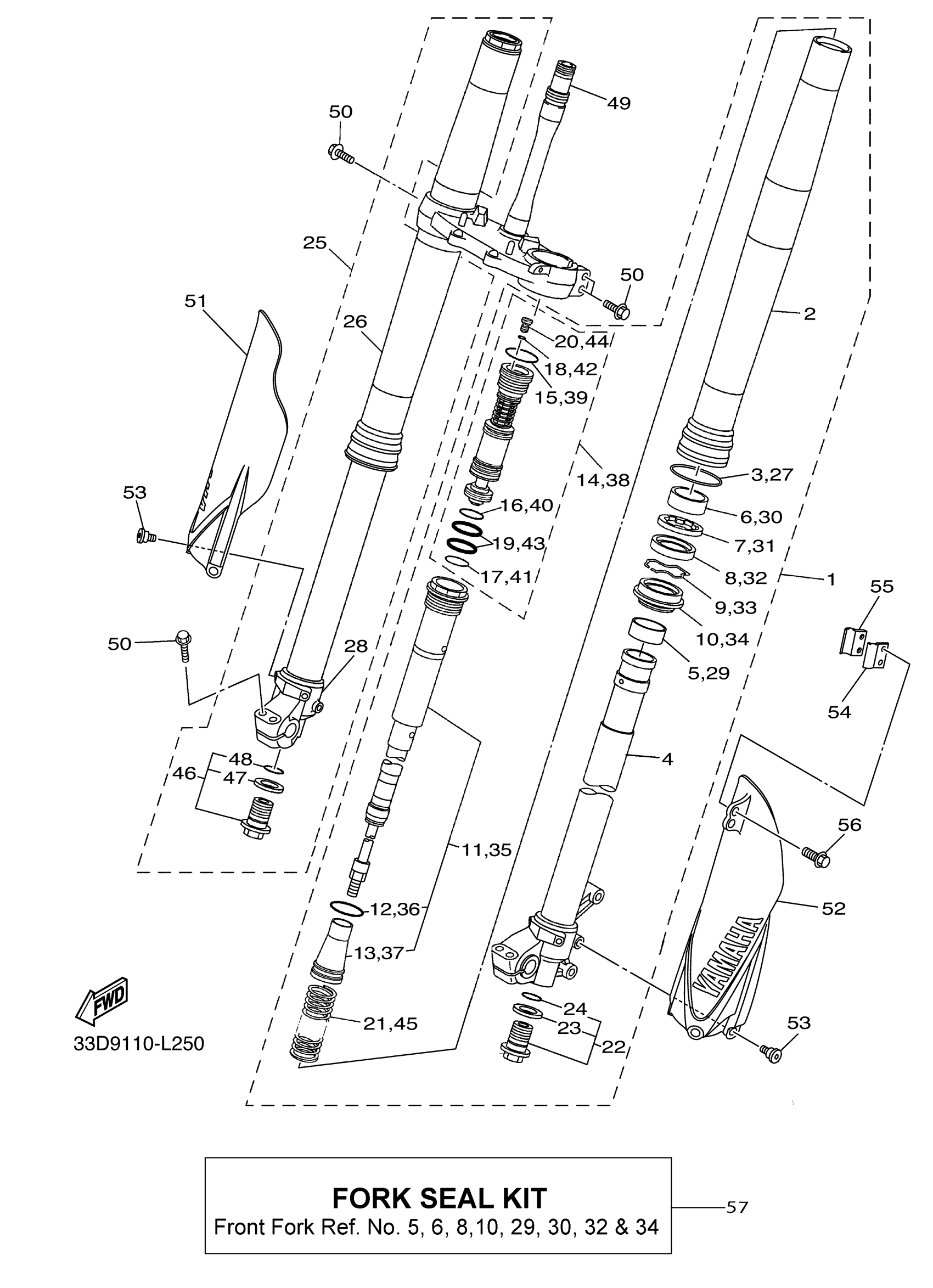

Yamaha YZ450FGY (YZ450F 60TH ANNIVERSARY) B115 2016 FRONT FORK Diagram
#
4
INNER TUBE COMP. (L.H.)
1SL-23120-00-00
Unavailable
11
CYLINDER COMP., FRONT FORK
B11-23170-00-00
Unavailable
14
VALVE COMP.
B11-2316A-00-00
Unavailable
16
O-RING
1C3-23188-N0-00
Unavailable
17
O-RING
1C3-23188-P0-00
Unavailable
18
O-RING
1C3-23188-R1-00
Unavailable
19
O-RING
1W4-23114-L0-00
Unavailable
20
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
21
SPRING, FRONT FORK
1SL-23141-90-00
Unavailable
22
BOLT, CAP
5XC-23111-01-00
Unavailable
23
GASKET
2HH-23158-L0-00
Unavailable
24
GASKET
276-23114-01-00
Unavailable
25
FRONT FORK ASSY (R.H)
B11-23103-00-00
Unavailable
28
INNER TUBE COMP. (R.H.)
1SL-23110-00-00
Unavailable
35
CYLINDER COMP., FRONT FORK
B11-23170-00-00
Unavailable
38
VALVE COMP.
B11-2316A-00-00
Unavailable
40
O-RING
1C3-23188-N0-00
Unavailable
41
O-RING
1C3-23188-P0-00
Unavailable
42
O-RING
1C3-23188-R1-00
Unavailable
43
O-RING
1W4-23114-L0-00
Unavailable
44
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
45
SPRING, FRONT FORK
1SL-23141-90-00
Unavailable
46
BOLT, CAP
5XC-23111-01-00
Unavailable
47
GASKET
2HH-23158-L0-00
Unavailable
48
GASKET
276-23114-01-00
Unavailable
49
UNDER BRACKET COMP.
B11-23340-00-00
Unavailable
50
BOLT, FLANGE
90105-08154-00
Unavailable
51
PROTECTOR 2
17D-2315J-50-00
Unavailable
52
PROTECTOR 1
17D-2315H-50-00
Unavailable
53
BOLT
90109-06232-00
Unavailable
54
CLAMP
17D-23466-00-00
Unavailable
55
CLAMP
17D-23467-00-00
Unavailable
56
BOLT, FLANGE
90105-06170-00
Unavailable
57
FORK SEAL KIT (TWO FORKS)
17D-W003B-00-00
Unavailable
