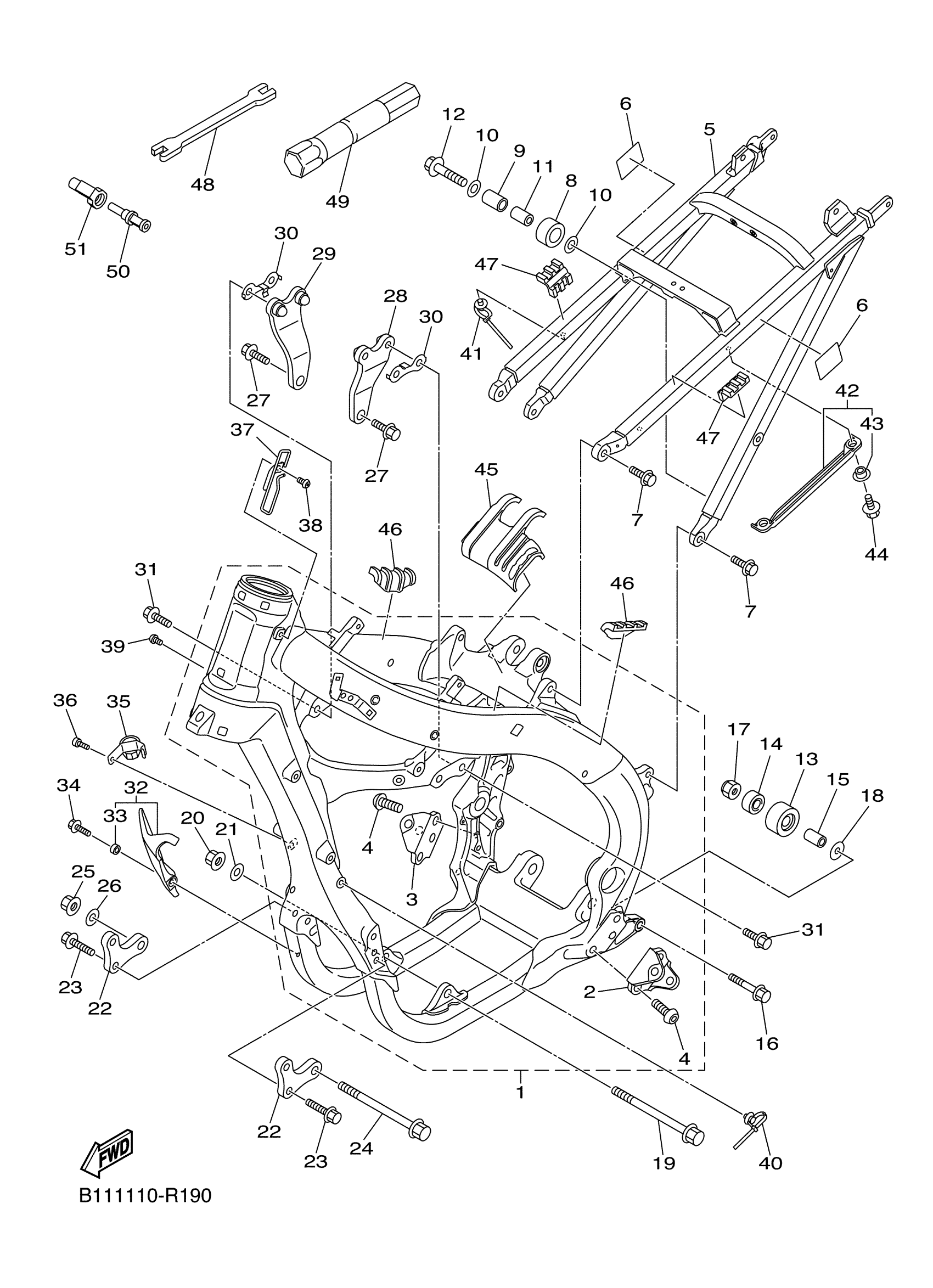

Yamaha YZ450FGY (YZ450F 60TH ANNIVERSARY) B115 2016 FRAME Diagram
#
1
FRONT FRAME COMP.
B11-21101-01-00
Unavailable
16
BOLT, FLANGE
90105-08232-00
Unavailable
17
NUT, U
95617-08100-00
Unavailable
18
WASHER, PLATE
90201-08043-00
Unavailable
19
BOLT, FLANGE
90105-10176-00
Unavailable
20
NUT(4KG)
90179-10658-00
Unavailable
21
WASHER, PLATE
90201-10045-00
Unavailable
22
BRACKET, FRONT LOW
1SL-21417-10-00
Unavailable
23
BOLT, FLANGE
90105-08143-00
Unavailable
24
BOLT, FLANGE
90105-10193-00
Unavailable
25
NUT(4KG)
90179-10658-00
Unavailable
26
WASHER, PLATE
90201-10045-00
Unavailable
27
BOLT, FLANGE
90105-10189-00
Unavailable
28
BRACKET, REAR UPPER 1
B11-21425-00-00
Unavailable
29
BRACKET, REAR UPPER 2
B11-21426-00-00
Unavailable
30
PLATE, PATCH
B11-21456-00-00
Unavailable
31
BOLT, FLANGE
90105-08143-00
Unavailable
32
PROTECTOR, ENGINE
1SL-21471-00-00
Unavailable
33
COLLAR
90387-06106-00
Unavailable
34
BOLT, FLANGE
90105-06203-00
Unavailable
35
CLAMP, WIRE HARNESS 1
1SL-21335-01-00
Unavailable
36
BOLT
91312-05008-00
Unavailable
37
HOLDER, CLUTCH CAB
1SL-21163-01-00
Unavailable
38
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
39
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
40
CLAMP
90464-31002-00
Unavailable
41
CLAMP
90464-31002-00
Unavailable
42
COVER, SIDE 5
1SL-2171E-00-00
Unavailable
43
COLLAR
90387-065T2-00
Unavailable
44
BOLT, FLANGE
95022-06016-00
Unavailable
45
DAMPER, LOCATING 1
1SL-24181-00-00
Unavailable
46
DAMPER, LOCATING 2
33D-24182-00-00
Unavailable
47
DAMPER, LOCATING 3
33D-24183-00-00
Unavailable
48
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
49
BOX, SPARK PLUG
5SL-2814F-00-00
Unavailable
50
CAP
18P-2467E-00-00
Unavailable
51
CASE, CAP
18P-2464V-01-00
Unavailable
