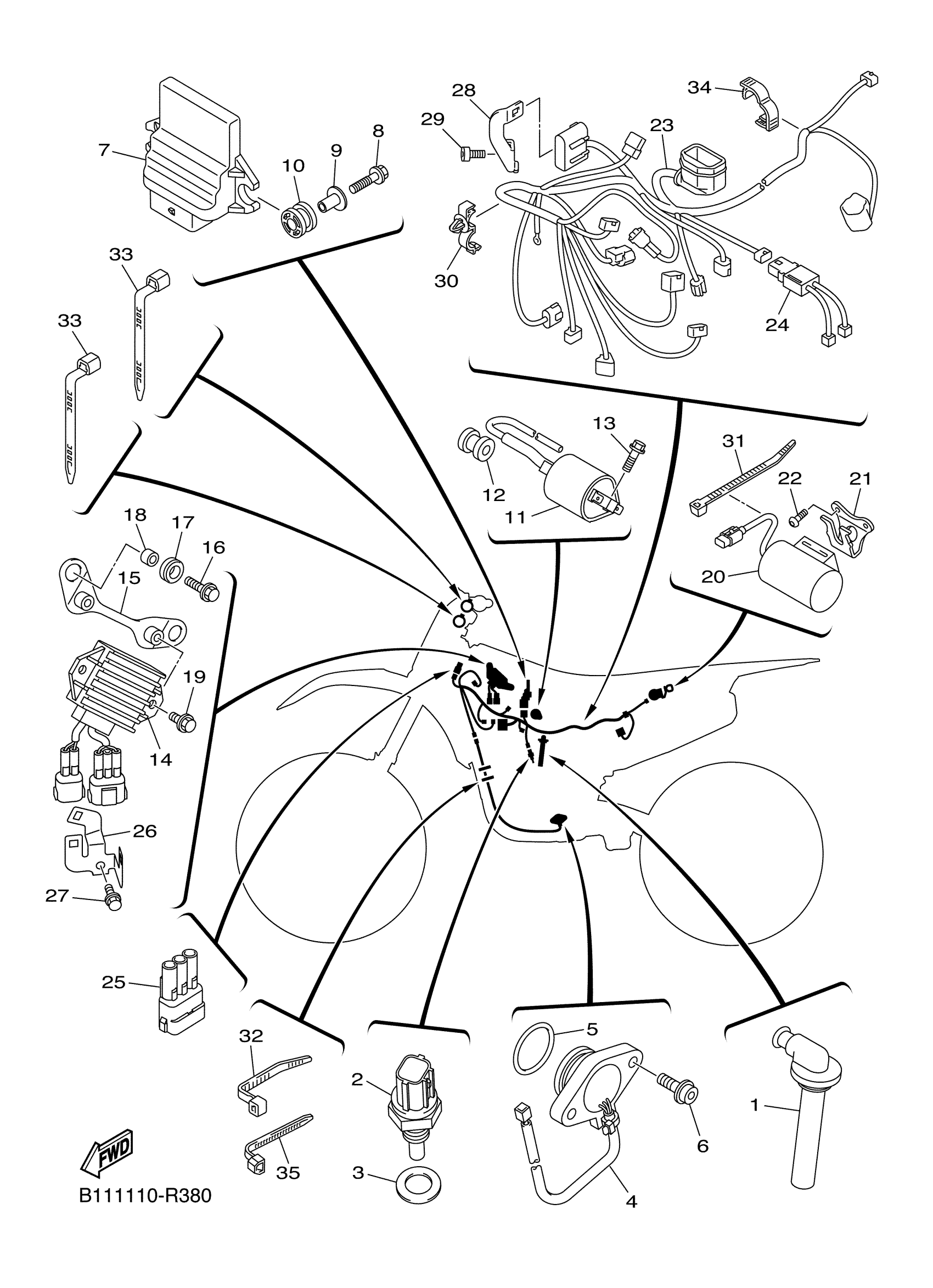

Yamaha YZ450FGY (YZ450F 60TH ANNIVERSARY) B115 2016 ELECTRICAL 1 Diagram

#

Description
Price

1

PLUG CAP ASSY

33D-82370-00-00

$111.99

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

GASKET

90430-10004-00

$7.49

4

NEUTRAL SWITCH ASSY

B11-82540-01-00

$60.99

5

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$8.49

6

O-RING

93210-21001-00

$5.60

7

ENGINE CONTROL UNIT ASSY

B11-8591A-00-00

$521.99

8

BOLT, FLANGE

90105-05005-00

$1.20

9

COLLAR

90387-05048-00

$5.60

10

GROMMET

90480-13029-00

$5.60

11

IGNITION COIL ASSY

1SL-82310-03-00

$44.99

12

GROMMET

90480-11015-00

$3.66

13

BOLT, FLANGE

95022-06016-00

$3.62

14

RECTIFIER & REGULATOR ASSY

1SL-81960-00-00

$151.99

15

BRACKET, REGULATOR

1SL-21287-00-00

Unavailable

16

BOLT, FLANGE

90105-06203-00

Unavailable

17

GROMMET

90480-13025-00

Unavailable

18

COLLAR (8H6)

90387-07573-00

Unavailable

19

BOLT, FLANGE

90105-06064-00

Unavailable

20

CONDENSER, SMOOTHING

1SL-81965-00-00

Unavailable

21

BRKT. CONDENSER

1SL-21273-00-00

Unavailable

22

BOLT, BUTTON

92017-05012-00

Unavailable

23

WIRE HARNESS ASSY

B11-82590-00-00

Unavailable

24

WIRE, SUB LEAD

1SL-82309-00-00

Unavailable

25

CONNECTOR

33D-82378-00-00

Unavailable

26

PLATE

B11-82388-00-00

Unavailable

27

BOLT, FLANGE

90105-06110-00

Unavailable

28

PLATE 2

1SL-82389-00-00

Unavailable

29

BOLT

91380-06012-00

Unavailable

30

CLAMP

90464-17003-00

Unavailable

31

BAND

1UA-82591-00-00

Unavailable

32

CLAMP

90465-10098-00

Unavailable

33

CLAMP(4FM)

90464-15195-00

Unavailable

34

CLAMP

90464-18004-00

Unavailable

35

CLAMP(4FM)

90464-15195-00

Unavailable
