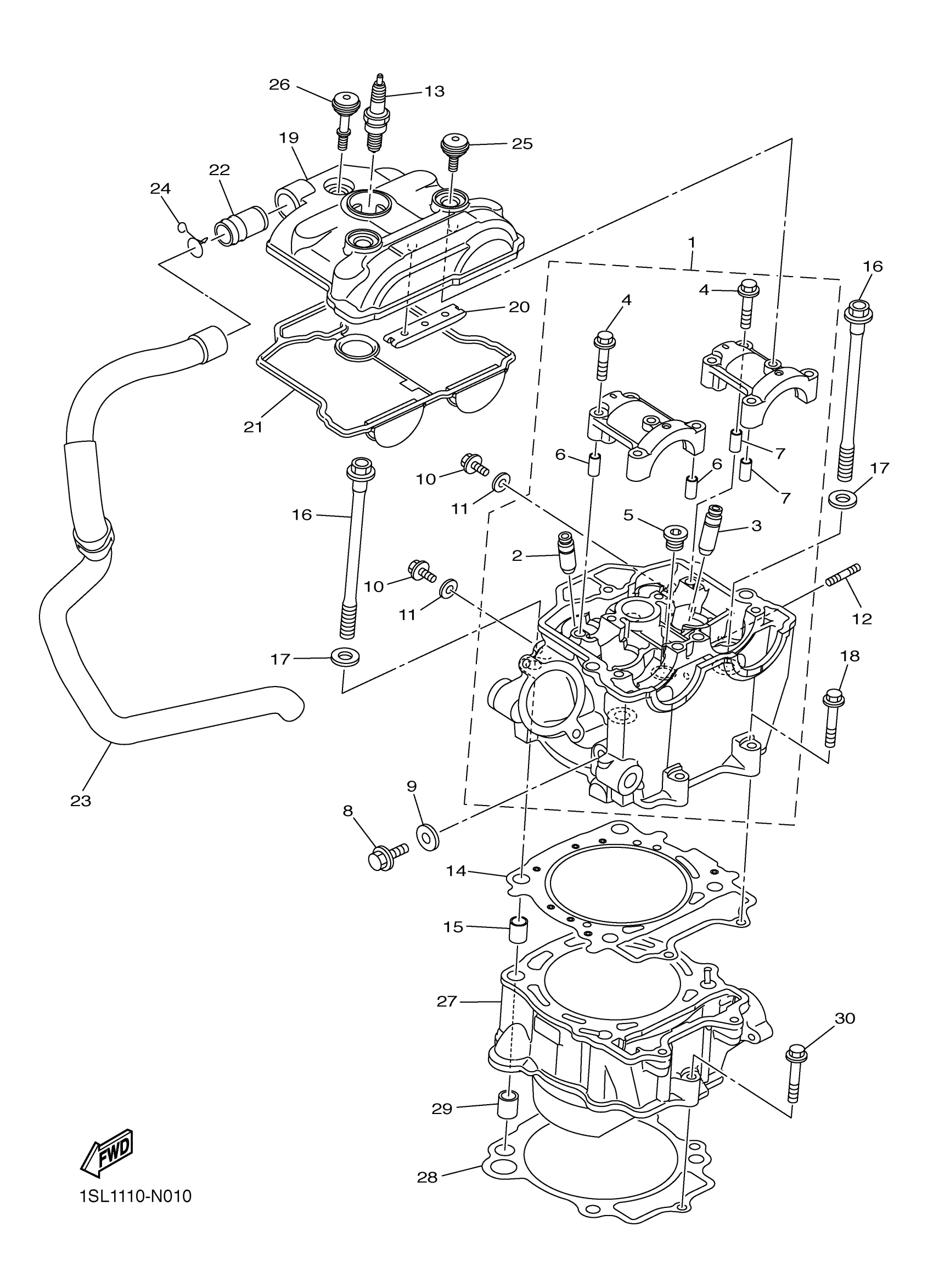

Yamaha YZ450FGY (YZ450F 60TH ANNIVERSARY) B115 2016 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1SL-11102-00-00

$859.99

2

GUIDE, VALVE 1

5PS-11133-10-00

$49.99

3

GUIDE, VALVE 2

5PS-11134-10-00

$71.99

4

BOLT, WASHER BASED

90105-06027-00

$7.49

5

PLUG, STRAIGHT SCREW

90340-12007-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BOLT, FLANGE

95022-08012-00

$12.49

9

GASKET

90430-08119-00

$6.62

10

BOLT, FLANGE

95022-06010-00

$5.60

11

GASKET 256113960000

90430-06014-00

Unavailable

12

BOLT, STUD

90116-06037-00

$3.93

13

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

13

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

14

GASKET, CYLINDER HEAD 1

33D-11181-00-00

$50.99

15

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

16

BOLT, FLANGE

90105-10367-00

Unavailable

17

WASHER, PLATE

90201-10025-00

Unavailable

18

BOLT, FLANGE

95022-06035-00

Unavailable

19

COVER, CYLINDER HEAD 1

33D-11190-29-00

Unavailable

20

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

21

GASKET, HEAD COVER 1

33D-11193-01-00

Unavailable

22

. PIPE, BREATHER 2

341-11167-00-00

Unavailable

23

PIPE, BREATHER 1

1SL-11166-00-00

Unavailable

24

CLIP

90467-20M15-00

Unavailable

25

BOLT, COVER HEAD

5UM-1119E-00-00

Unavailable

26

BOLT, COVER HEAD

33D-1119E-00-00

Unavailable

27

CYLINDER 1

1SL-11311-00-00

Unavailable

28

GASKET, CYLINDER

1SL-11351-00-00

Unavailable

29

PIN, DOWEL

99530-14016-00

Unavailable

30

BOLT, FLANGE

95022-06035-00

Unavailable
