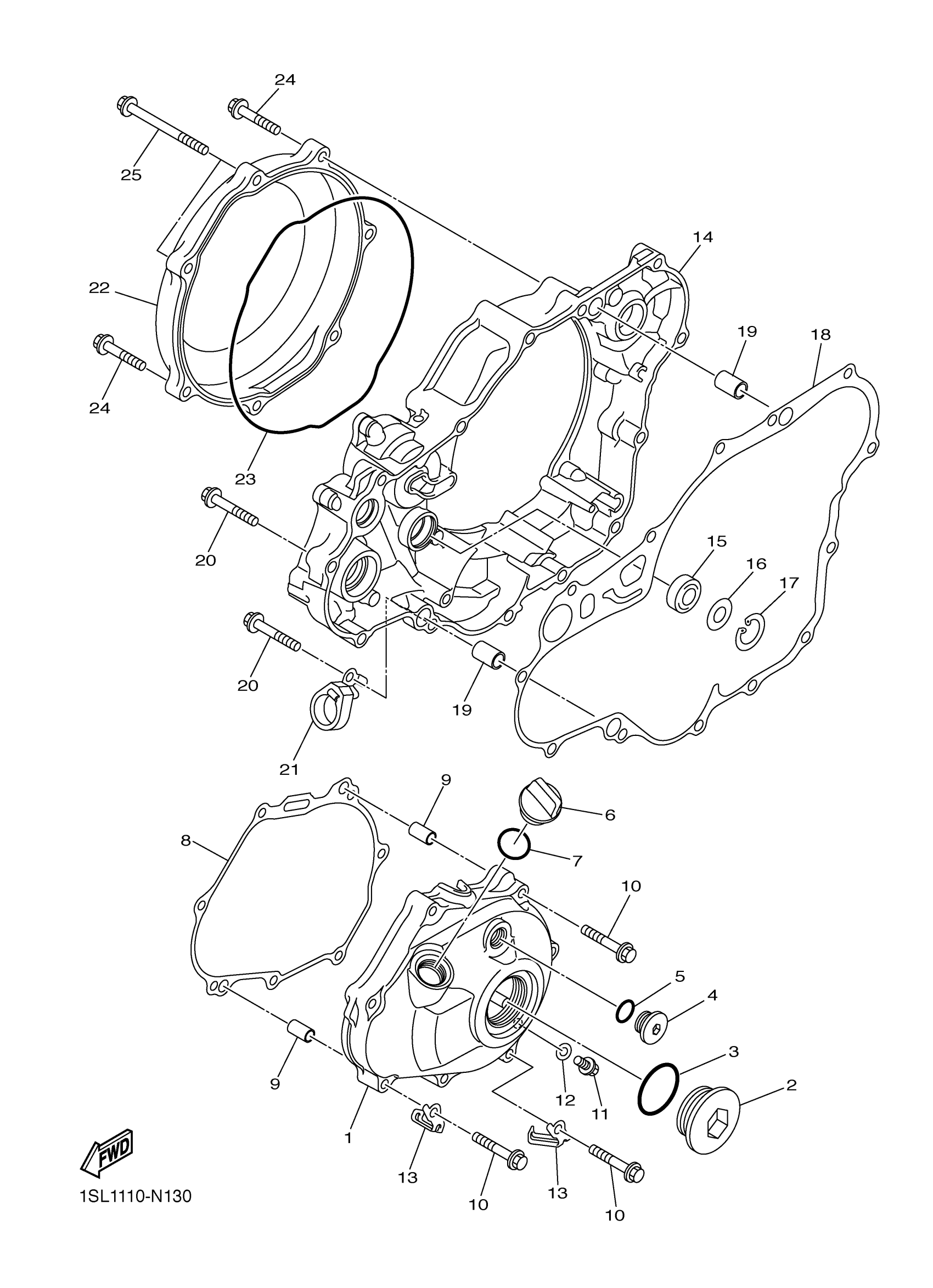

Yamaha YZ450FGY (YZ450F 60TH ANNIVERSARY) B115 2016 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1SL-15411-00-00

$94.94

2

PLUG, STRAIGHT SCREW

90340-36002-00

$12.48

3

O-RING

93210-35804-00

$0.46

4

PLUG, STRAIGHT SCREW

90340-14011-00

$18.40

5

O-RING (2H9)

93210-14369-00

$5.42

6

PLUG, OIL

3Y1-15363-10-00

$15.94

7

O-RING (646)

93210-19123-00

Unavailable

8

GASKET, CRANKCASE COVER 1

1SL-15451-00-00

$10.41

9

PIN, DOWEL(3XW)

91808-16023-00

$5.26

10

BOLT, FLANGE

95022-06030-00

$1.31

11

BOLT, FLANGE

95022-06012-00

$2.80

12

GASKET 256113960000

90430-06014-00

Unavailable

13

CLAMP

90465-08062-00

$3.45

14

COVER, CRANKCASE 3

1SL-15431-00-00

Unavailable

15

OIL SEAL(4GY)

93101-14164-00

$9.05

16

WASHER (566)

90201-15701-00

Unavailable

17

CIRCLIP

99009-22500-00

Unavailable

18

GASKET, CRANKCASE COVER 3

1SL-15462-00-00

Unavailable

19

PIN, DOWEL

99530-12016-00

Unavailable

20

BOLT, FLANGE

95022-06030-00

$1.31

21

HOLDER

1SL-15378-00-00

Unavailable

22

COVER, GENERATOR

33D-15415-10-00

Unavailable

23

GASKET

33D-15453-00-00

Unavailable

24

BOLT, FLANGE

95022-06025-00

Unavailable

25

BOLT, FLANGE

95022-06070-00

Unavailable
