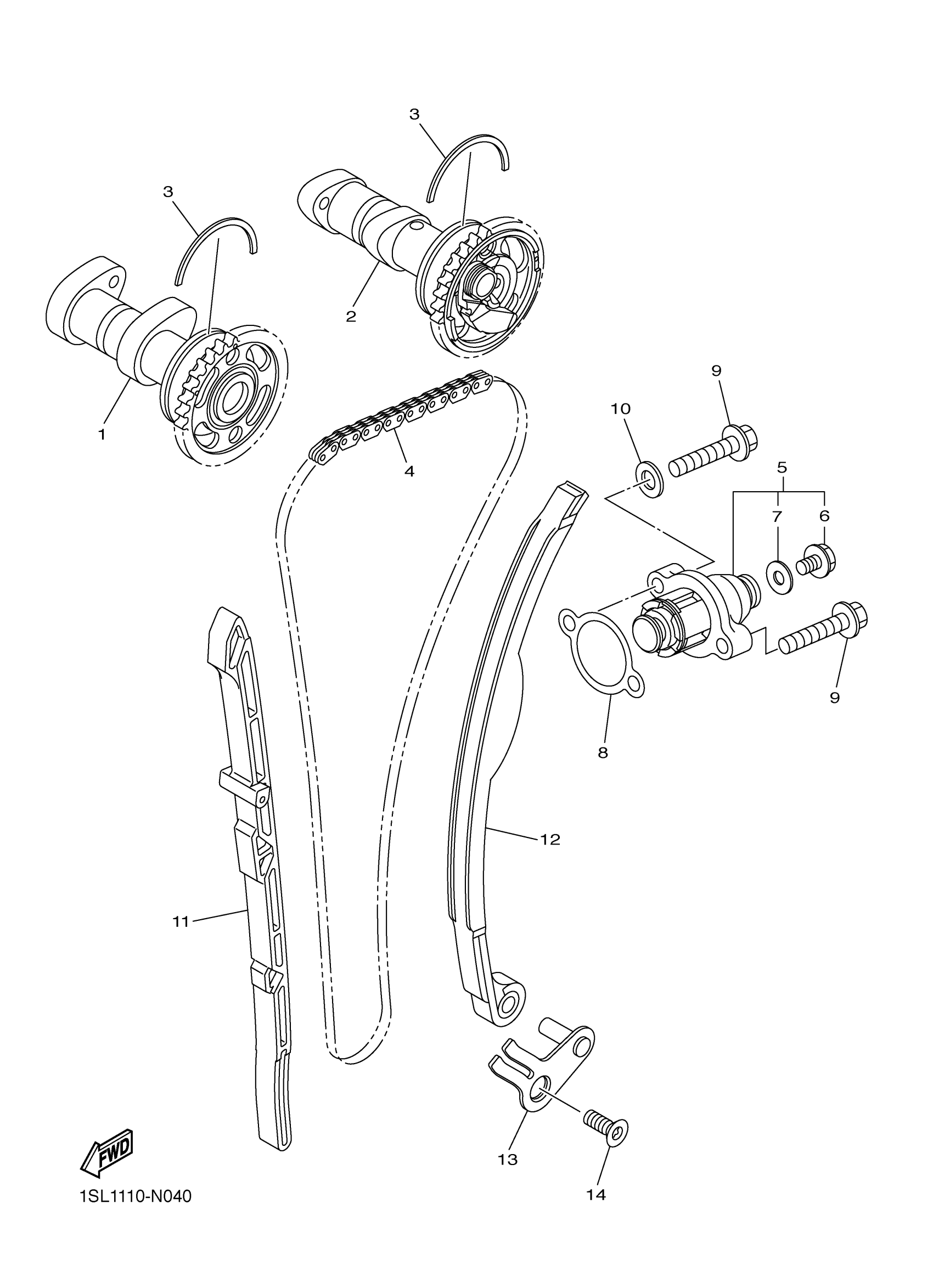

Yamaha YZ450FFW (YZ450F) 1SL50 2015 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1SL-12170-00-00

$259.99

2

CAMSHAFT ASSY 2

1SL-12180-00-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.98

4

CHAIN

94591-57122-00

$36.99

5

TENSIONER ASSY, CAM CHAIN

5TA-12210-30-00

$128.99

6

BOLT

5EL-12228-00-00

$5.49

7

GASKET

5EL-12214-00-00

$7.99

8

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

9

BOLT, FLANGE

90105-06148-00

$8.49

10

GASKET 256113960000

90430-06014-00

Unavailable

11

DAMPER, CHAIN 1

33D-12251-00-00

$34.99

12

DAMPER, CHAIN 2

33D-12252-01-00

Unavailable

13

PLATE, GUIDE STOPPER 1

1SL-12233-00-00

$32.99

14

SCREW, COUNTERSUNK

90151-06023-00

$8.49
