Description

Price

1

KICK SHAFT ASSY

2S2-15601-00-00

Unavailable

2

WASHER, PLATE (2K7)

90201-20685-00

$7.49

3

CIRCLIP (525)

93410-20038-00

$3.76

4

WHEEL, RATCHET

2S2-15671-00-00

Unavailable

5

SPRING, COMPRESSION

90501-160A2-00

$7.49

6

WASHER, PLATE(4GL)

90201-167P7-00

$9.49

7

CIRCLIP(13T)

99009-16400-00

$5.60

8

GUIDE, SPRING

5GR-15664-00-00

$28.99

9

SPRING, TORSION

90508-305B0-00

$14.99

10

GUIDE, RATCHET WHEEL

3Y6-15674-00-00

Unavailable

11

STOPPER

2NX-15668-00-00

$24.99

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

OIL SEAL (20X30X7-371)

93102-20108-00

$11.49

14

GEAR, KICK IDLE

5TA-15651-00-00

$127.99

15

WASHER, PLATE (2K7)

90201-20685-00

$7.49

16

CIRCLIP(1AR)

99009-20400-00

Unavailable

17

KICK CRANK ASSY

1SL-15620-00-00

Unavailable

18

BOSS, KICK CRANK

1SL-15621-00-00

Unavailable

19

SPRING, COMPRESSION

90501-147A5-00

Unavailable

20

BALL (12R)

93507-32031-00

Unavailable

21

SCREW, COUNTERSUNK

90151-06045-00

Unavailable

22

O-RING(36Y)

93210-17570-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-08097-00

Unavailable

24

WASHER, PLATE

90201-08047-00

Unavailable

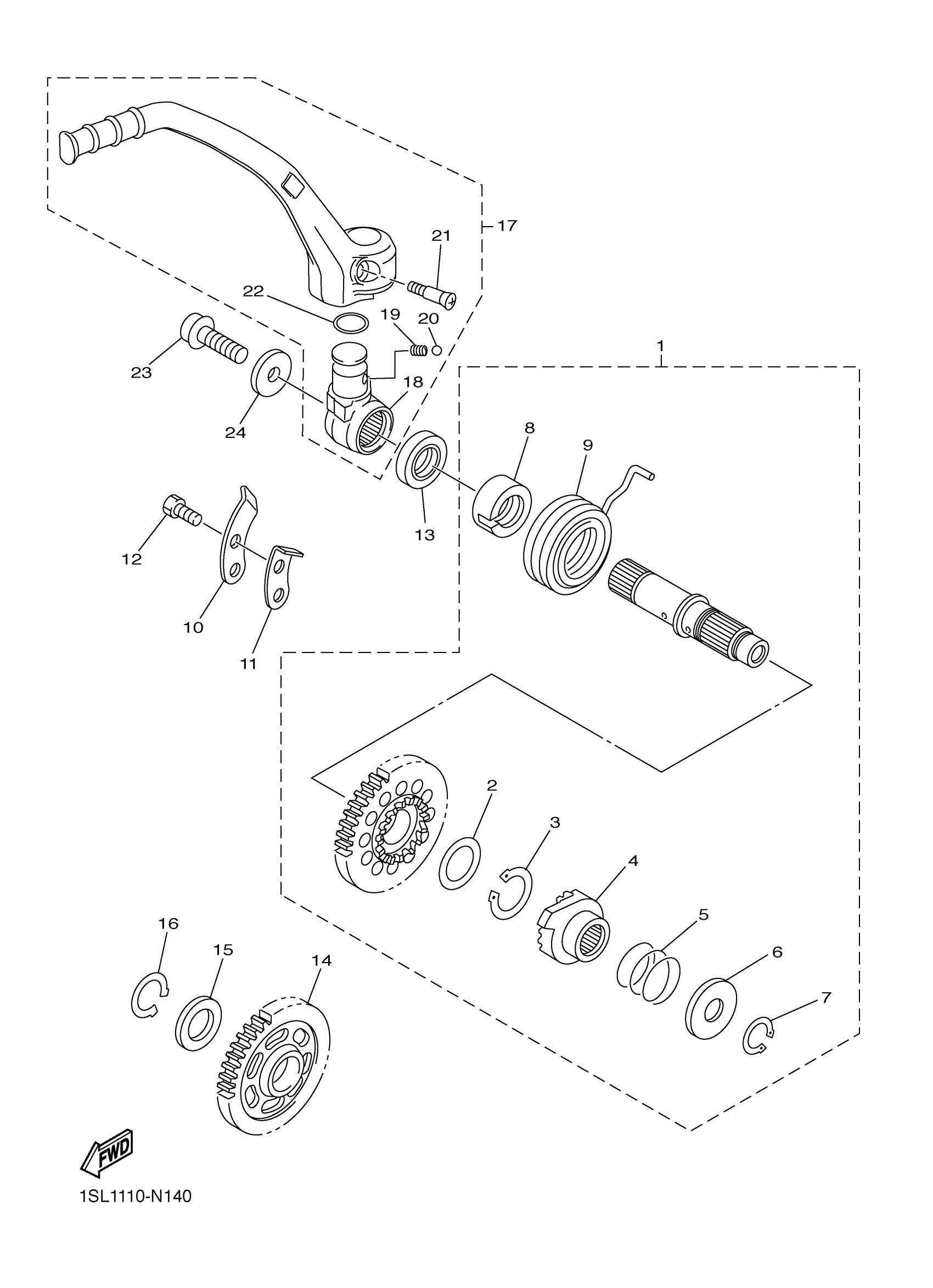

Yamaha YZ450FEW (YZ450F) 1SL10 2014 STARTER Diagram

KICK SHAFT ASSY

WASHER, PLATE (2K7)

CIRCLIP (525)

WHEEL, RATCHET

SPRING, COMPRESSION

WASHER, PLATE(4GL)

CIRCLIP(13T)

GUIDE, SPRING

SPRING, TORSION

GUIDE, RATCHET WHEEL

STOPPER

BOLT, HEXAGON DEEP RECESS

OIL SEAL (20X30X7-371)

GEAR, KICK IDLE

WASHER, PLATE (2K7)

CIRCLIP(1AR)

KICK CRANK ASSY

BOSS, KICK CRANK

SPRING, COMPRESSION

BALL (12R)

SCREW, COUNTERSUNK

O-RING(36Y)

BOLT, HEXAGON SOCKET HEAD

WASHER, PLATE
