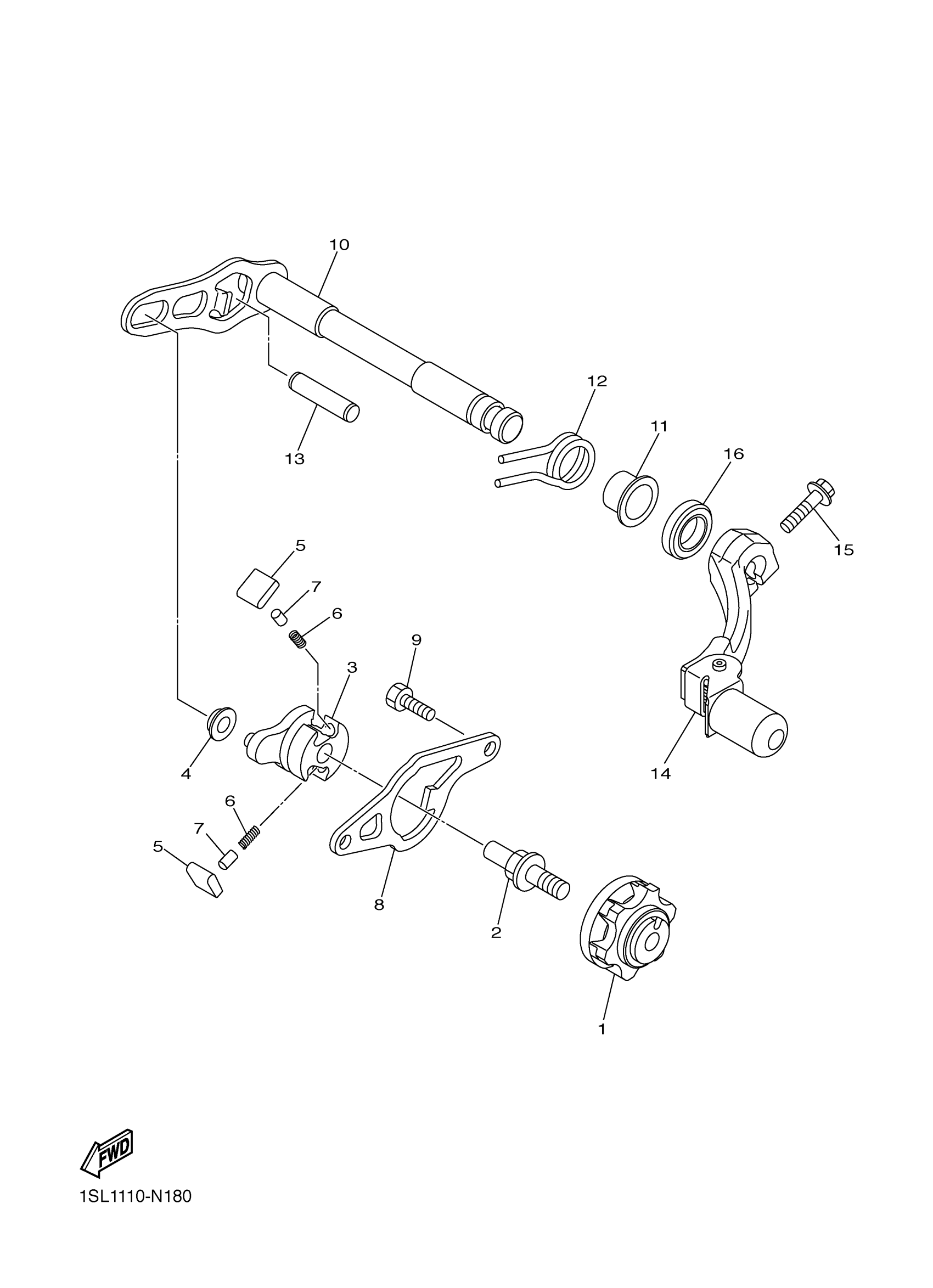

Yamaha YZ450FEW (YZ450F) 1SL10 2014 SHIFT SHAFT Diagram

Description

Price

SEGMENT

2GB-18185-00-00

$28.99

PIN, SHIFT

3XJ-18173-10-00

$19.99

LEVER, SHIFT 2

1SL-18122-10-00

$69.99

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

PIN, PAWL

3XJ-18184-00-00

$15.49

GUIDE, SHIFT

1SL-18172-00-00

$17.49

BOLT

90101-06042-00

$5.60

SHIFT SHAFT ASSY

1SL-18101-00-00

Unavailable

COLLAR

90387-14020-00

$7.49

SPRING, TORSION

90508-29023-00

$4.41

PIN, DOWEL

93608-33002-00

$15.99

SHIFT PEDAL ASSY

1SM-18110-10-00

$129.99

BOLT, FLANGE

90105-06148-00

$8.49

OIL SEAL (14X24X6-256)

93109-14010-00

Unavailable
